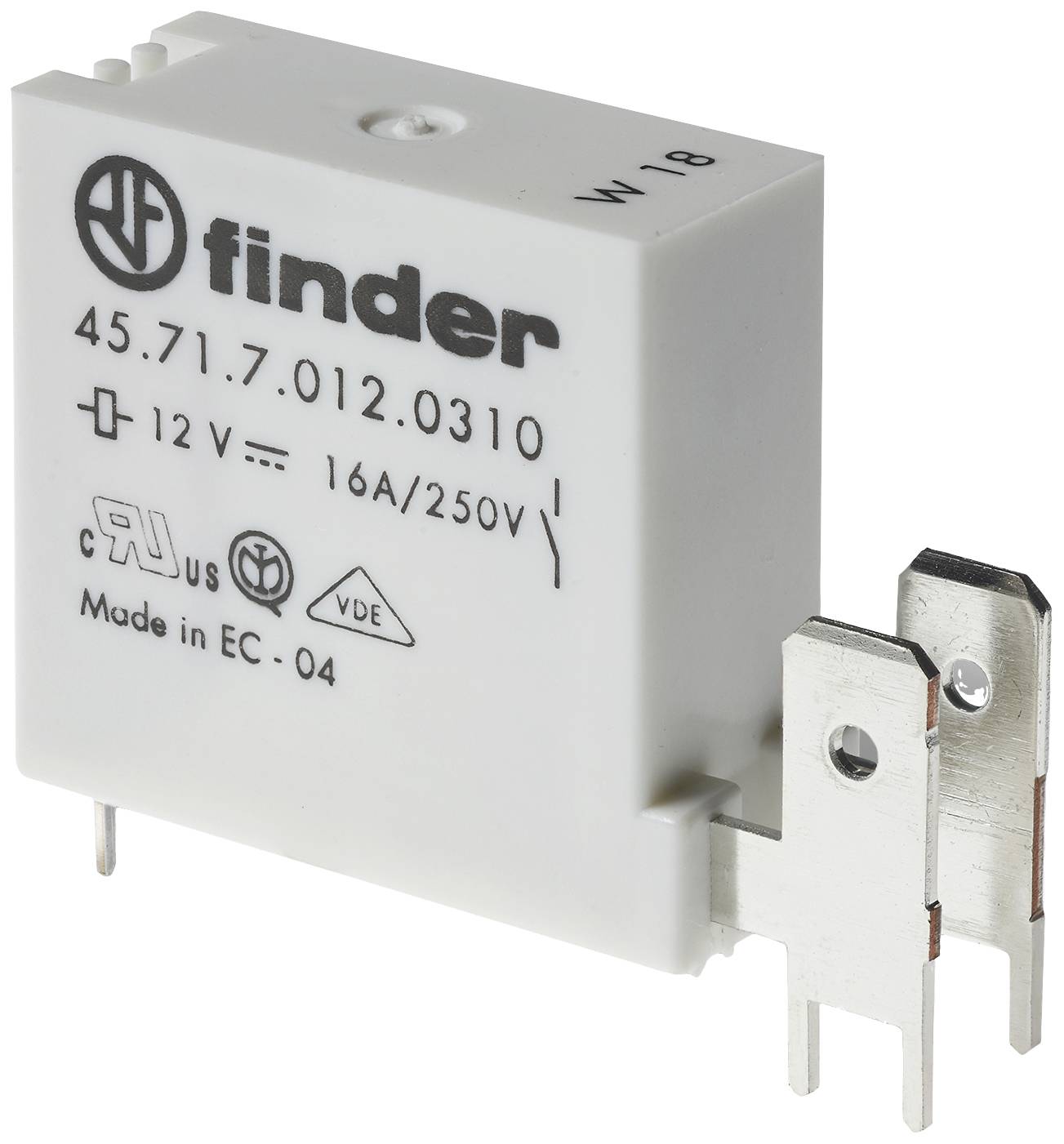

Finder 45.71.7.012.1310 PCB relay 12 V DC 16 A 1 maker 1 pc(s)
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
1 maker
Switching voltage (max.)
250 V AC
EAN:
Part number:
Item no:
Technical specifications
- Product type
PCB relay
- Type
45.71.7.012.1310
- Coil nominal voltage
12 V DC
- Control mode
monostable, 1 coil
- Coil voltage rating
0.36 W
- Contact type
1 maker
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Print
IP40
- Max. temperature
125 °C
- Width
12.5 mm
- Height
28.5 mm
- Depth
40.7 mm
- Dim
(W x H x D) 12.5 x 28.5 x 40.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
12.5 mm
28.5 mm
40.7 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
12-12 V
Untreated
IP40
FALSE
Other
DC
0
1
0
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219320 Finder 45.71.7.012.1310 PCB relay 12 V DC 16 A 1 maker 1 pc(s)
Description
Power/PCB relay with Faston 250, 1 closer for 16 A / 250 V AC, contact material AgNi, coil data 12 V DC, 0.36 W, 400 Ohm, relay protection type RT II, high-temperature version 125° C
