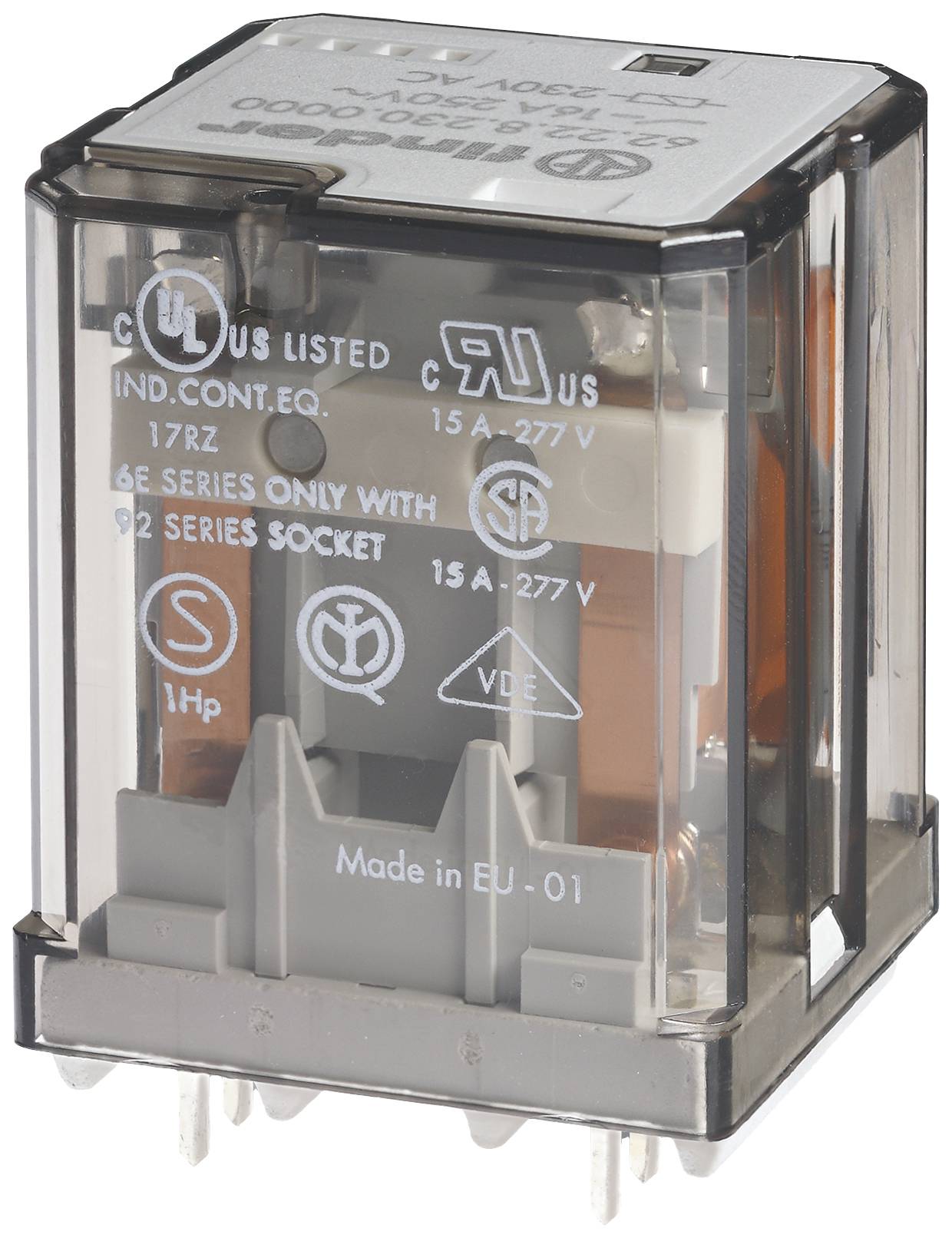

Finder 62.22.9.024.4300 PCB relay 24 V DC 16 A 2 makers 1 pc(s)
Product type
PCB relay
Coil nominal voltage
24 V DC
Control mode
monostable, 1 coil
Contact type
2 makers
Switching voltage (max.)
250 V AC
EAN:
Part number:
Item no:
Technical specifications
- Product type
PCB relay
- Type
62.22.9.024.4300
- Coil nominal voltage
24 V DC
- Control mode
monostable, 1 coil
- Coil voltage rating
1.3 W
- Contact type
2 makers
- Contact material
AgSnO2
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Print
IP20
- Width
38.2 mm
- Height
47.6 mm
- Depth
35.8 mm
- Dim
(W x H x D) 38.2 x 47.6 x 35.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
38.2 mm
47.6 mm
35.8 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
PCB connection
24-24 V
Untreated
IP20
FALSE
Other
DC
0
2
0
Thermoplastic
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219299 Finder 62.22.9.024.4300 PCB relay 24 V DC 16 A 2 makers 1 pc(s)
Description
PCB contactor 2 normally open contact for 16 A/250 V AC, contact material AgSnO2, coil data 24 V DC, 1.3 W, 445 ohms, relay protection mode: RT I
