Fischer 40946 FBN II 10/5 K Cavity fixing 71 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Fischer-bolt
Our service for you
Technical specifications
- (Ø)
10 mm
- Product type
Cavity fixing
- Material
Steel
- Length
71 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 71 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477605 Fischer 40946 FBN II 10/5 K Cavity fixing 71 mm 10 mm 50 pc(s)
Description

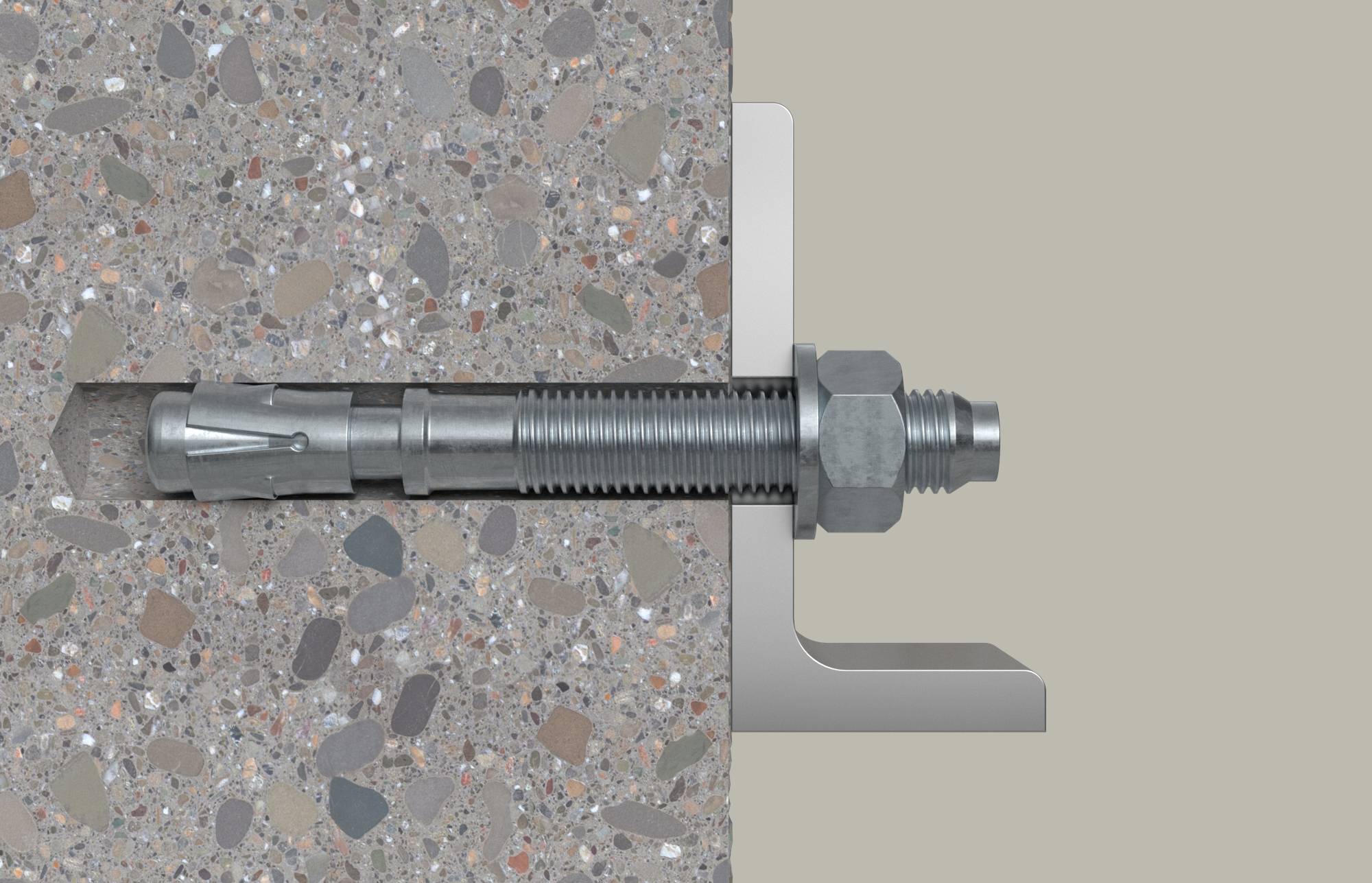

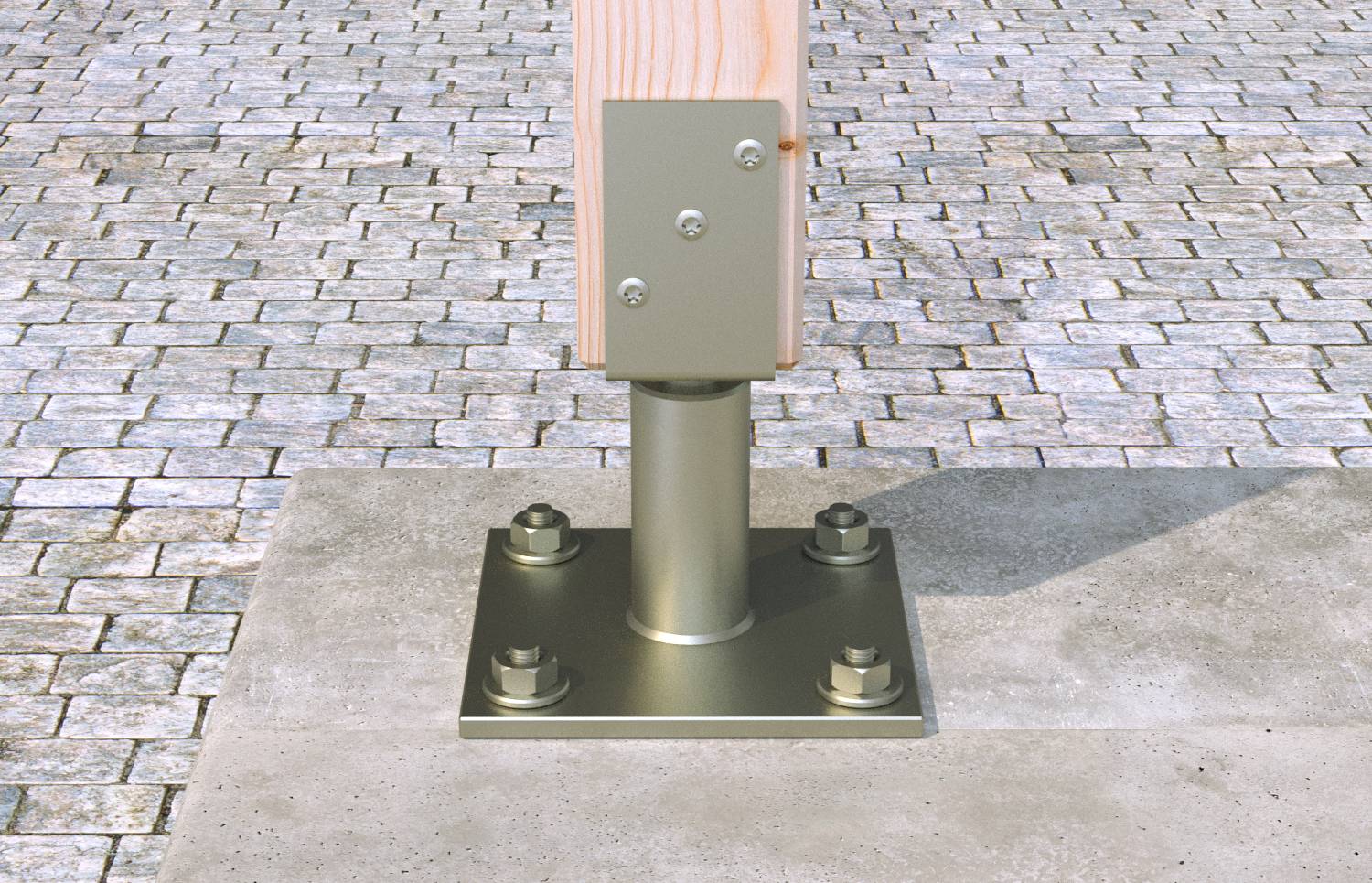

The fishermen anchor bolt FBN II K is a steel anchor for economic attachments in ungerissenem concrete. In the short version, it is for the pre-mounted and through hole mounting. From electro-galvanised is the bolt anchor for balustrades, handrails or consoles in the inner area is recommended.
This text is machine translated.
This text is machine translated.
Features
- Easy mounting through a few hammer blows and minimum slip
- Impact Peg Protects threads from damage. This saves time when you assemble and dismantle
- The highest load capacity in ungerissenem concrete. This means: less fixing points and smaller anchor plates.
