Fischer 44392 DHT S Screw mount 65 mm Nylon 500 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length: 40 - 50 mm
- Shaft length: 20 mm
- Min. Anchoring depth: 25 mm
- Pad diameter: 50 mm
- Product type
Screw mount
- Material
Nylon
- (Ø)
50 mm
- Length
65 mm
- Dim
(Ø x L) 50 mm x 65 mm
- Content
500 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 477676 Fischer 44392 DHT S Screw mount 65 mm Nylon 500 pc(s)
Description

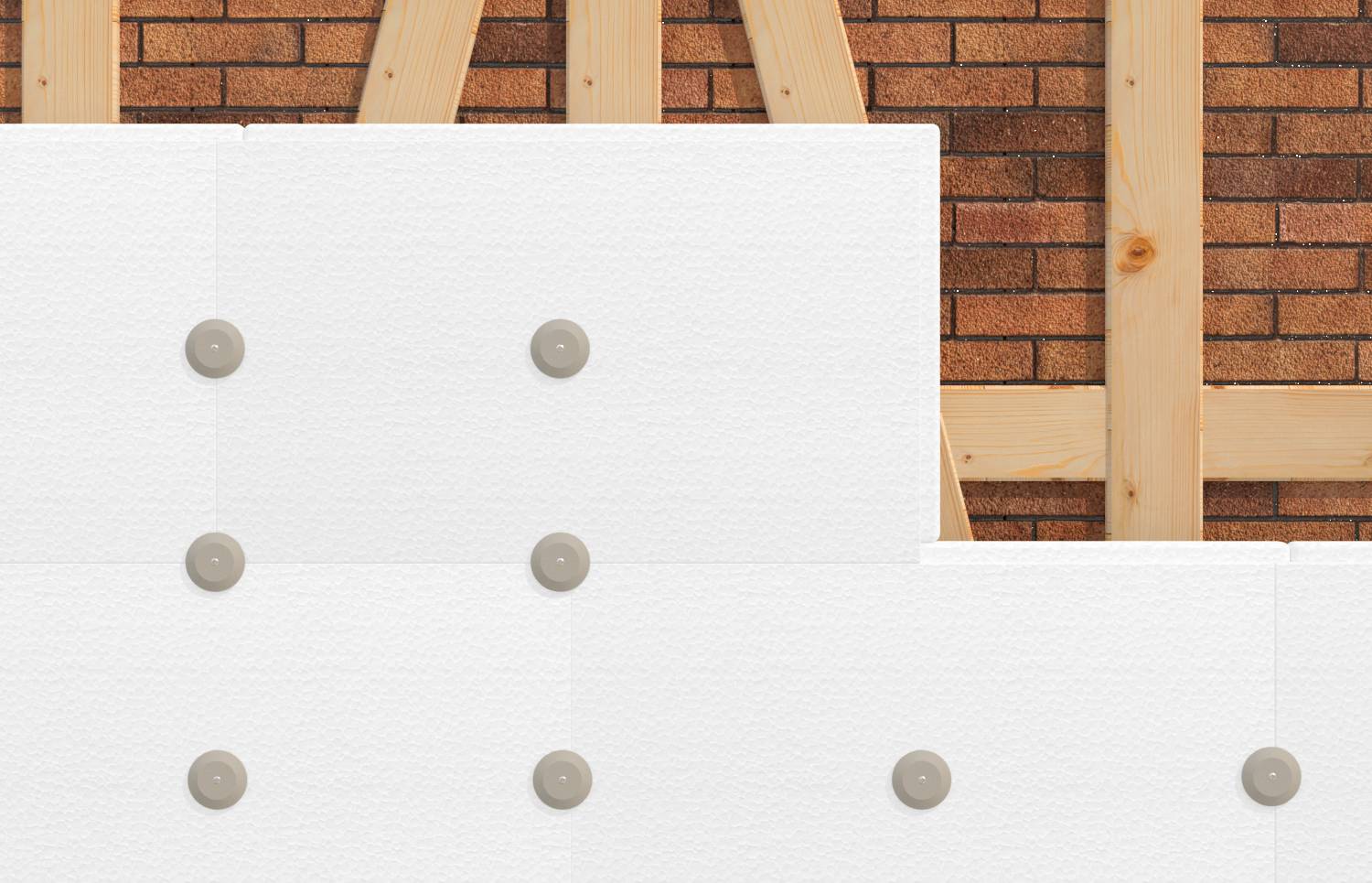

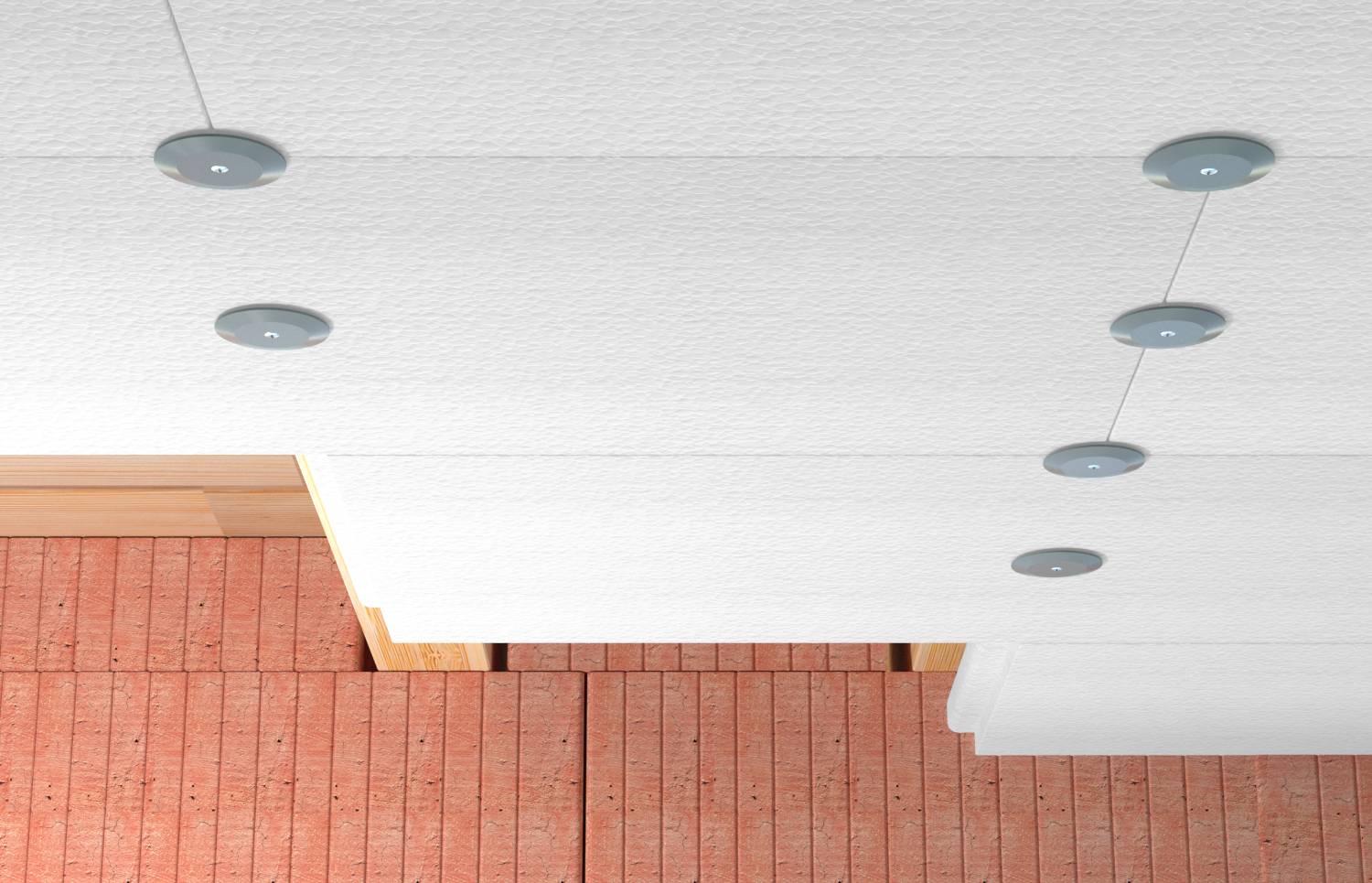

The fischer mount DHT S W is a retaining plate made of high-quality nylon with a pre-mounted screw. The DHT is with a battery-powered drill/screwdriver in the hole mounting without pre-drilling in wood and wood-based materials. After installation, the screw head with a sealing plugs closed. The fischer mount DHT S W is ideal for pressure-resistant insulation materials in wood and wooden materials, as well as a sheet thickness up to 0.8 mm.
This text is machine translated.
This text is machine translated.
Features
- Made of high-quality nylon
- Thin plate construction makes processing of thin plaster and reinforcing layers
- No Abzeichnungen at plug area: sealing plugs reduces transmission heat
- Time-saving installation without predrilling.
