Fischer 509223 Threaded rod M10 1 m Steel zinc galvanized 10 pc(s)

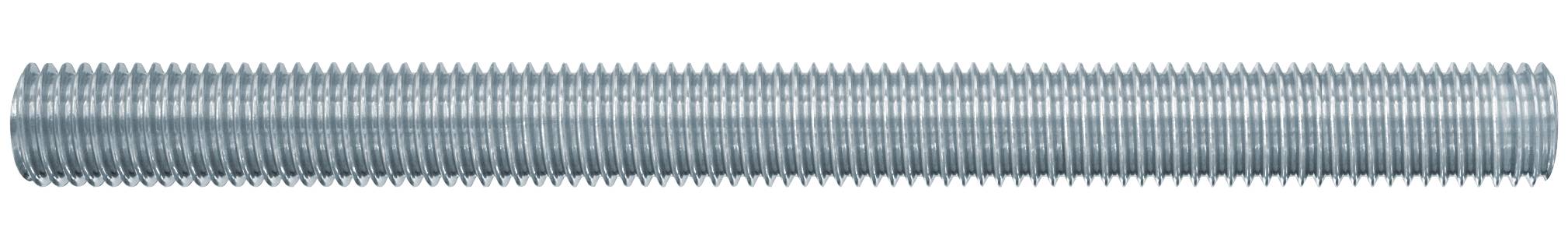

A long silver threaded metal rod or bolt shown horizontally on a white background.
Close-up of a timber frame roof structure with large wooden beams and diagonal supports under a blue sky.<br>
Blue steel canopy frame with posts in front of a white building facade with three windows and gravel ground
Red steel column base plate bolted to a concrete floor with four anchor bolts.
Anchor bolt embedded in concrete, extending horizontally into a metal L-bracket and secured with a washer and nut.
Cross-section of a masonry anchor bolt expanding inside a brick wall, showing how the threaded fastener secures into the hole with a metal bracket on the right.
Long threaded bolt anchored through a wall into a metal L-bracket with a nut and washer, showing a structural fastening detail.<br>
Side view of a threaded anchor bolt passing through a wall and secured with a washer and hex nut against a metal bracket.
1/8
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Threaded rod

Length

1 m

Material

Steel

Thread size

M10

Quality

8.8

Content

10 pc(s)

Material properties

zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 484102 Fischer 509223 Threaded rod M10 1 m Steel zinc galvanized 10 pc(s)

Description

The fishermen anchor rod FIS A is made of electro-galvanised steel grade 8.8. The Anchor rod is a system component for the different fischer injection mortar. In connection with the injektionsmorteln is the fishermen anchor rod suitable for all surfaces or approved. For the maximum load capacity of the system is a thorough drill hole cleaning is recommended. The system is designed for fixing steel constructions, stairs and machines in the interior.

This text is machine translated.

Features

  • The universal solution for different fischer injection mortar. This simplifies the complexity and storage
  • In combination with the various fishing injektionsmorteln approved for anchoring in gerissenem and ungerissenem concrete, solid masonry, perforated brick masonry and aerated concrete
  • The meter for the need-oriented cutting to length.
  • Optimal load adjustment by variable anchoring depth. This reduces assembly and material costs.

Hints

N.B. Dimension tolerance: up to 1.5%
