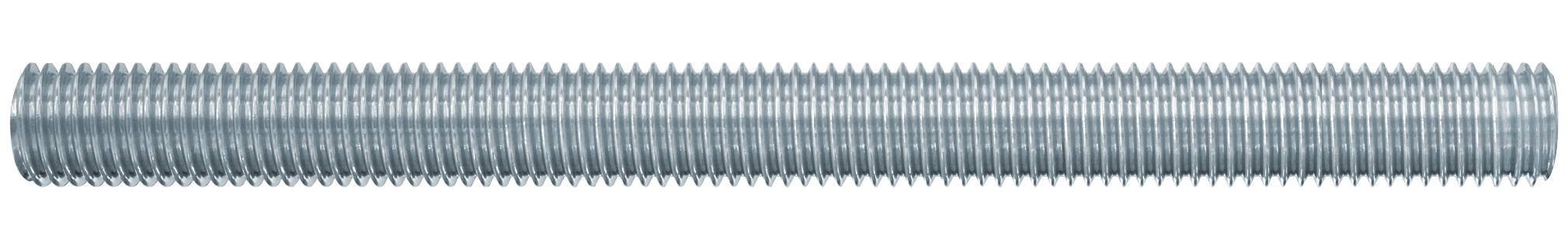

Name: Fischer 509231 Threaded rod M10 1 m Stainless steel A4 10 pc(s)
Brand: Fischer
SKU: 484108

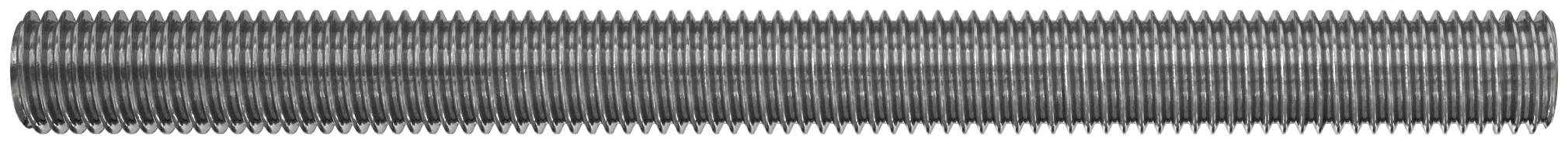

Close-up of a long metal threaded rod or screw bolt, shown horizontally on a plain background.

Close-up of a wooden roof truss or frame with large diagonal and vertical beams, showing structural supports against a blue sky.

Blue steel columns and overhead beams frame a white building facade with three small dark windows.

Red steel column base plate bolted to a concrete floor with four anchor bolts.

Anchoring bolt embedded in a concrete slab, extending horizontally into a metal bracket with a nut and washer on the right.

Cutaway of a metal anchor bolt set into a brick wall, showing its expanded sleeve gripping the masonry with a nut and bracket on the outside.

Threaded bolt anchored horizontally through a speckled wall, secured on the right with a nut and metal bracket.

Threaded anchor bolt embedded in a wall, extending through a metal bracket and secured with a nut.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Threaded rod

Length: 1 m

Material: Stainless steel

Thread size: M10

Content: 10 pc(s)

Material properties: A4

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 484108 Fischer 509231 Threaded rod M10 1 m Stainless steel A4 10 pc(s)

Description

The fishermen anchor rod FIS A is made of non-rusting steel. The Anchor rod is a system component for the different fischer injection mortar. In connection with the injektionsmorteln is the fishermen anchor rod suitable for all surfaces or approved. For the maximum load capacity of the system is a thorough drill hole cleaning is recommended. The system is designed for the attachment of steel construction and timber constructions, railings and facades in outdoor areas.

This text is machine translated.

Features

The universal solution for different fischer injection mortar. For a manageable range and a simplified storage
Stainless steel for the outdoor area
In combination with the various fishing injektionsmorteln approved for anchoring in gerissenem and ungerissenem concrete, solid masonry, perforated brick masonry and aerated concrete
The meter for the need-oriented cutting to length.
Optimal load adjustment by variable anchoring depth. This reduces assembly and material costs.

Hints

N.B. Dimension tolerance: up to 1.5%

Description

Features

The universal solution for different fischer injection mortar. For a manageable range and a simplified storage
Stainless steel for the outdoor area
In combination with the various fishing injektionsmorteln approved for anchoring in gerissenem and ungerissenem concrete, solid masonry, perforated brick masonry and aerated concrete
The meter for the need-oriented cutting to length.
Optimal load adjustment by variable anchoring depth. This reduces assembly and material costs.
