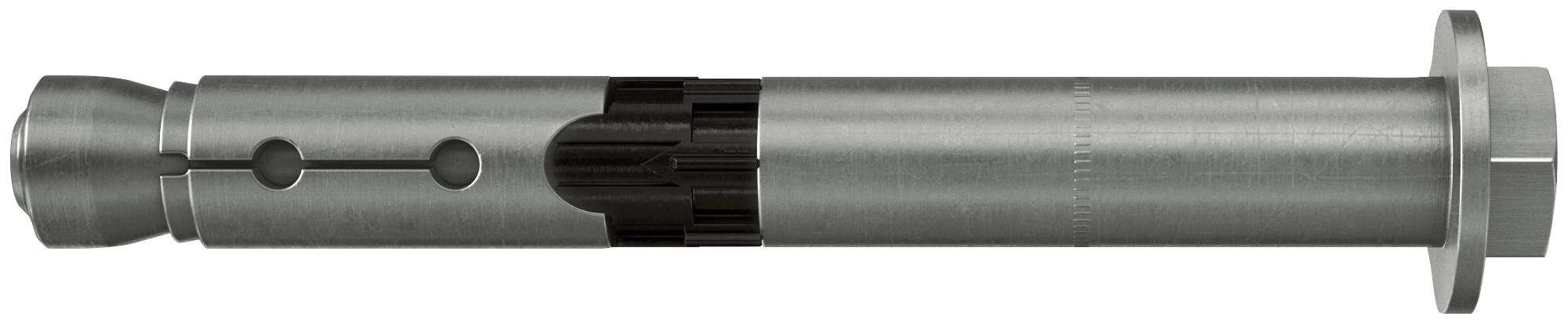

Fischer 510924 FH II 10/25 S A4 Heavy duty anchor 84 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- (Ø)
10 mm
- Product type
Heavy duty anchor
- Material
Steel
- Length
84 mm
- Screw diameter
6 mm
- Dim
(Ø x L) 10 mm x 84 mm
- Suitable for
Concrete
Natural stone
- Content
50 pc(s)
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 484184 Fischer 510924 FH II 10/25 S A4 Heavy duty anchor 84 mm 10 mm 50 pc(s)
Description

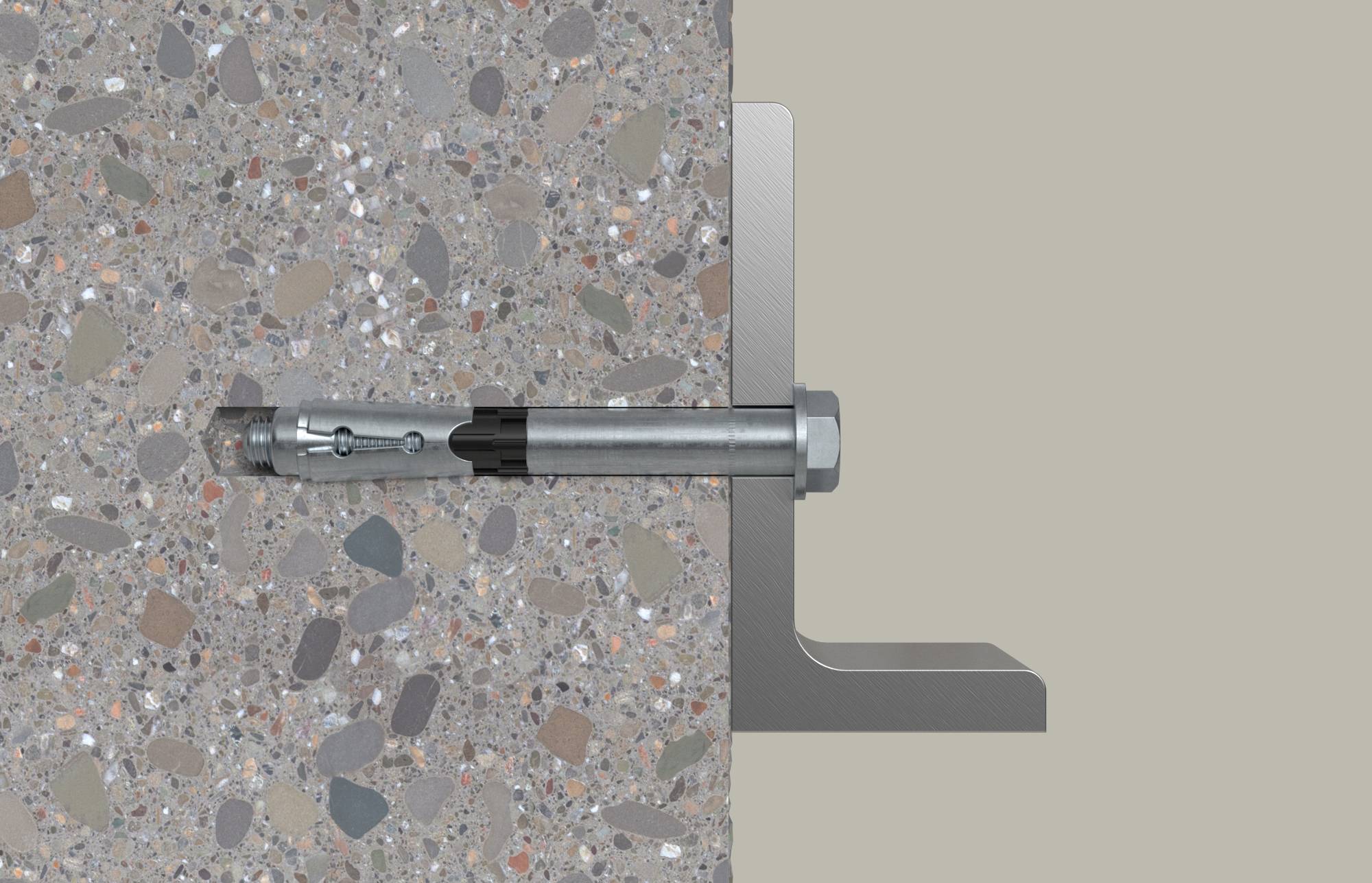

The fischer high-performance anchor FH II S with hexagonal head is a anchor plug made from stainless steel. The anchor is in the time-saving through-hole mounting. While tightening of the anchor, the cone in the split sleeve pulled and tightens them against the drill hole wall. The black plastic ring prevents the armature rotates, and the tightness slip to. The Add-on will be drawn to the anchoring reason. The fischer high-performance anchor FH II S with hex head is best suited to in gerissenem and ungerissenem concrete consoles, steel structures and the railings in outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- Made of stainless steel for attachments in the outdoor area
- ETA-approval for cracked concrete
- Energy-saving installation through optimized dowel geometry
- Less attachment points by high lateral load capacity
- Time-saving through installation.
