Fischer 519808 FF 8 - 32 Cable tie 80 pc(s)
EAN:
Part number:
Item no:
Product type
Cable tie
Content
80 pc(s)
Cable tie features
Screw base
Material
Polyamide
Dim
(L x W x H) 172 x 15 x 15 mm
Highlights & Details
fischer FF 8-32 cable tie
- Mounting tie with base for attachment on different bases
- For bundling cables and conduits
- The diameter of the cable loop can be set variably from 8 to 32 mm
- Base can be aligned via slot
Technical specifications
- Dimensions of mounting base 25 x 15 x 20 mm
- Width A: 19.5 mm
- Width B 23.5 mm
- Suitable for: Plastic pipes, metal pipes
- For cables and pipes from/to: 8 - 32 mm
- Max. Screw diameter 4.5 mm
- Clamping range 8 - 32 mm
- Dim
(L x W x H) 172 x 15 x 15 mm
- Product type
Cable tie
- Content
80 pc(s)
- Cable tie features
Screw base
- Max. temperature
80 °C
- Min. temperature
-40 °C
- Material
Polyamide
- Max. bundle diameter
32 mm
- Manufacturer part #
519808
- Dimensions
25 x 15 x 20 mm
- Width
15 mm
- Height
15 mm
- Length
172 mm
- Type
FF 8 - 32
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472285 Fischer 519808 FF 8 - 32 Cable tie 80 pc(s)
Description
with the fischer FF cable tie, cables and pipes can be bundled together and attached to the surface with its base and additional screw and dowel. Only two items cover a range of diameters from 8 to 63mm. The slot in the base allows it to be aligned slightly if required. The base can be attached ideal and secure in any surface with the 2-component plastic dowel DuoPower
This text is machine translated.
This text is machine translated.
Features
- The base of the FF fastening binder is attached to the subsurface by means of a screw or screw and dowel
- With the fixing binder several cables or pipes can be bundled and fixed
- variably adjustable diameter of the cable loop
- The base of the fastening binder can be aligned through its slot
- The base of the fastening binder is attached in pre-plug mounting with the wall plug and screw suitable for the subsurface
- Recommended processing temperature -20 °C to +60 °C.
- Temperature-resistant when installed -40 °C to +80 °C.
Hints

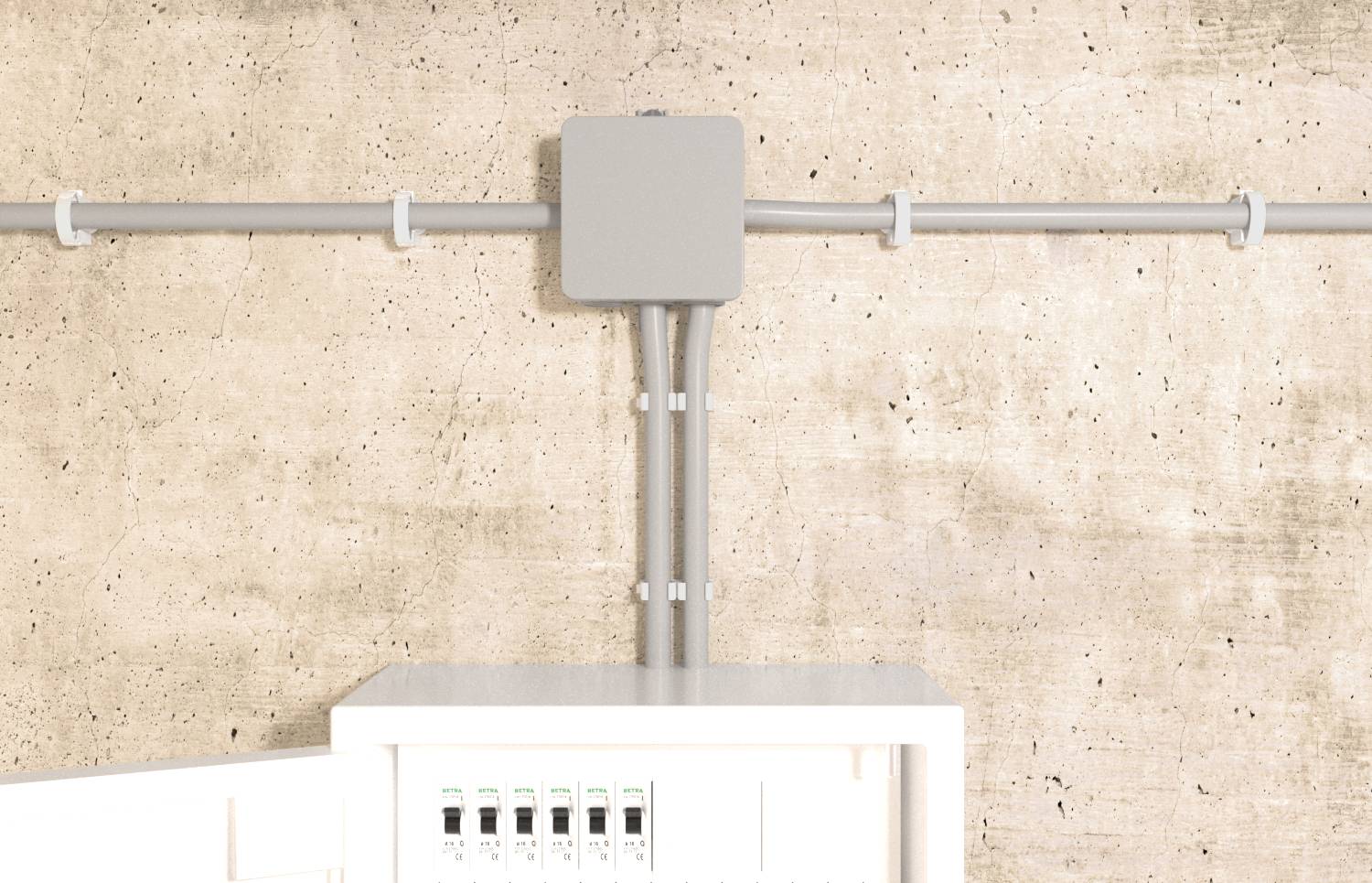

For bundling and fastening: Electrical cables, flexible and rigid electric tubes, steel tube
