Fischer 530419 Nail plug 50 mm 6 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

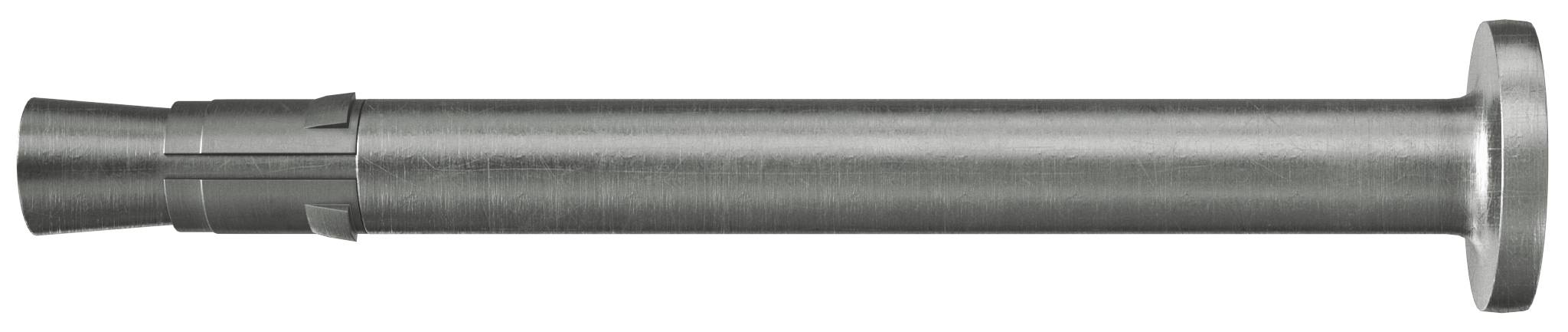

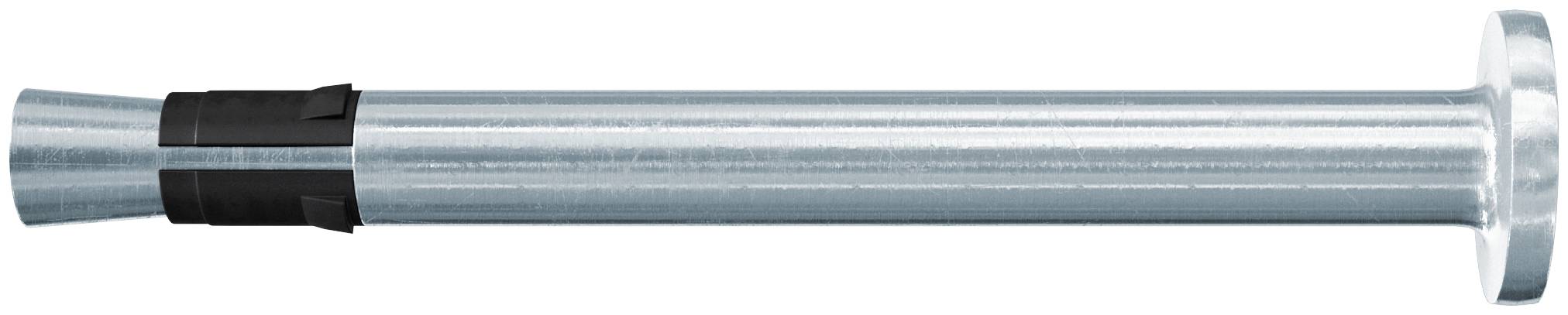

fischer FNA II nail plug 6 x 30/15
- Impact mounting saves time
- No reinforcement buffers due to low anchoring depth
- Saves time and costs during series assembly
- Expanding clip provides for a secure hold
- ETA approval for multiple fasteners
- Series mounting possible with setting tool for the hammer drill
Technical specifications
- Max. Thickness of the attachment part: 15 mm
- Min Drill hole depth for through-hole mounting: 55 mm
- (Ø)
6 mm
- Product type
Nail plug
- Material
Steel
- Length
50 mm
- Dim
(Ø x L) 6 mm x 50 mm
- Content
50 pc(s)
- Outside Ø
6 mm
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472281 Fischer 530419 Nail plug 50 mm 6 mm 50 pc(s)
Description

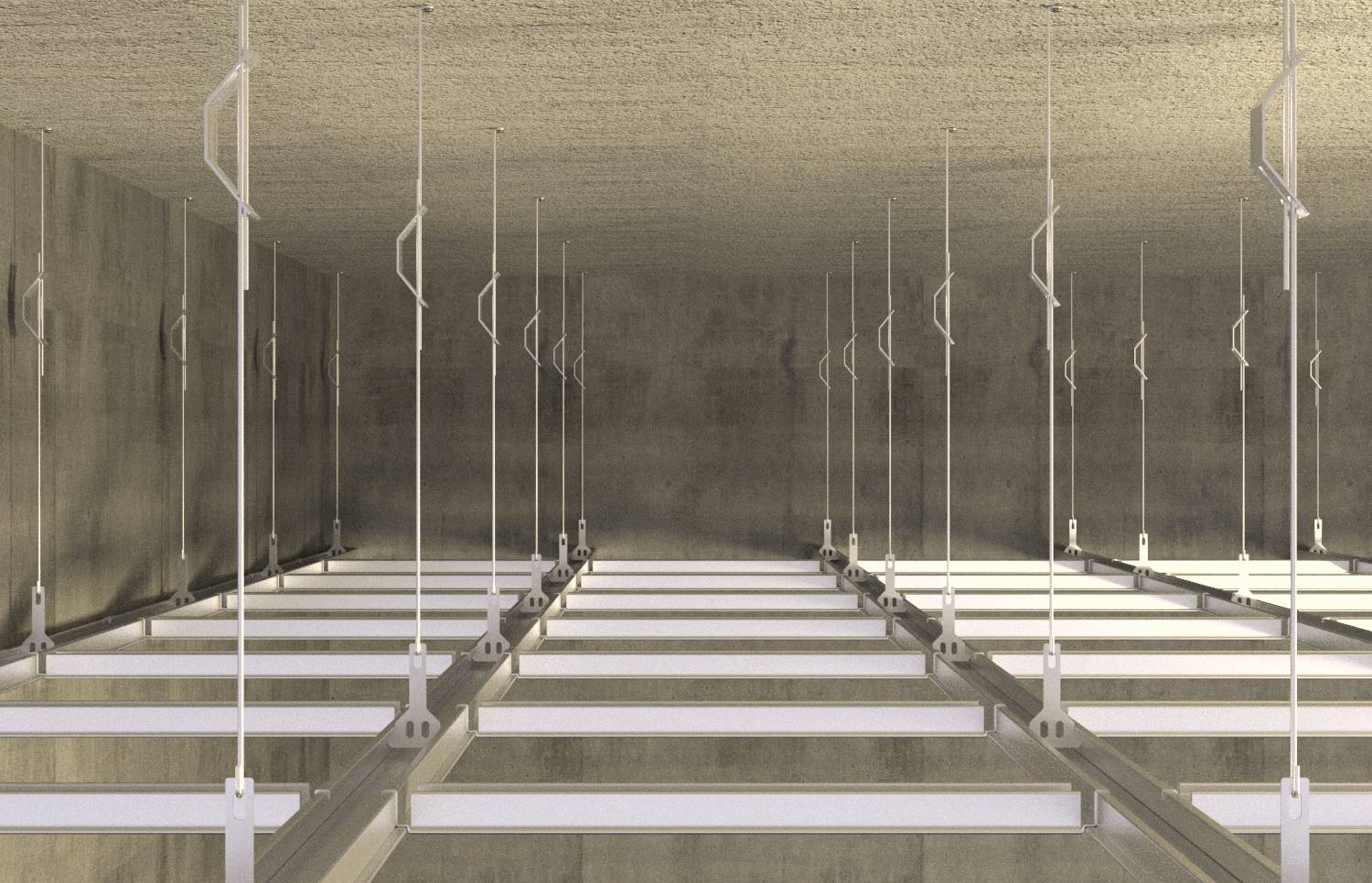

the fischer Nagelker FNA II 6 with nail head is made of galvanized steel. The FNA II is placed in the through-hole assembly with a few hammer strokes to save time. Under load, the FNA II automatically spreads. The cone is pulled into the expansion clip and tightens it against the drill hole. the fischer Nagelker FNA II 6 with nail head is especially suitable for fixing fire protection covers, wire and nonius hangers in the interior.
This text is machine translated.
This text is machine translated.
Features
- The special principle of action enables simple impact mounting and thus a short processing time
- the extremely short anchoring depth prevents the reinforcement buffer and creates the prerequisite for a problem-free mounting The optimized expansion clip ensures a hold when inserted into the drill hole and prevents it from falling out when mounted overhead
- The massive shaft cross-section guarantees a high load capacity in case of fire and thus offers a very high level of safety
- different head shapes enable the attachment of different attachment parts and the optimum adaptation to the application
