Fischer 536516 D-HSS-G HSS Twist drill bit 1 mm Total length 34 mm DIN 338 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
1 mm
Content
1 pc(s)
Material
HSS
Material suitability
Brass
Steel
Cast steel
Grey iron
Malleable iron
Graphite
Brass
Highlights & Details

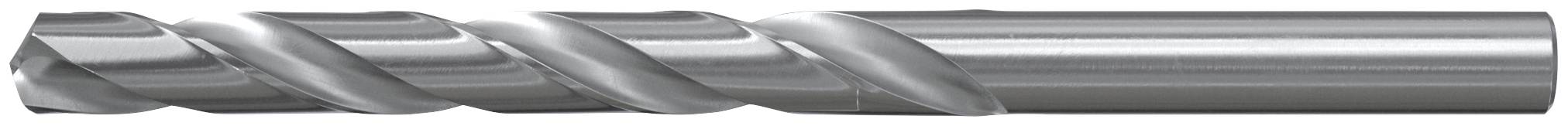

Fischer D-HSS-G DIN338 1.0 x 12/34 metal drill bits
- Manufactured in accordance with DIN 338 robust HSS-Steel for high breaking strength.
- Precision-ground solid material for long durability and high precision.
- Cross polished section for optimum centering and low exerting force.
- 135° tip angle for quick drilling progress.
- Type N-spiral for an optimum chip removal.
Technical specifications
- Product type
Twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
1 mm
- Content
1 pc(s)
- Material
HSS
- Material suitability
Brass
Steel
Cast steel
Grey iron
Malleable iron
Graphite
Brass
- Working length
12 mm
- Total length
34 mm
- Width
34 mm
- Working length
1.2 cm
- Drill bit diameter
1 mm
- Number of drill bits
1 Stück(e)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3728991 Fischer 536516 D-HSS-G HSS Twist drill bit 1 mm Total length 34 mm DIN 338 1 pc(s)
Description
Twist drill bit made from robust HSS steel and DIN 338 standard, precision ground. The cross-polished section at 135° ensures that you drilling is complete quickly. Ideal suitable for drilling jobs in metal and steel.
