Fischer 543565 FBS II 8x60 10/- US A4 Concrete screw 50 pc(s)

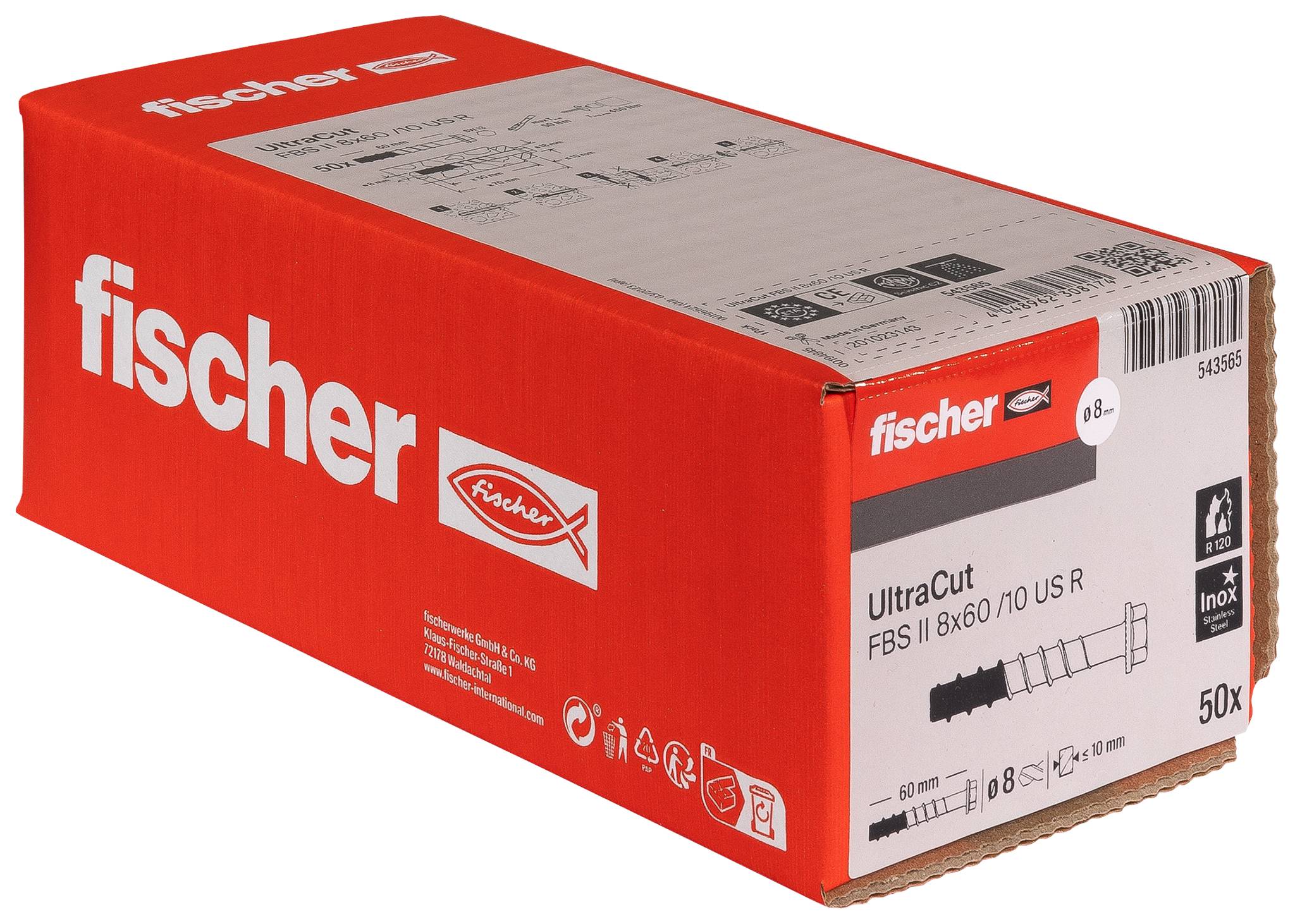

Red Fischer UltraCut screw anchors box labeled 'fischer' and 'UltraCut FBS II 8x60/10 US R', pack of 50.

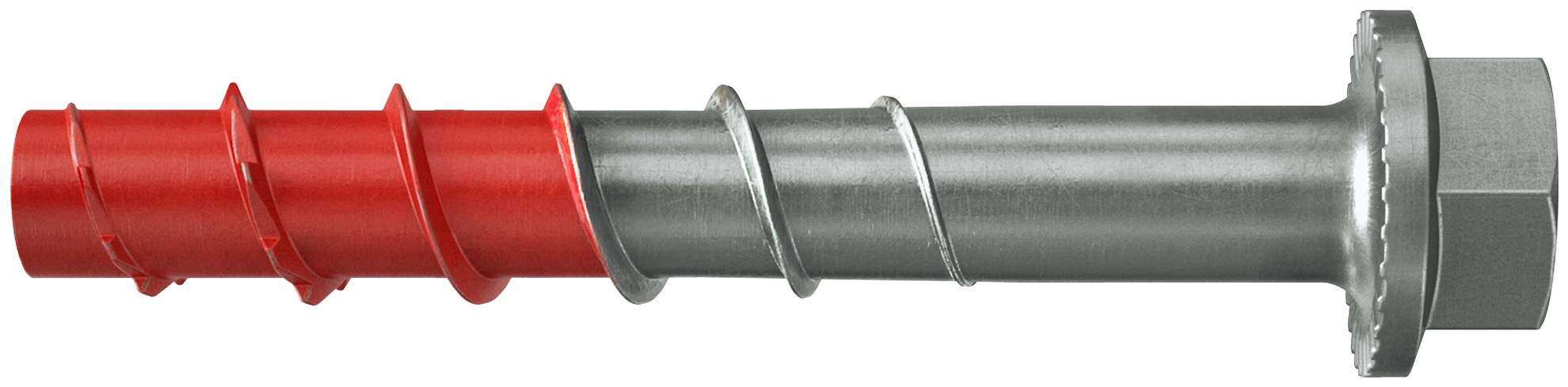

A red-and-silver helical screw anchor with a large hex head, shown horizontally on a white background.

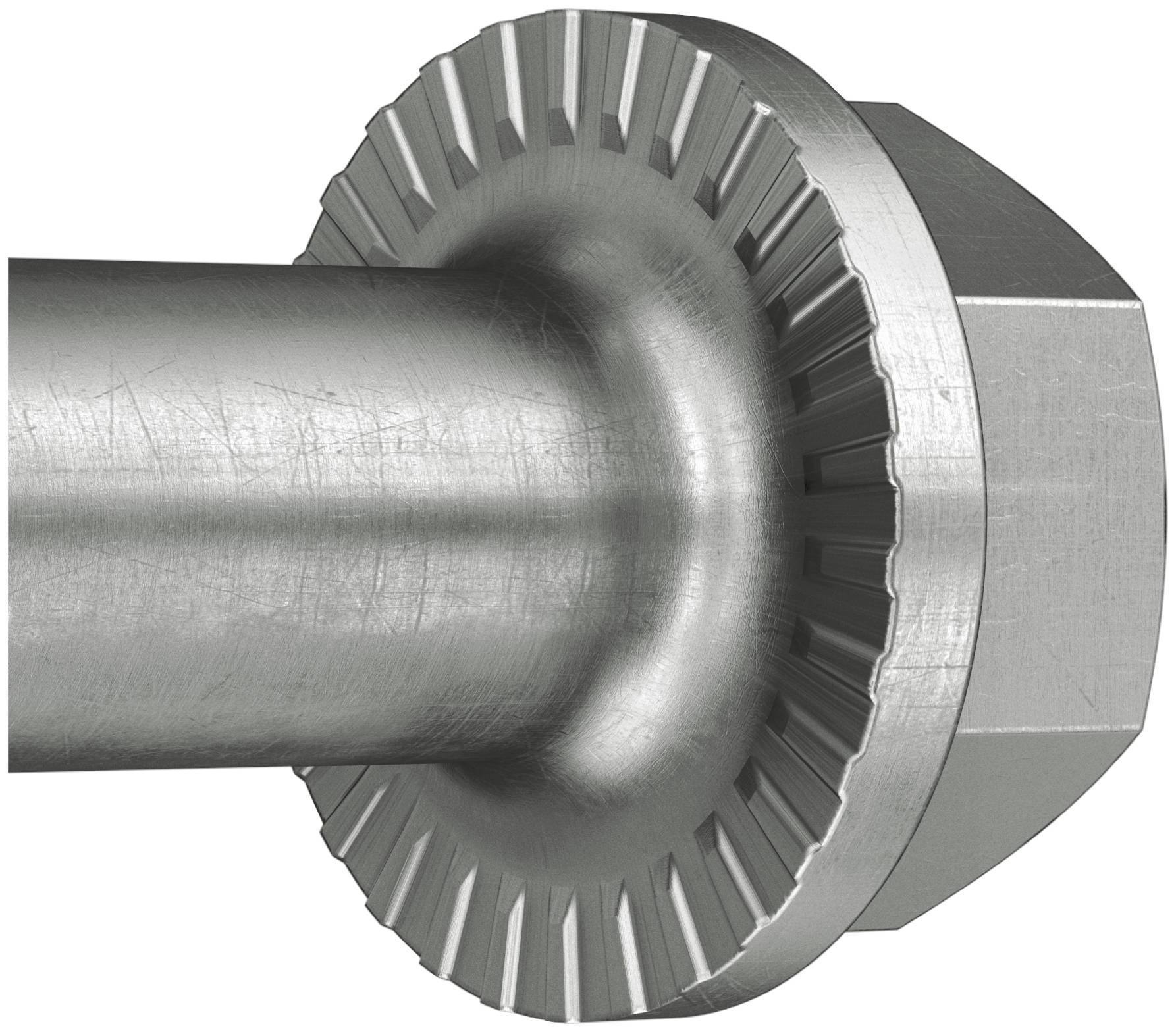

Close-up of a metal bolt with a serrated flange and hexagonal head, shown against a white background.

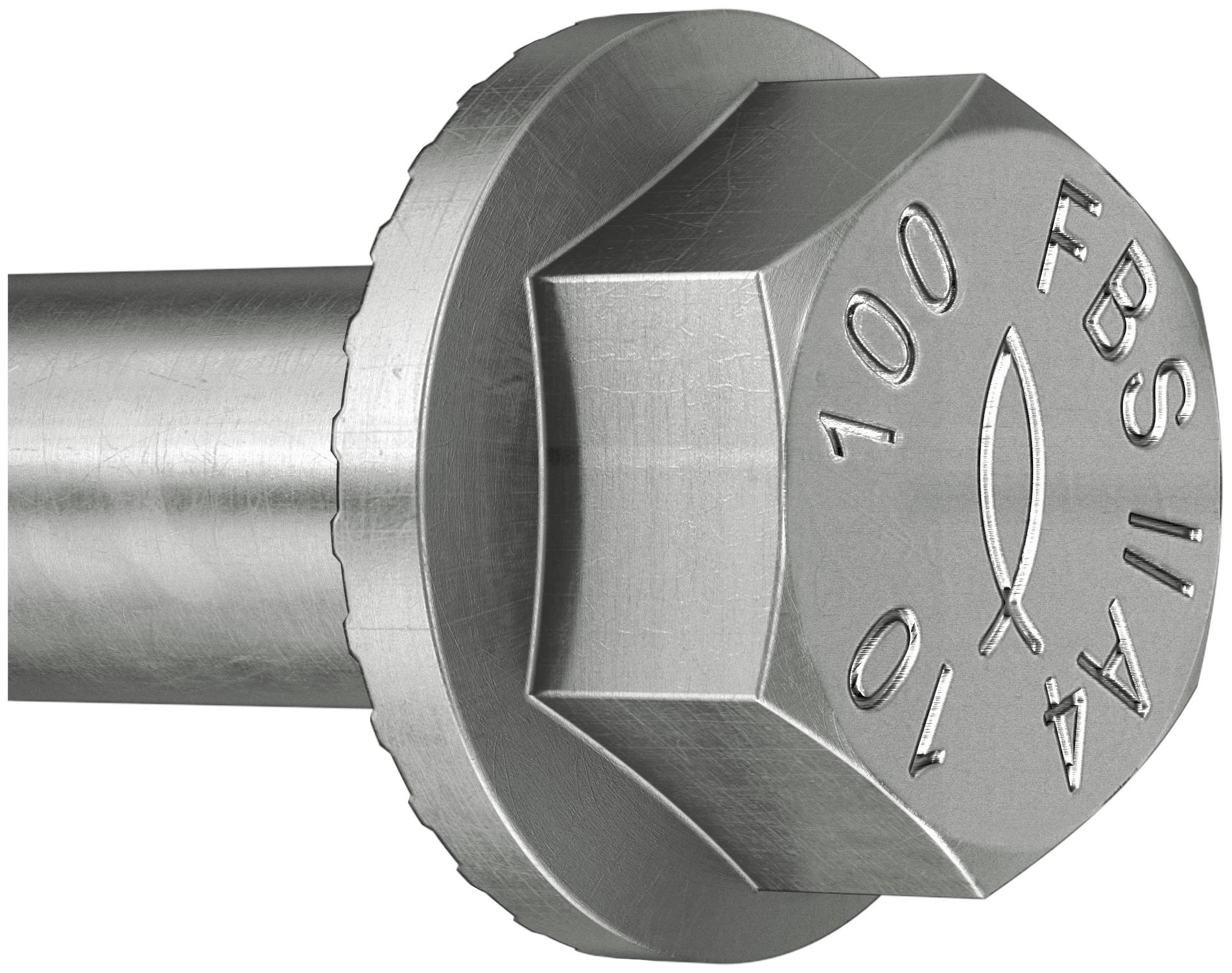

Close-up of a stainless steel hex bolt with washer, head marked '100' and 'FBS', shown against a white background.

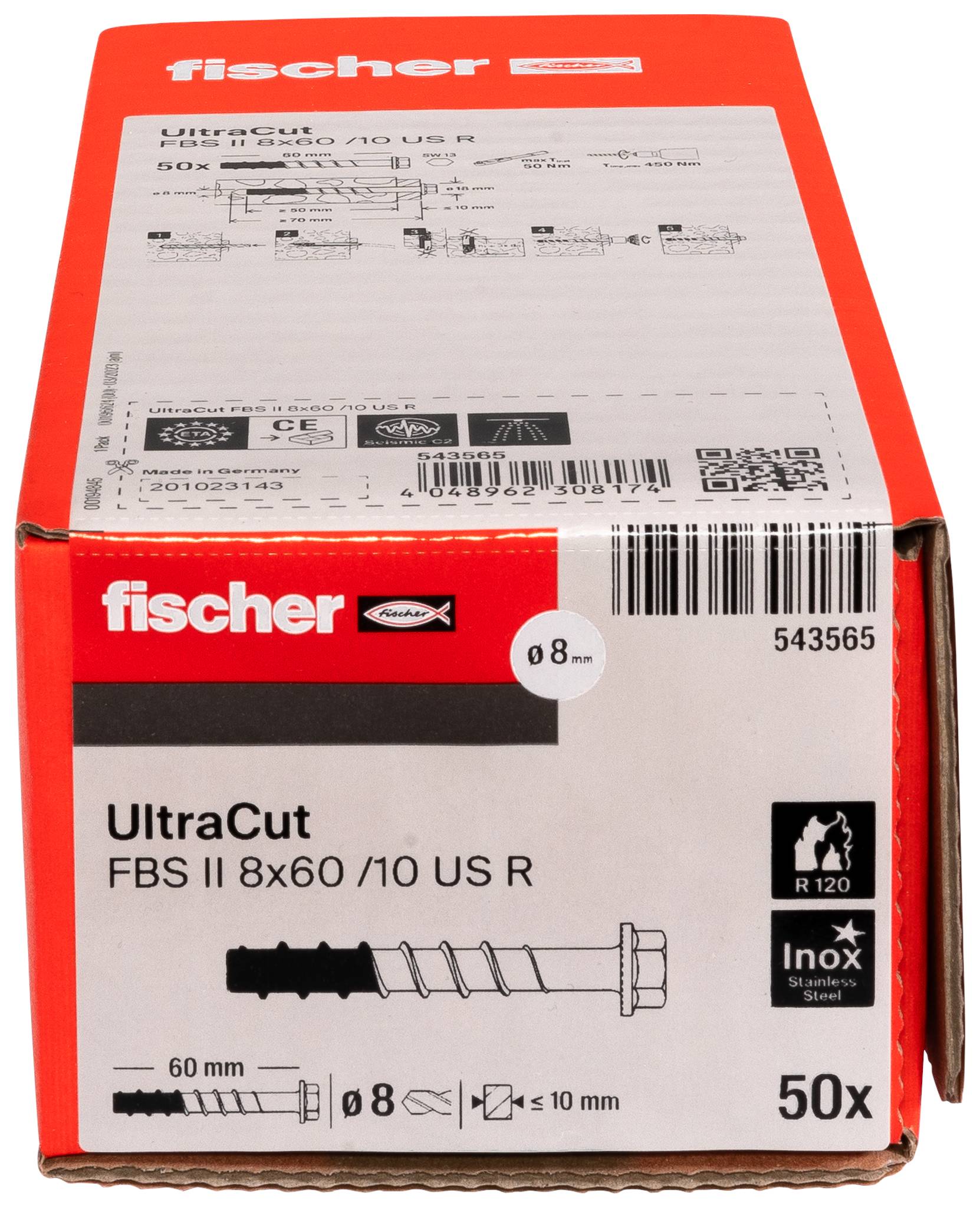

Red Fischer UltraCut screw anchor box, labeled 'FBS II 8x60/10 US R', 8 mm, 50 pieces, with product diagram and Inox/R120 icons.
Empty concrete stairwell with metal railings and a fenced landing beneath an outdoor staircase.
Close-up of a red steel beam bolted to a concrete wall with a red mounting plate, showing structural support connection.

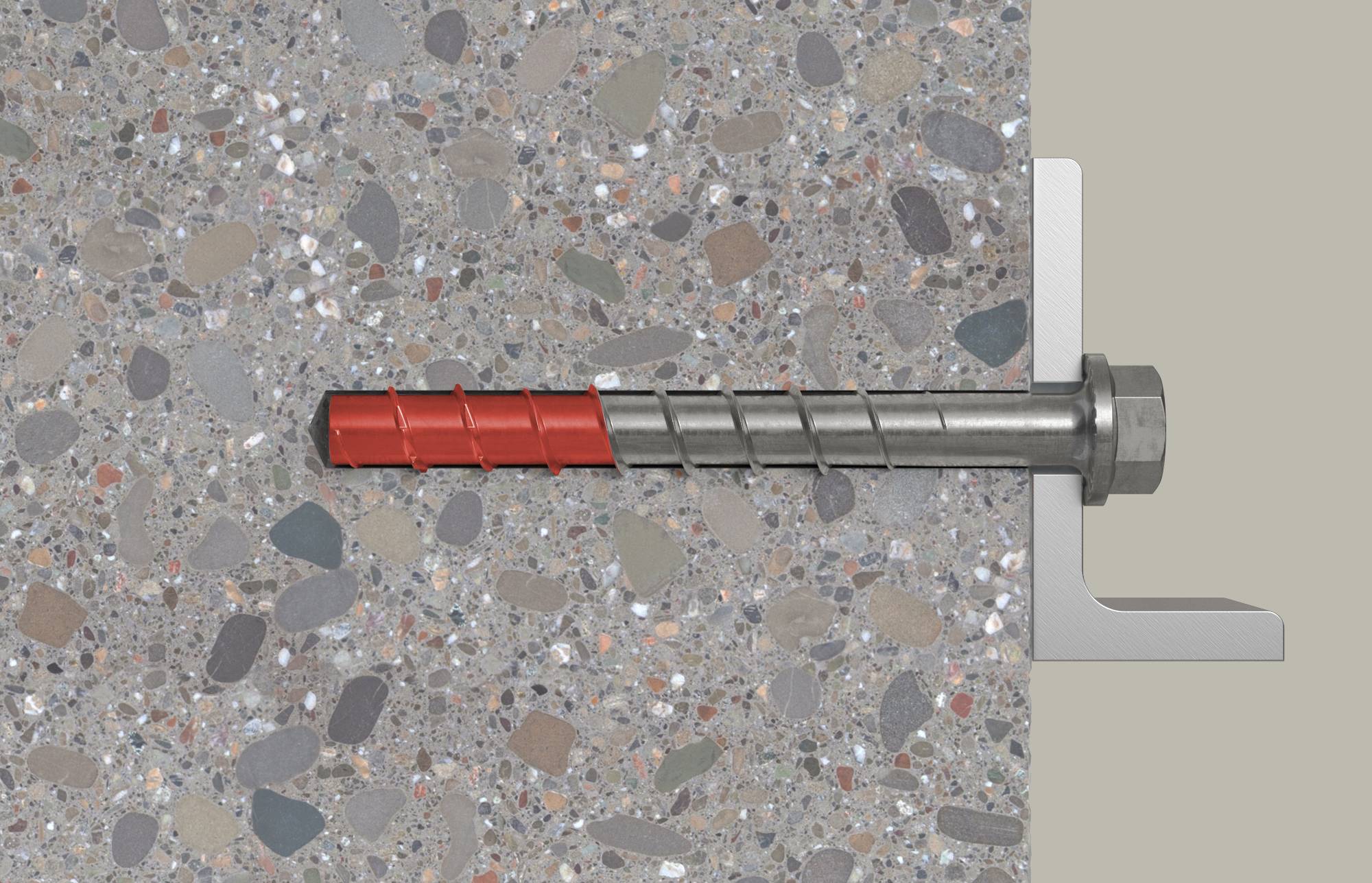

Cross-section of a concrete anchor bolt embedded in concrete and attached to a metal bracket on the right.

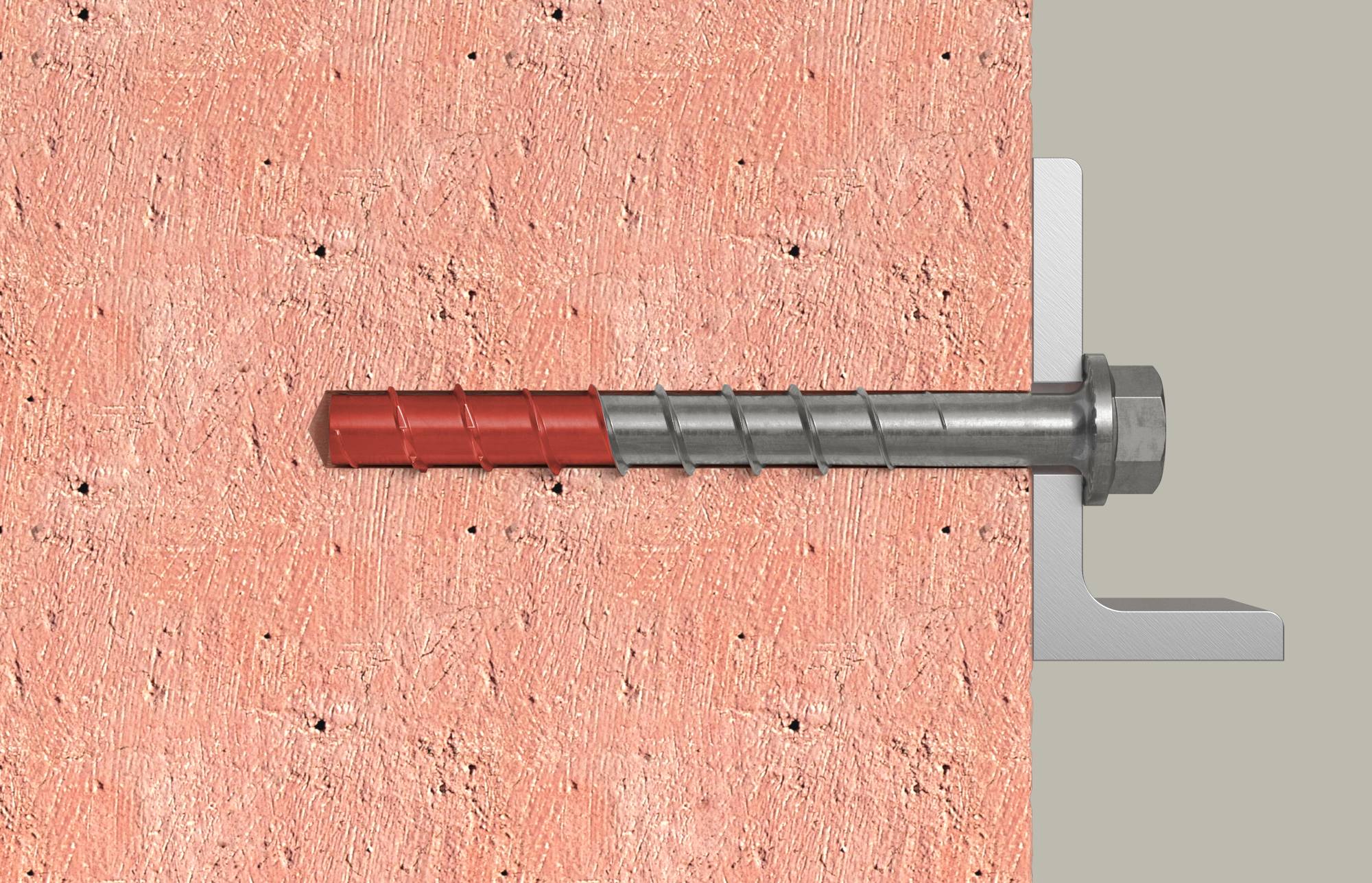

Cross-section of a concrete wall anchor: a red expansion sleeve with a steel bolt fixed into masonry and a metal bracket on the right.
1/9
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Fischer ULTRACUT FBS II 8 x 60 10/US A4 hexagonal with washer

  • The specially hardened red tip ensures noticeably faster and secure mounting.
  • The construction of the concrete screw in stainless steel ensures a very high corrosion protection and thus enables an application in damp rooms and in the outdoor area.
  • The special saw-tooth geometry allows quick cutting into the concrete.
  • For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not necessary. For holes in the ground, 3x drill diameter must be drilled deeper.
  • The ETA evaluation covers the application in cracked concrete, as well as the seismic performance categories C1 and C2.
  • The adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned.
  • Three approved screw-in depths enable the application for a wide range of applications and thus provide for a high degree of flexibility.
  • The short design with reduced screw-in depth enables a low drill hole depth, fast mounting and less reinforcement buffers.
  • This text is machine translated.

Technical specifications

Product type

Concrete screw

Drive

TX

Material

Stainless steel

Content

50 pc(s)

(Ø)

8 mm

Length

60 mm

Dim

(Ø x L) 8 mm x 60 mm

Material properties

A4

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148266 Fischer 543565 FBS II 8x60 10/- US A4 Concrete screw 50 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.

Scope of delivery

  • 50
