Fischer 558224 FBS II 12x190 130/115/90 US Concrete screw 12 mm 190 mm 20 pc(s)

Metal screw auger with a hex head, shown horizontally on a white background.

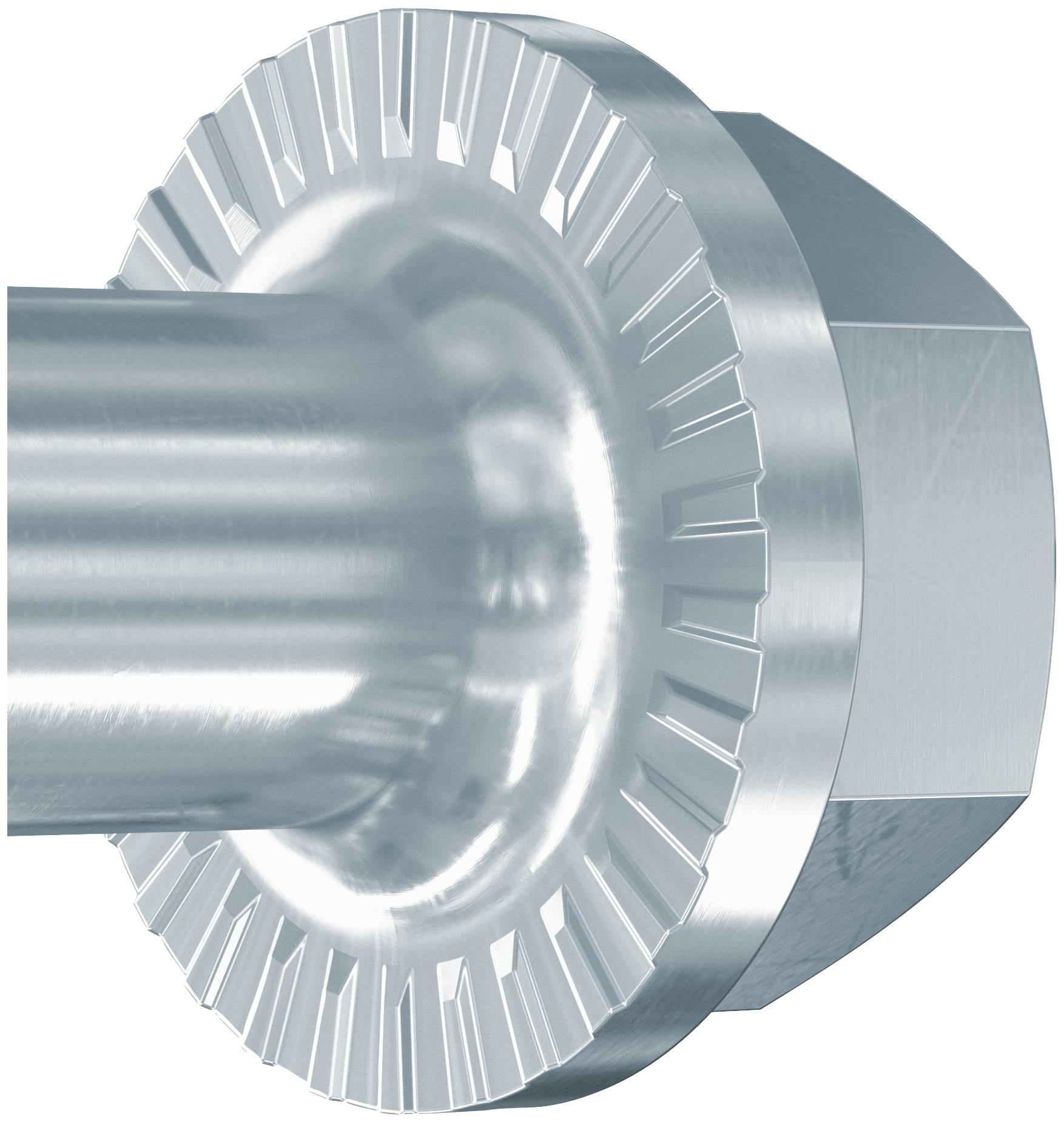

Close-up of a metal bolt with a serrated flange nut and washer, showing the threaded shaft and hex head for fastening.

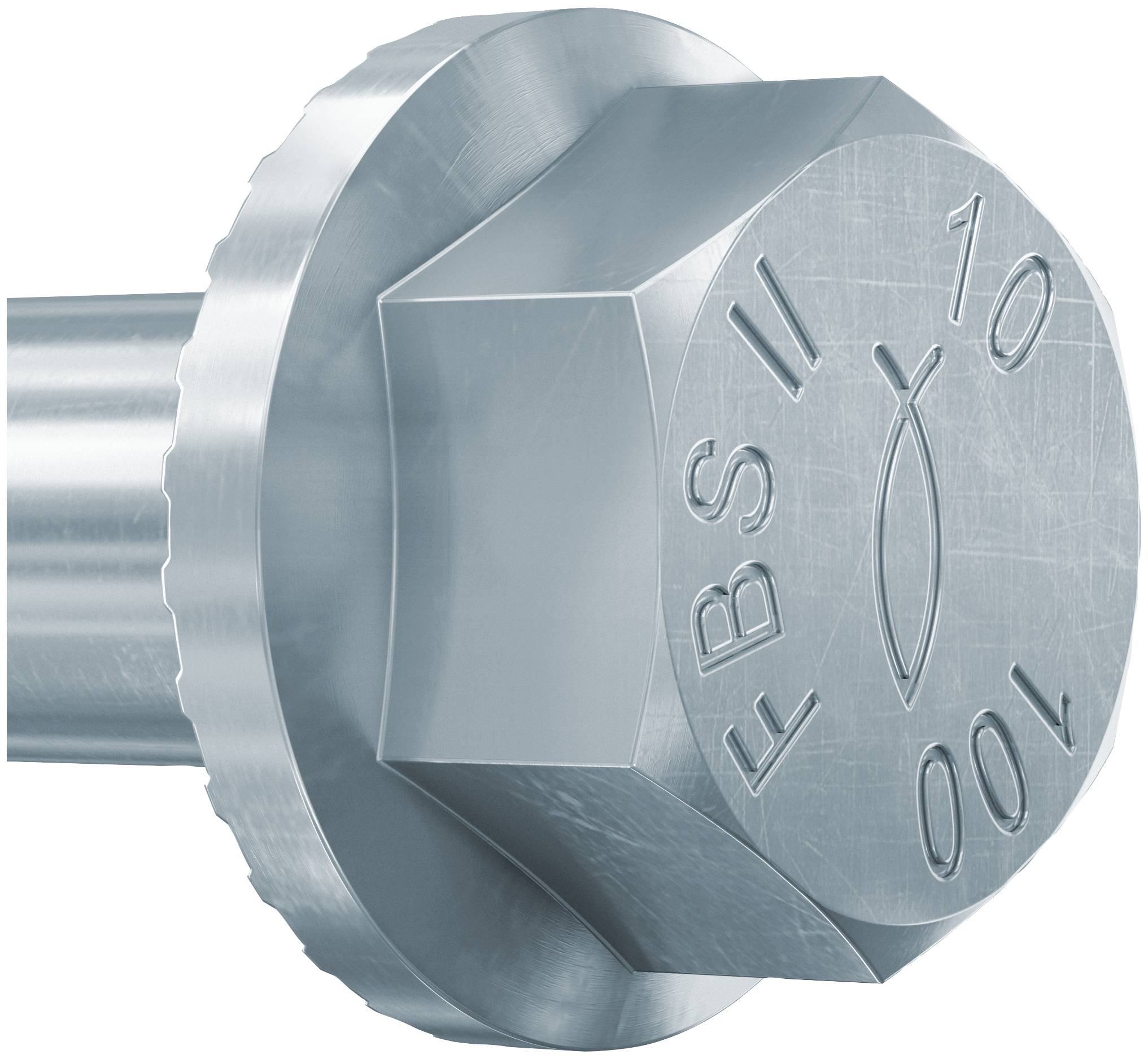

Close-up of a metal bolt head with 'EBS 10 100' engraved on the end.

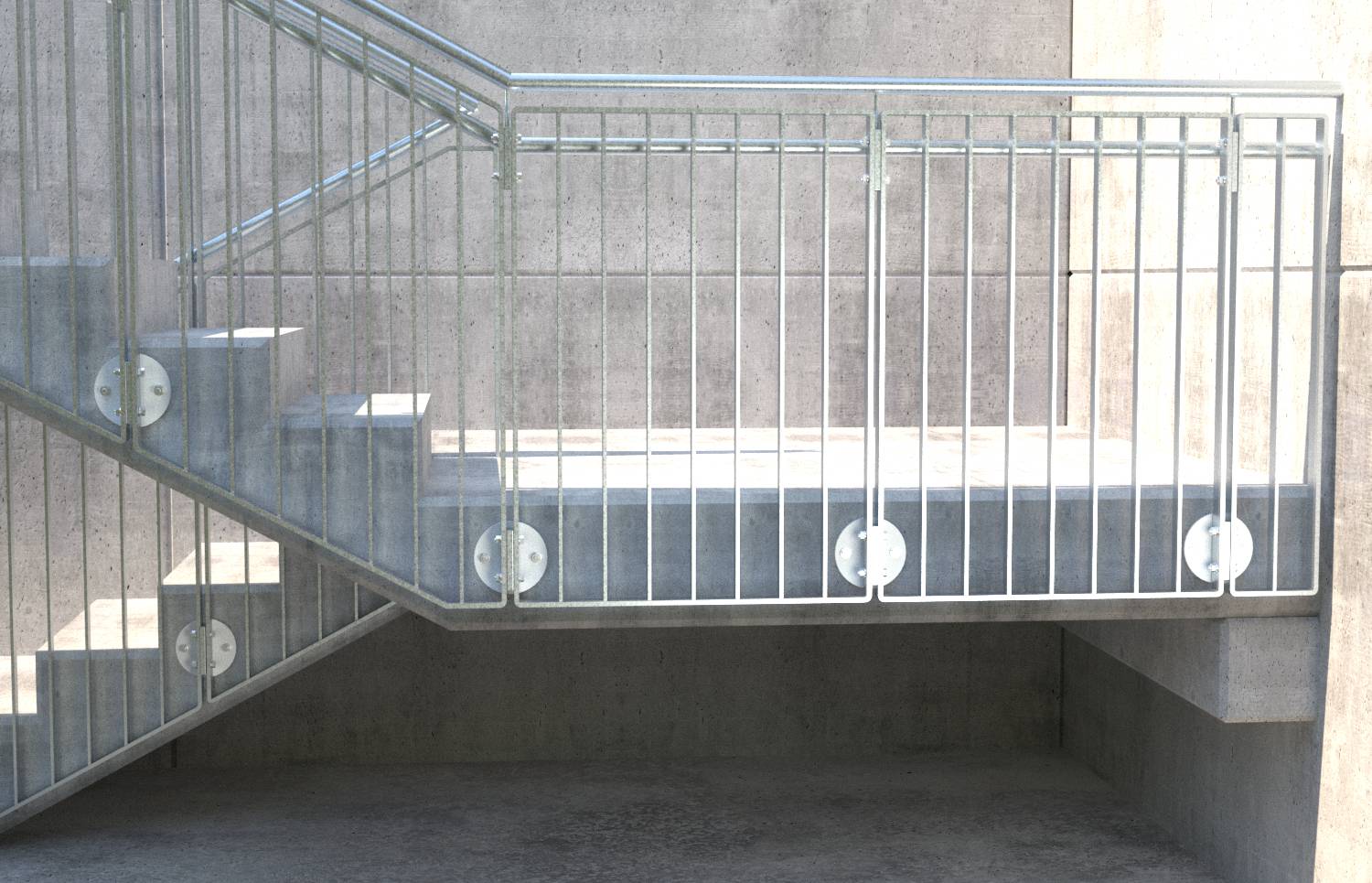

Exterior concrete stairwell with metal railings and a landing above a dark underpass or covered space<br>

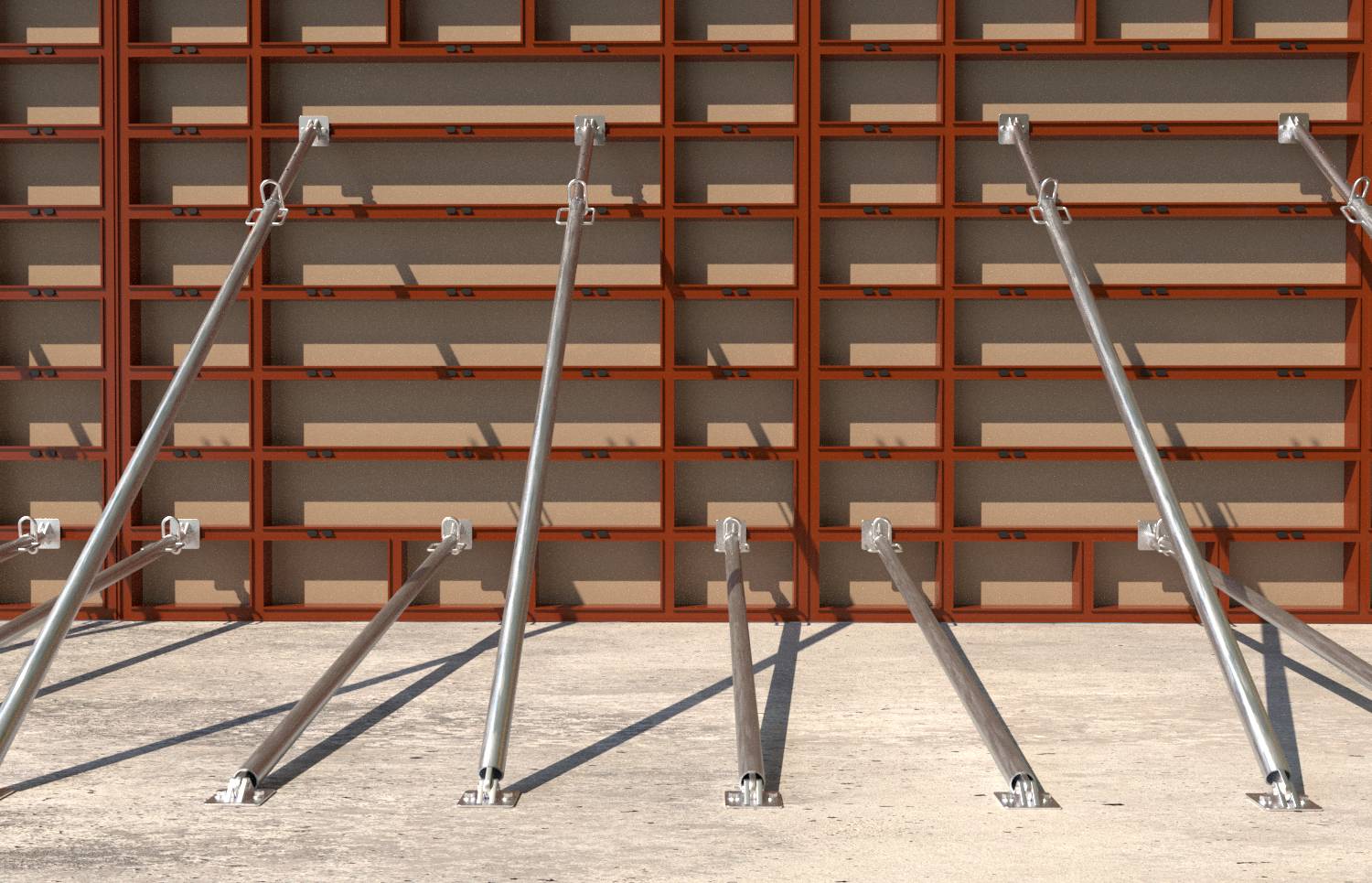

Metal support braces lean from a concrete floor to a wall of stacked rectangular shelves or panels, forming a structural framework.<br>

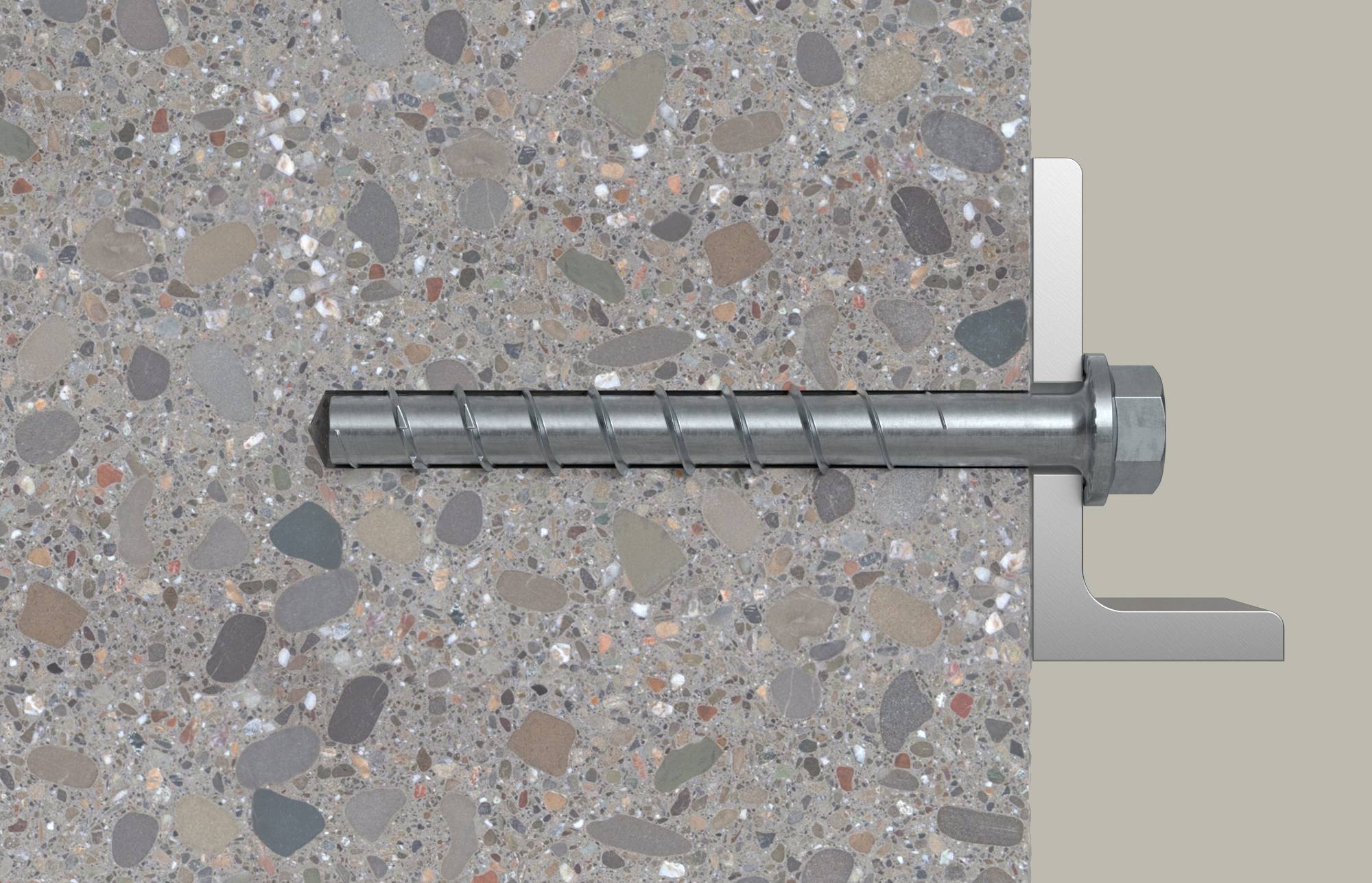

Metal anchor bolt embedded in concrete, with threaded end and bracket visible on the right.

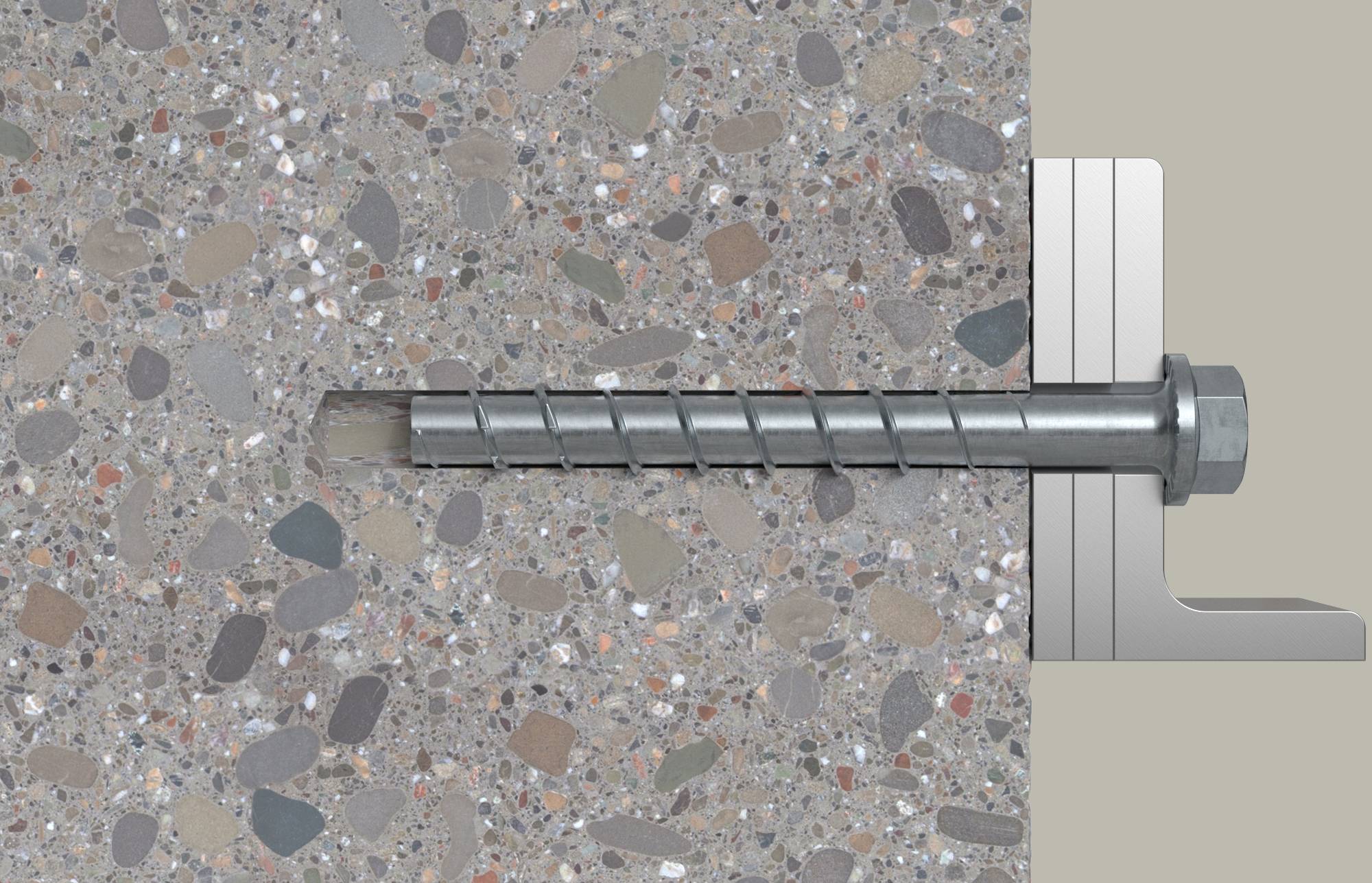

Anchoring bolt inserted into concrete, with a threaded rod extending through a wall bracket on the right.

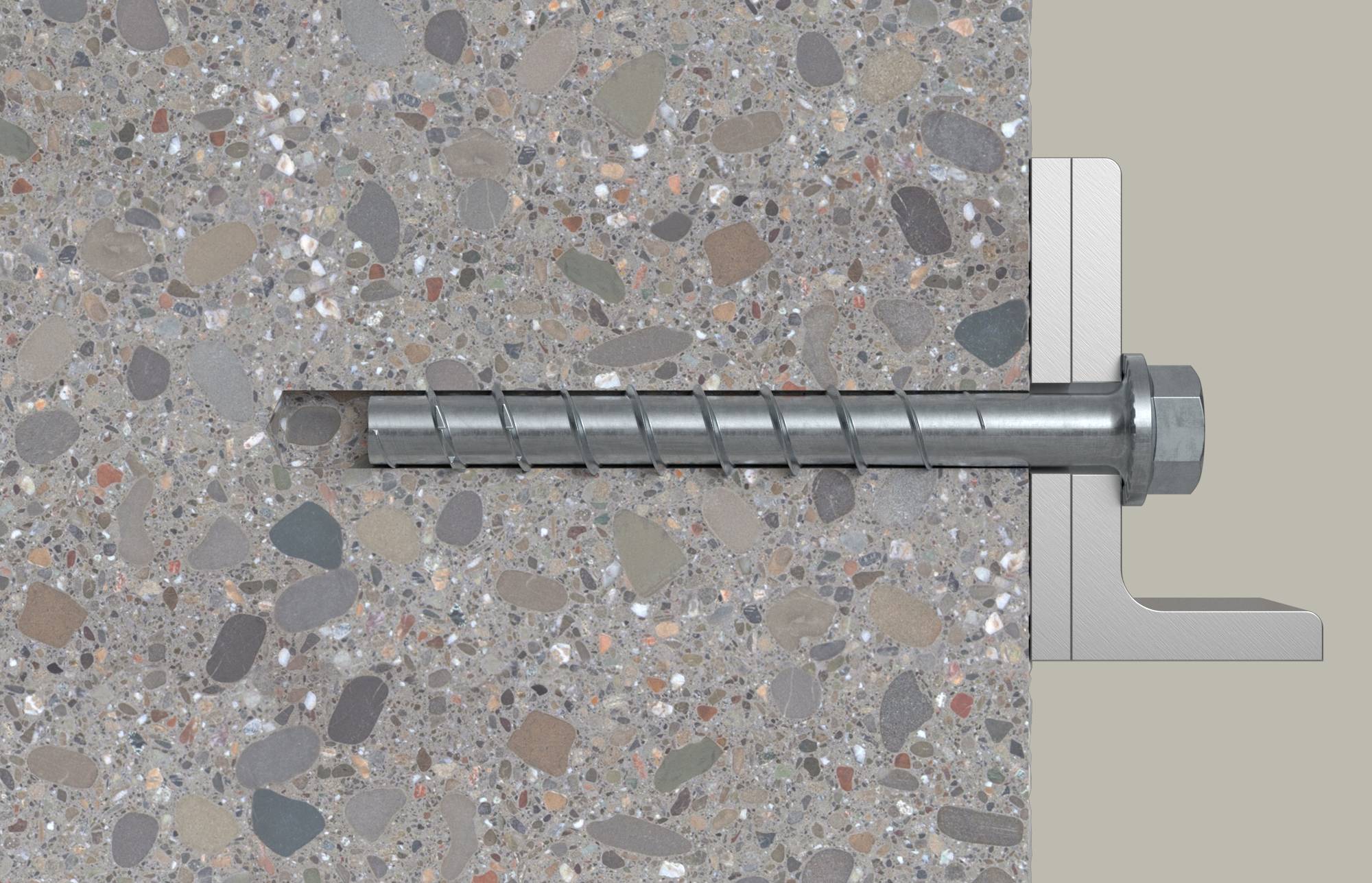

Cross-section of a concrete wall with a metal expansion anchor bolt embedded horizontally, showing the anchor head and washer on the right.
Close-up of a steel expansion anchor being inserted into a drilled hole in concrete, showing the sleeve and threaded bolt.

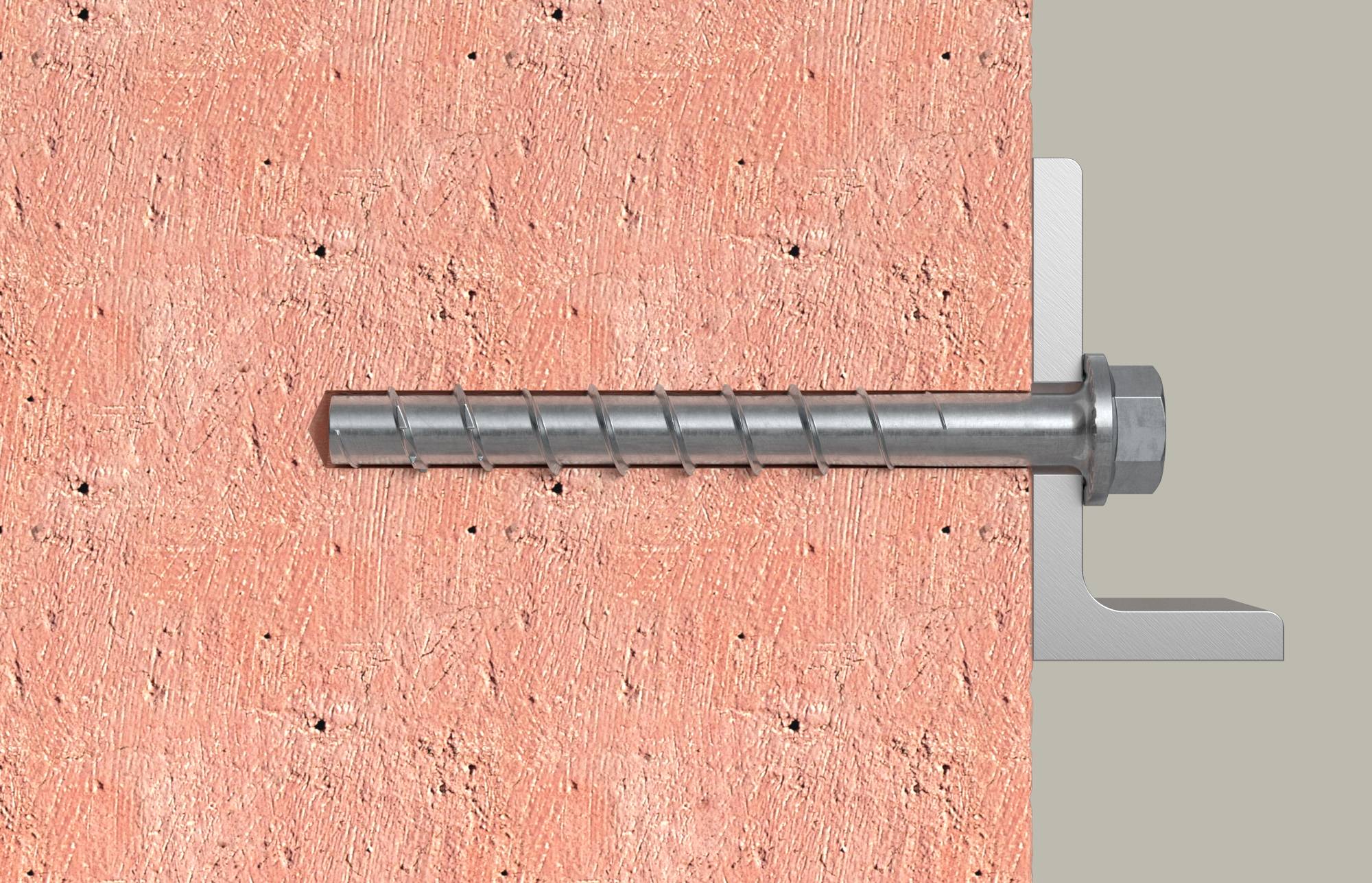

Wall anchor bolt embedded in a masonry wall, with a hex nut and L-shaped bracket securing it on the right side.<br>
1/10
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

fischer UltraCut FBS II 12 x 190 130/115/90 US hexagon with washer

  • Maximum flexibility in load and mounting part thickness thanks to up to three approved screw-in depths
  • The special saw-tooth geometry allows quick cutting into the concrete
  • The adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned

Technical specifications

  • Drive: SW 17
  • Screw-in depth with mounting part thickness: 60 / 130 mm
  • Screw-in depth with mounting part thickness 75 / 115 mm
  • Screw-in depth with mounting part thickness: 100 / 90 mm
  • Min Drill hole depth for through-hole mounting: 200 mm
  • Effective length 90 mm
Product type

Concrete screw

Drive

Hex head

Thread size

12 mm

Content

20 pc(s)

(Ø)

12 mm

Length

190 mm

Dim

(Ø x L) 12 mm x 190 mm

Head shape

Hex

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2472131 Fischer 558224 FBS II 12x190 130/115/90 US Concrete screw 12 mm 190 mm 20 pc(s)

Description

the fischer UltraCut FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.

Features

  • Maximum flexibility in load and mounting part thickness thanks to up to three approved screw-in depths
  • the special saw tooth geometry allows quick cutting into the concrete
  • For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not required for drilling holes in the floor, 3x drill diameter must be drilled deeper
  • The non-spreading anchoring (undercut) ensures the smallest edge and axle distances
  • ETA evaluation covers the use in cracked concrete, as well as the seismic performance categories C1 and C2
  • the adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned
  • the national approval regulates the multiple use of temporary anchoring (e.g. Formwork)
