Fischer 558596 Pipe clamp Massive PIPE CLAMP FRSM 364-372 M16 fvz 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

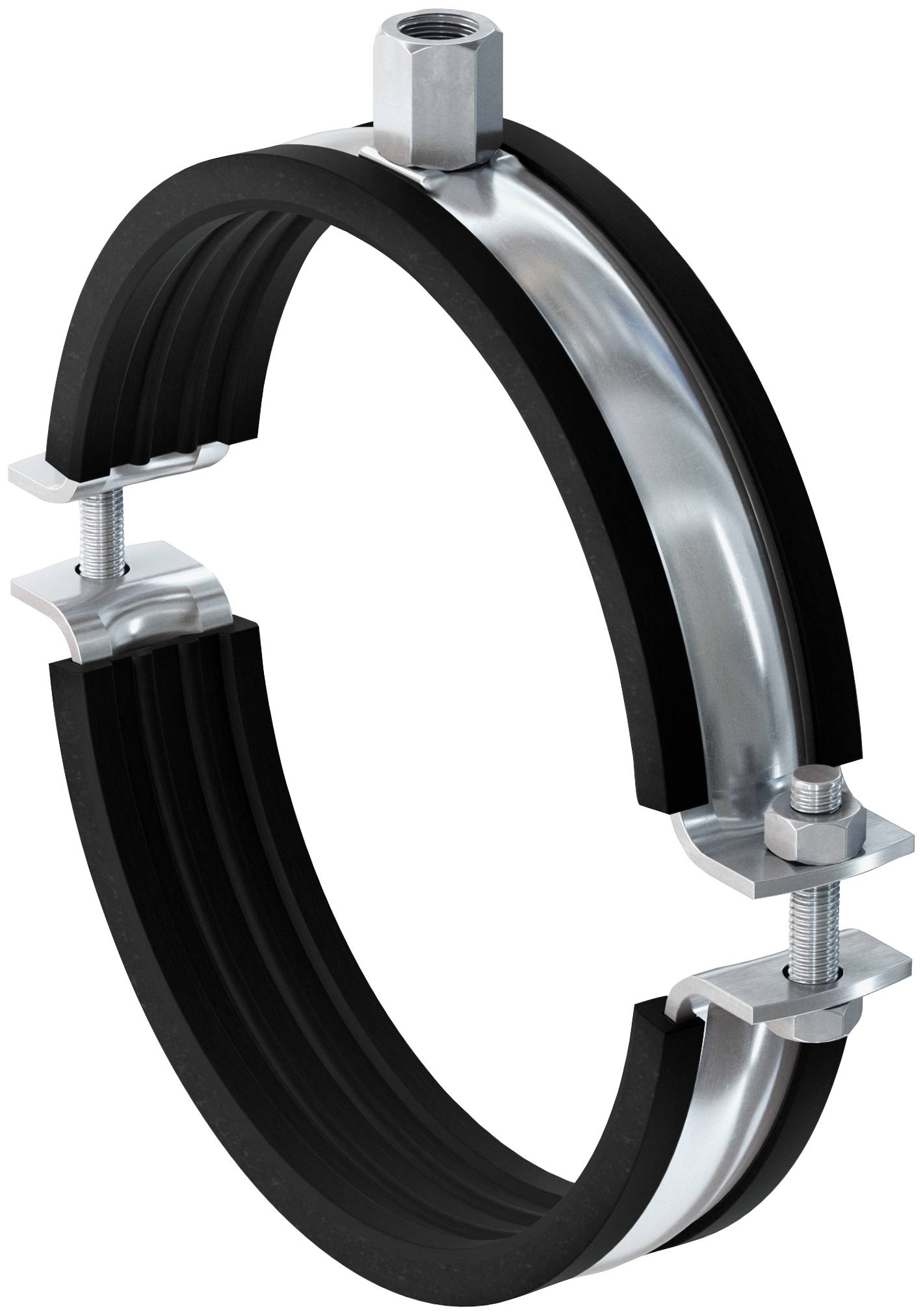

Massive PIPE CLAMP FRSM 364-372 M16 fvz
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Connection nut with M16 thread
- Sound-absorbing insert
Technical specifications
- Load level: Heavy
- Height Z 221 mm
- Max. recv. Static load (central train): 8.00 kN
- Screw plug: M16
- Insulation: Sound insulation
- Product type
Pipe clamp
- Content
1 pc(s)
- Material
Steel
- Clamping range
364 up to 372 mm
- Thread size
M16
- Thread
M16
- Material properties
hot-dip galvanized
- Width
496 mm
- Height
419 mm
- Length
221 mm
- Range (max.)
372 mm
- Clamping range (min.)
364 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472061 Fischer 558596 Pipe clamp Massive PIPE CLAMP FRSM 364-372 M16 fvz 1 pc(s)
Description

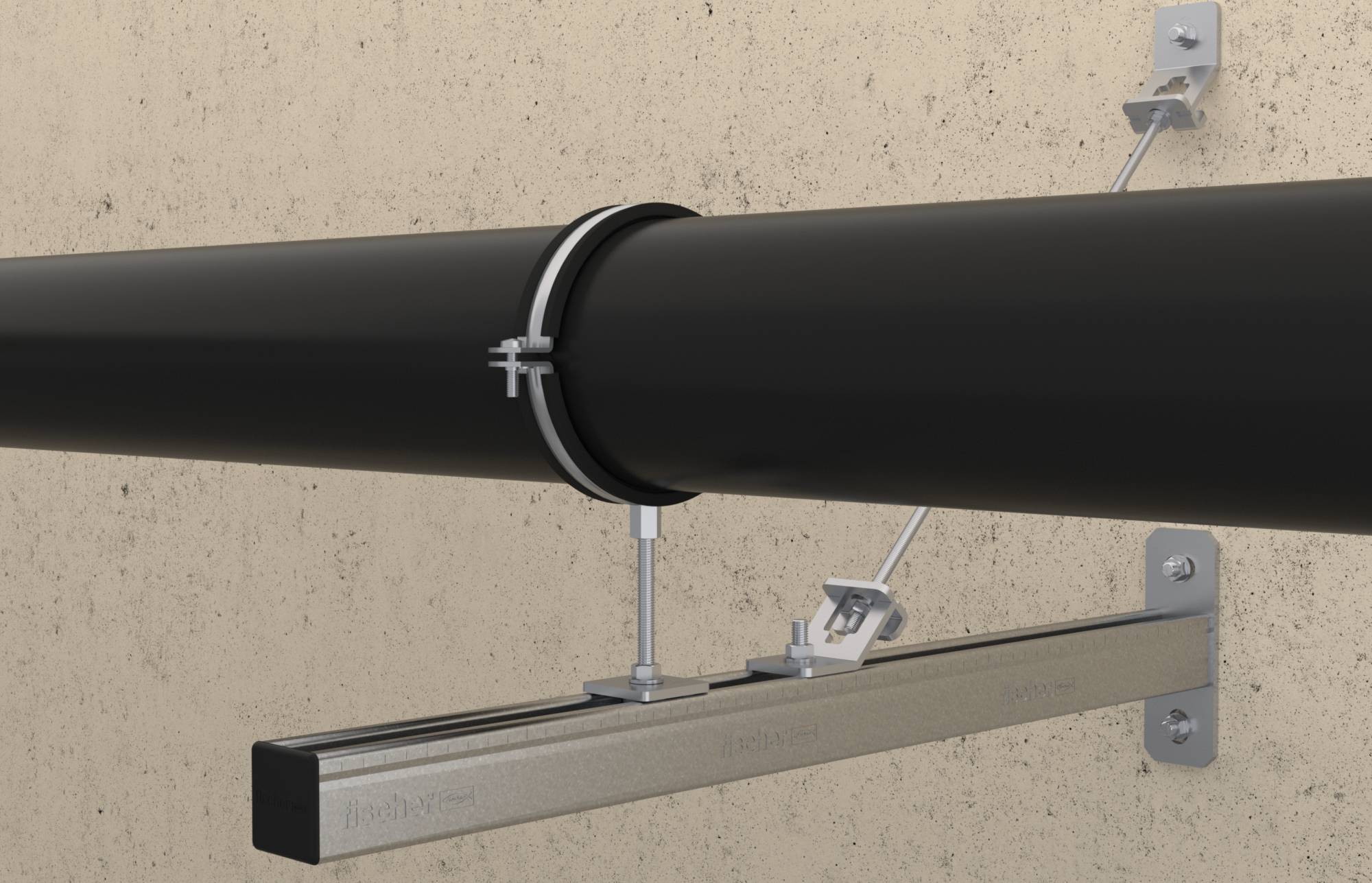

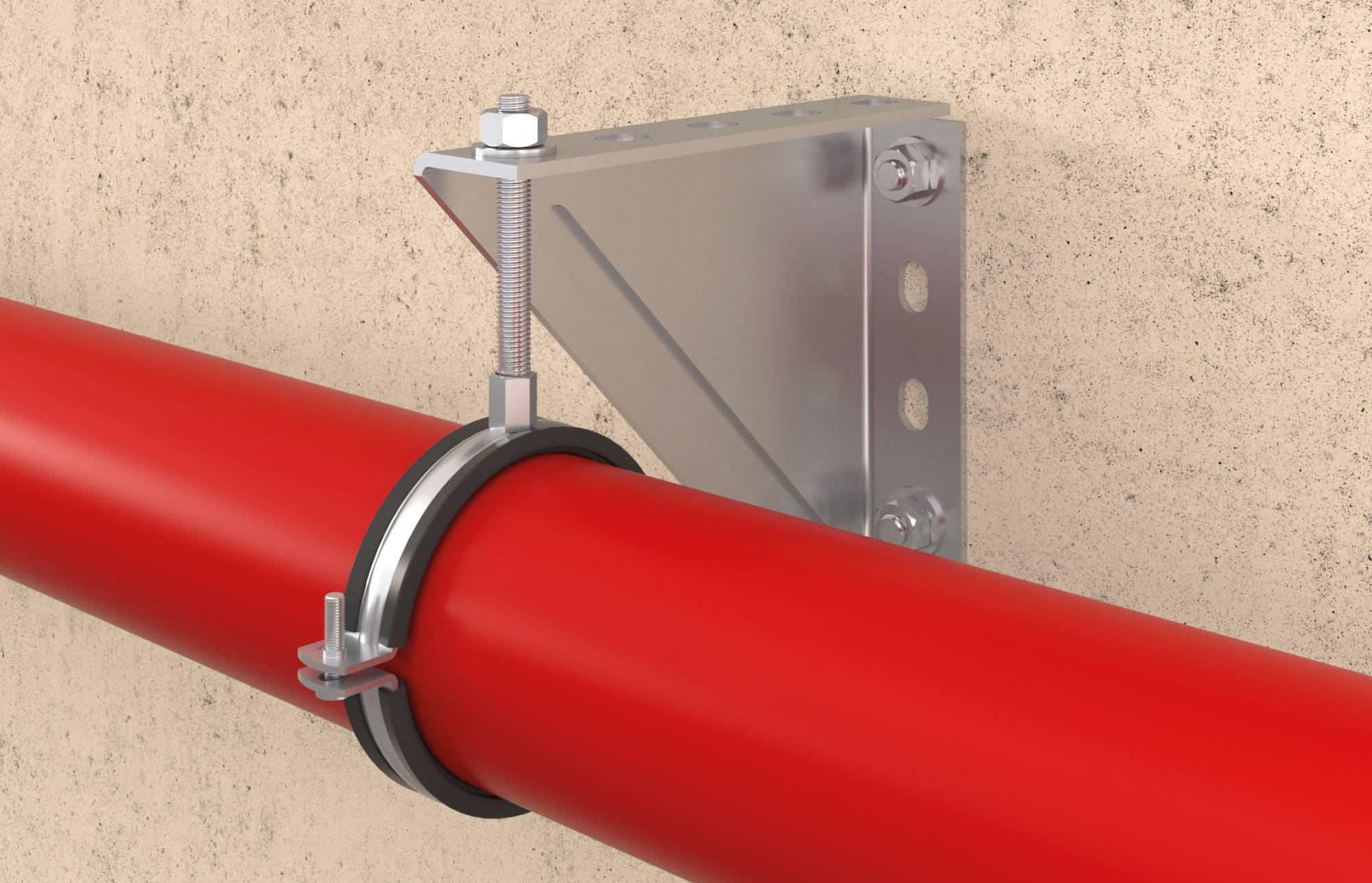

the fischer FSM 364-372 M16 fvz solid pipe clamp with sound insulation insert for fixing medium to heavy pipes with threaded rods or stock screws. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connecting nut with M16 thread for holding threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- High tested loads guarantee the safe function of the FRSM
- the connecting nut with combination thread M10/M12, M12/M16 or M16 enables an optimized storage
- the perforated clamp tape enables mounting with 2 threaded rods starting from Ø 124mm, e.g. for fixing cast roof drainage lines
- the two-screw design allows optimized adaptation to the outer diameter of the pipe
- The loss protection of the screws ensures a problem-free installation
- the surface coating provides for a high corrosion protection against environmental influences such as moisture, water, salt water
