Fischer 560970 Temperature-proof clamp Fischer FRSK 32-35 cold clamp 20 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Fischer FRSK 32-35 cold clamp
- Easy adaptation to the outer diameter of the pipe through the variable clamping range compensation and the two-screwAge-resistant material ensures consistent performanceDouble thread connection nut for flexibility at the construction siteIntegrated load distribution plate ensures the load transfer and ensures higher loads
Technical specifications
- Connection thread M8 / M10 Width B 120 mmInsulation thickness 19 mmHeight H: 100 mmHeight Z: 57 mmLength of insulation material 72 mmMax. Static load (central train): 0.10 kNNominal size: 1" inLocking screw M6
- Product type
Temperature-proof clamp
- Content
20 pc(s)
- Material
Steel
- Clamping range
32 up to 35 mm
- Thread size
M8
M10
- Material properties
zinc galvanized
- Range (max.)
35 mm
- Clamping range (min.)
32 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2699350 Fischer 560970 Temperature-proof clamp Fischer FRSK 32-35 cold clamp 20 pc(s)
Description

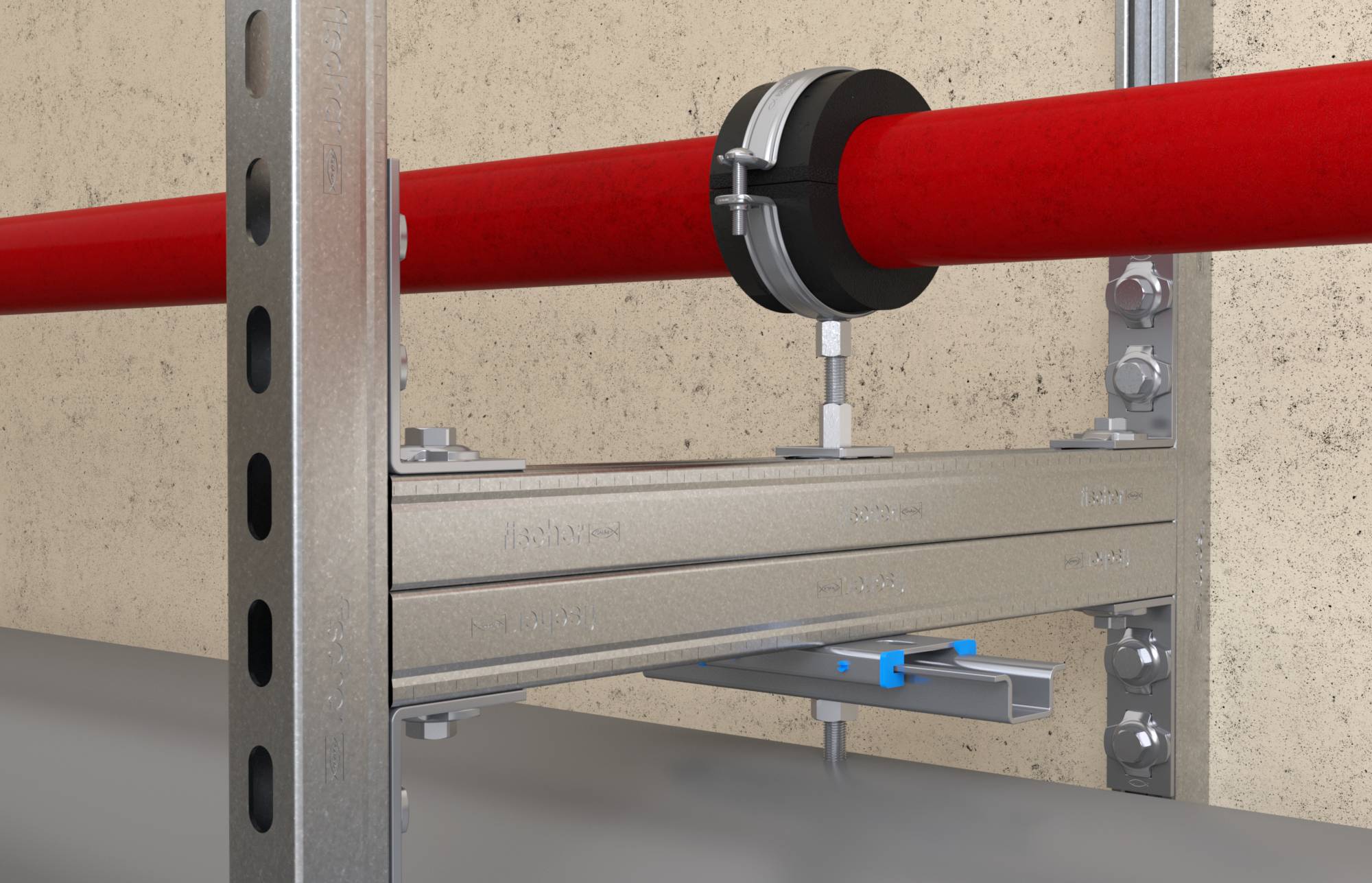

The Fischer FRSK cold clamp with integrated clamping range adjustment is a two-screw pipe clamp with quick-action cap and combined connection threads M8/M10 or M12/M16. The two-bolt version supports the optimized adaptation to the outside diameter of the pipe. The two-screw thread and the combined connection thread increase the flexibility of the mounting. This means that pipes for cooling and air-conditioning systems with an external diameter of 10 - 219 mm and an insulation thickness of 13 or 19 mm can be installed.
