Fischer 562458 Pipe clamp Joint pipe clamp 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

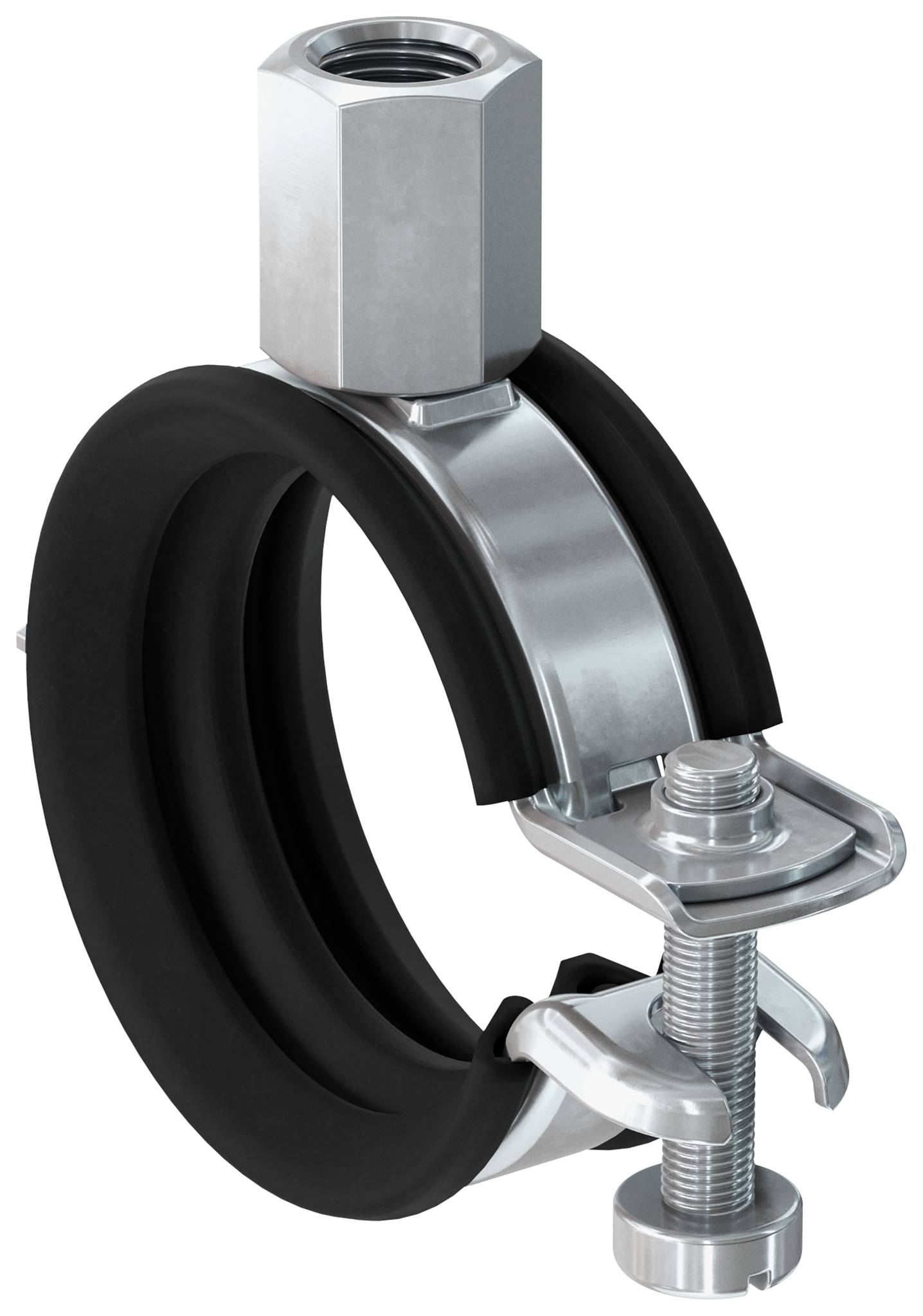

Joint pipe clamp
- With sound-proof test report for objectively tested functional safety.Complete and complete diameter clamping range for fixing each pipe size.Quick-release fastener with a rotating edge for a secure and comfortable mounting.Clip band with pronounced edges at the edge for a firm hold and a simple tube adjustment.
Technical specifications
- Width x thickness of snap band 20 x 1.8 mm
- Product type
Pipe clamp
- Content
10 pc(s)
- Material
Steel
- Clamping range
95 up to 102 mm
- Thread size
M8
- DIN standard
DIN 4109
- Thread
M8 - M10
- Material properties
zinc galvanized
- Width
134.2 mm
- Height
130.2 mm
- Range (max.)
102 mm
- Clamping range (min.)
95 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614654 Fischer 562458 Pipe clamp Joint pipe clamp 10 pc(s)
Description

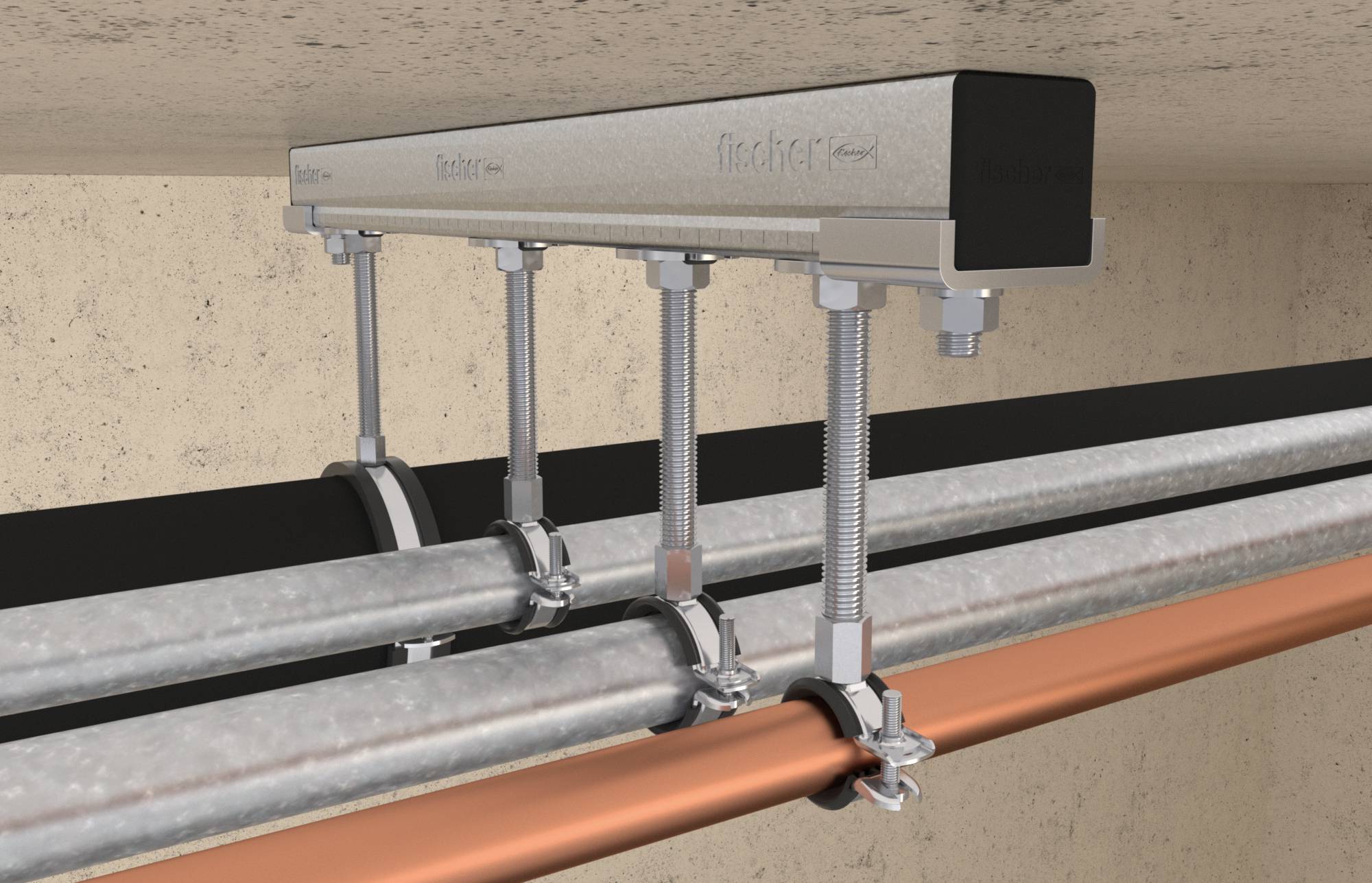

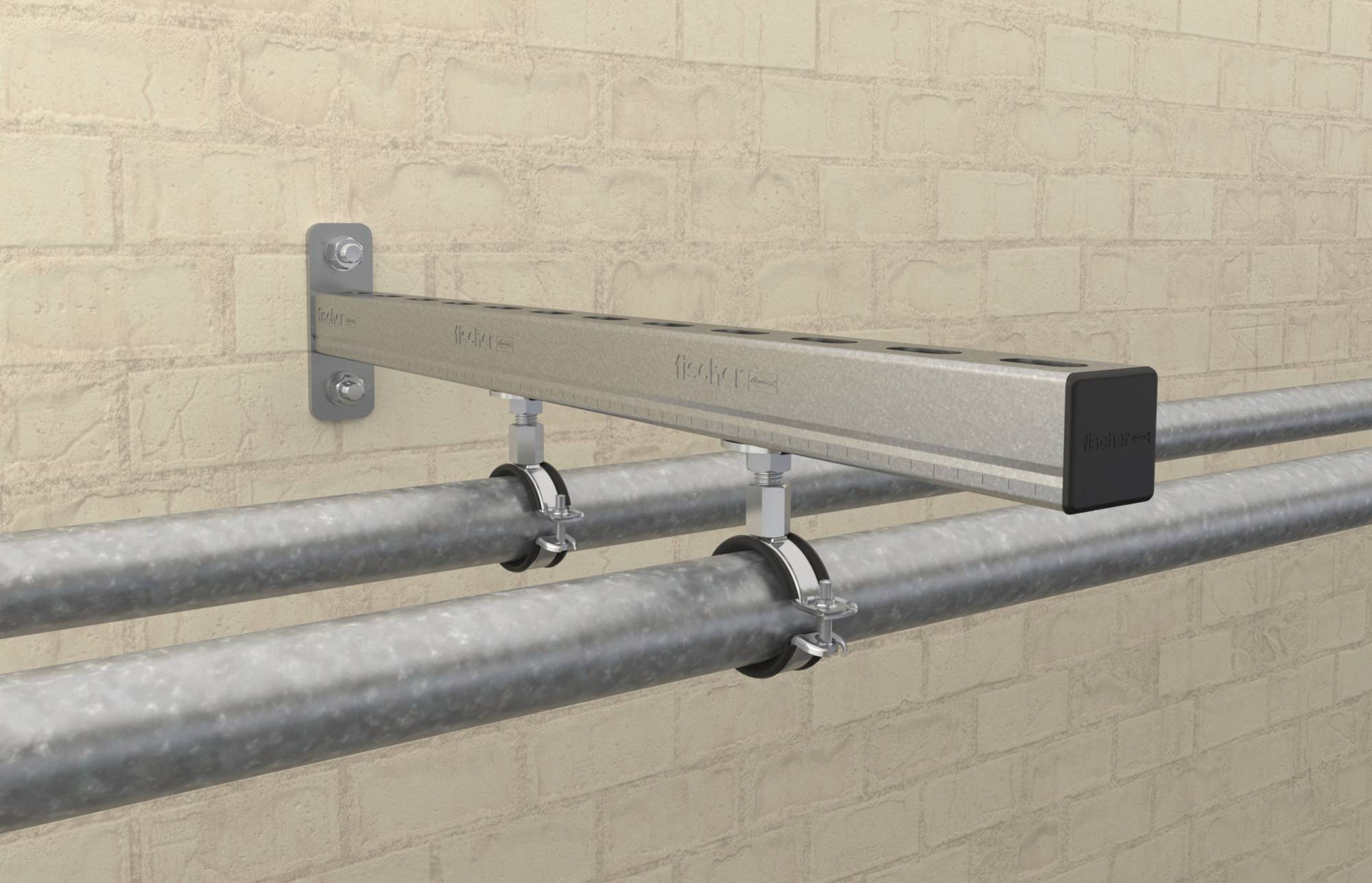

The Fischer FGRS Universal joint pipe clamp is a pipe clamp with a screw made of electroplated steel of the DD11 material quality with combined connection thread M8/M10 or thread M8. The quick-locking mechanism and the combined connection thread make installation easy and time-saving. The quick-locking mechanism ensures that the pipe is securely adjusted without spring up the clamp. This allows pipes with an external diameter of 12 - 66 mm with threaded rod or stock screw to be securely fastened indoors. The pipe clamp conforms to the requirements of DIN 4109 with a chlorine and silicone-free soundproofing.PropertiesMaterial: Steel DC01 (material no. 1.0330) according to DIN EN 10130Galvanised; galvanizedConnection nut: Resistance welded, SW13Locking screw: Cheese-head screw with slot/hexagon socket combinationMaterial: Sound insulation insert: SBR/EPDM; chlorine-free; silicone-freeHardness: 55±5° shoreATemperature range -40°C to +100°C.Fire behavior: DIN4102: Class B2
