Fischer 562609 Pipe clamp Joint pipe clamp 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

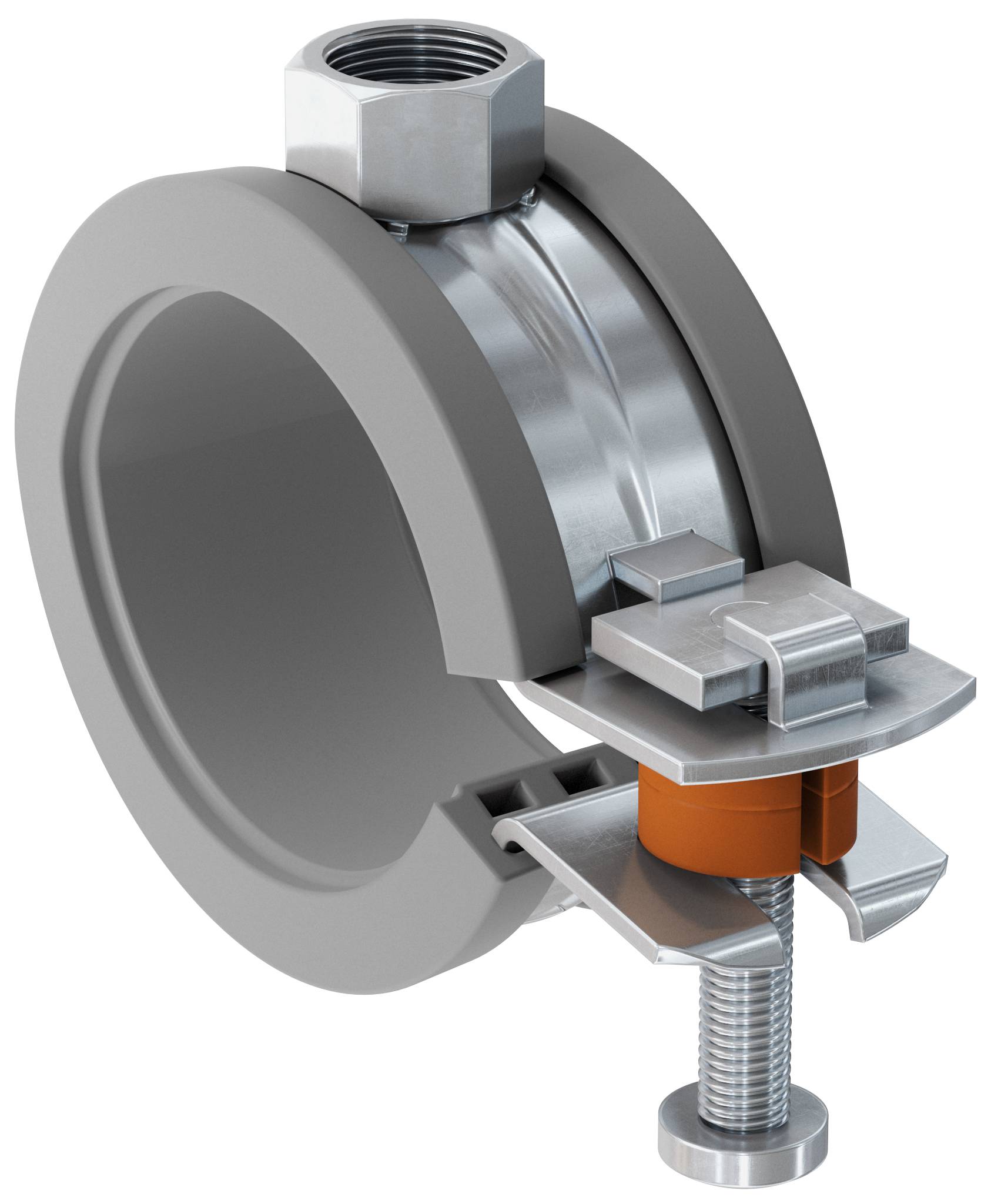

Joint pipe clamp
- Quick release makes possible a simple and time-saving mountingSoundproofing.Spacer sleeves at the screw plug.Loss prevention of the screw.
Technical specifications
- Width x thickness of snap band 20 x 1.25 mm
- Product type
Pipe clamp
- Content
100 pc(s)
- Material
Steel
- Clamping range
15 up to 19 mm
- Thread size
M8
- Thread
M8
- Material properties
zinc galvanized
- Width
51 mm
- Height
35 mm
- Range (max.)
19 mm
- Clamping range (min.)
15 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614656 Fischer 562609 Pipe clamp Joint pipe clamp 100 pc(s)
Description
The Fischer plastic tube clamp FKS 15-19 for nominal size 3/8". Quick-release fastener allows pipes to be mounted easily and quickly. The spacer sleeves on the locking screw allow the cables to slide when length is limited. Connection nut with M8 thread for receiving threaded rods or stock screws. Pipe clamps with loss prevention.PropertiesMaterial: Steel DD11 (material no. 1.0332) according to DIN EN 10111Galvanised; galvanizedConnection nut: Resistance-welded, M8, SW 13Locking screw: Flat head screw with cross recessMaterial: Sound insulation: NR/SBR/EPDM; chlorine-free; silicone-freeSound insulation: For DIN 4109Temperature range: -40°C to +110 °CHardness: 60 ± 5° shore AFire behavior: DIN 4102: Class B2
