Fischer 562616 Pipe clamp Joint pipe clamp 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

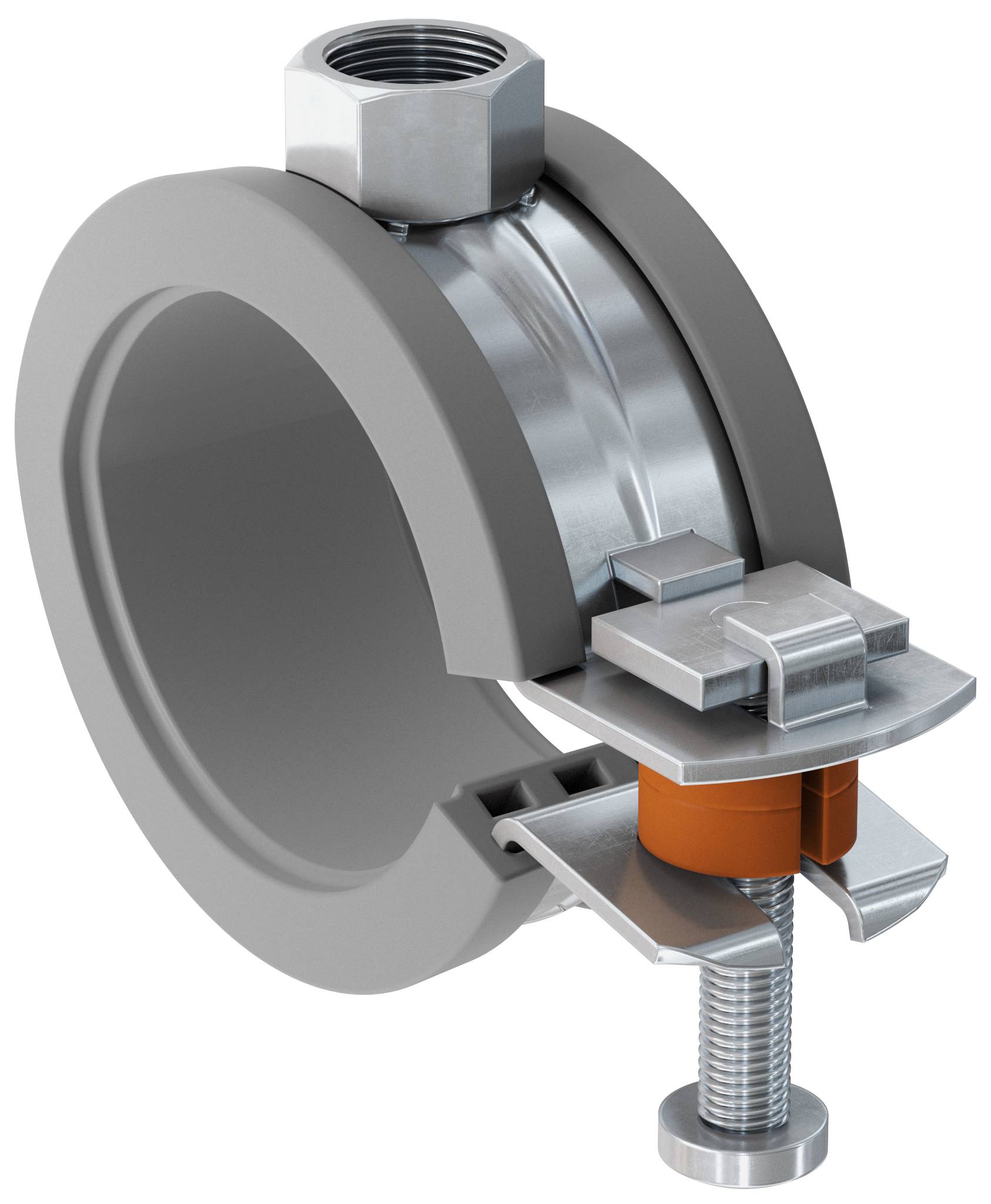

Joint pipe clamp
- Quick-release fastener enables easy and time-saving installation.Sound-absorbing insert.Spacer sleeves on the screw plug.Loss protection of the screw.
Technical specifications
- Width x thickness of snap band 20 x 1.25 mm
- Product type
Pipe clamp
- Content
50 pc(s)
- Material
Steel
- Clamping range
56 up to 63 mm
- Thread size
M8
- DIN standard
DIN 4109
- Thread
M8
- Material properties
zinc galvanized
- Width
99 mm
- Height
75 mm
- Range (max.)
63 mm
- Clamping range (min.)
56 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614663 Fischer 562616 Pipe clamp Joint pipe clamp 50 pc(s)
Description
The Fischer plastic tube clamp FKS 15-19 for nominal size 3/8". Quick-release fastener allows pipes to be mounted easily and quickly. The spacer sleeves on the locking screw allow the cables to slide when length is limited. Connection nut with M8 thread for receiving threaded rods or stock screws. Pipe clamps with loss prevention.PropertiesMaterial: Steel DD11 (material no. 1.0332) according to DIN EN 10111Galvanised; galvanizedConnection nut: Resistance-welded, M8, SW 13Locking screw: Flat head screw with cross recessMaterial: Sound insulation: NR/SBR/EPDM; chlorine-free; silicone-freeSound insulation: For DIN 4109Temperature range: -40°C to +110 °CHardness: 60 ± 5° shore AFire behavior: DIN 4102: Class B2
