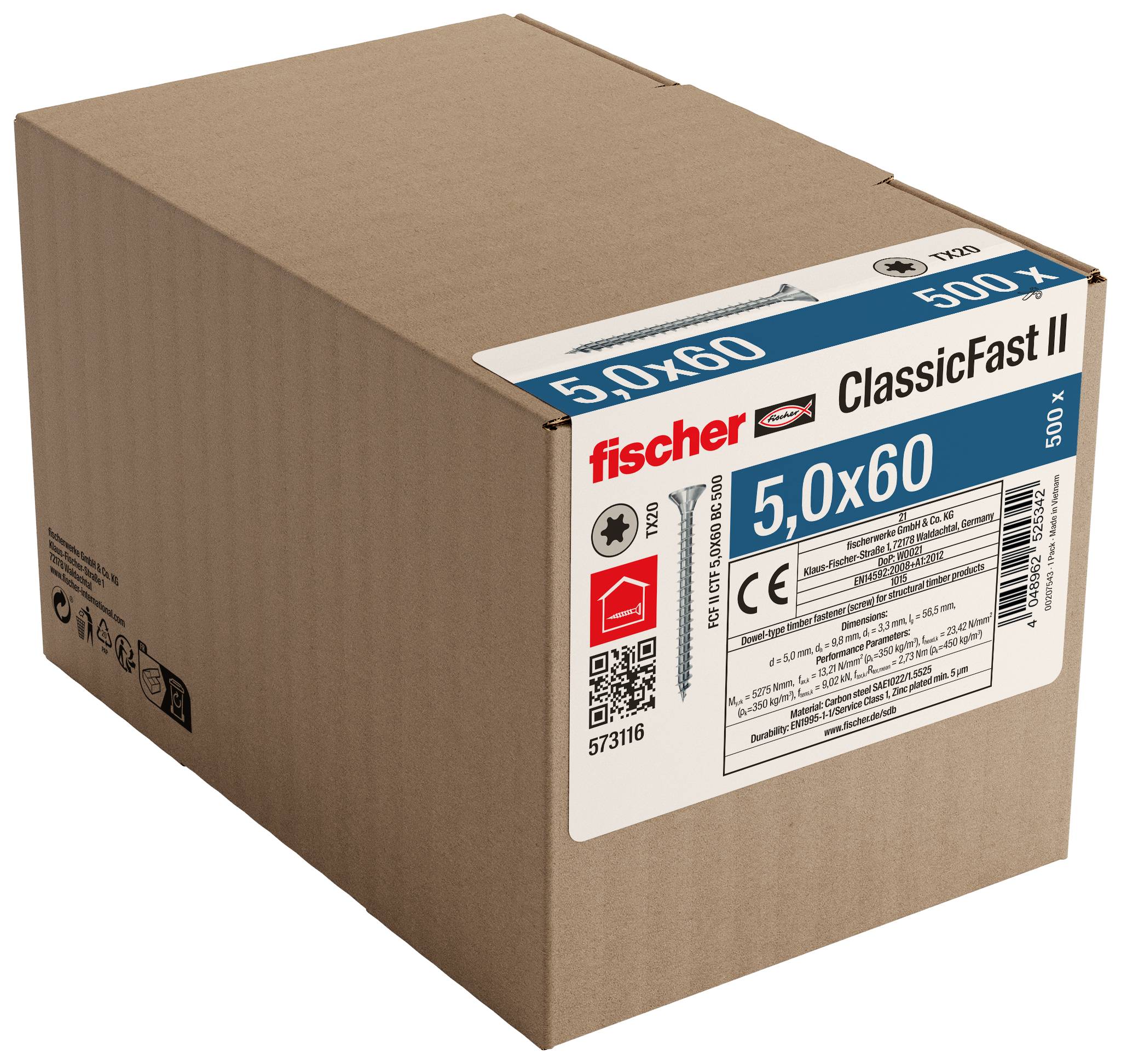

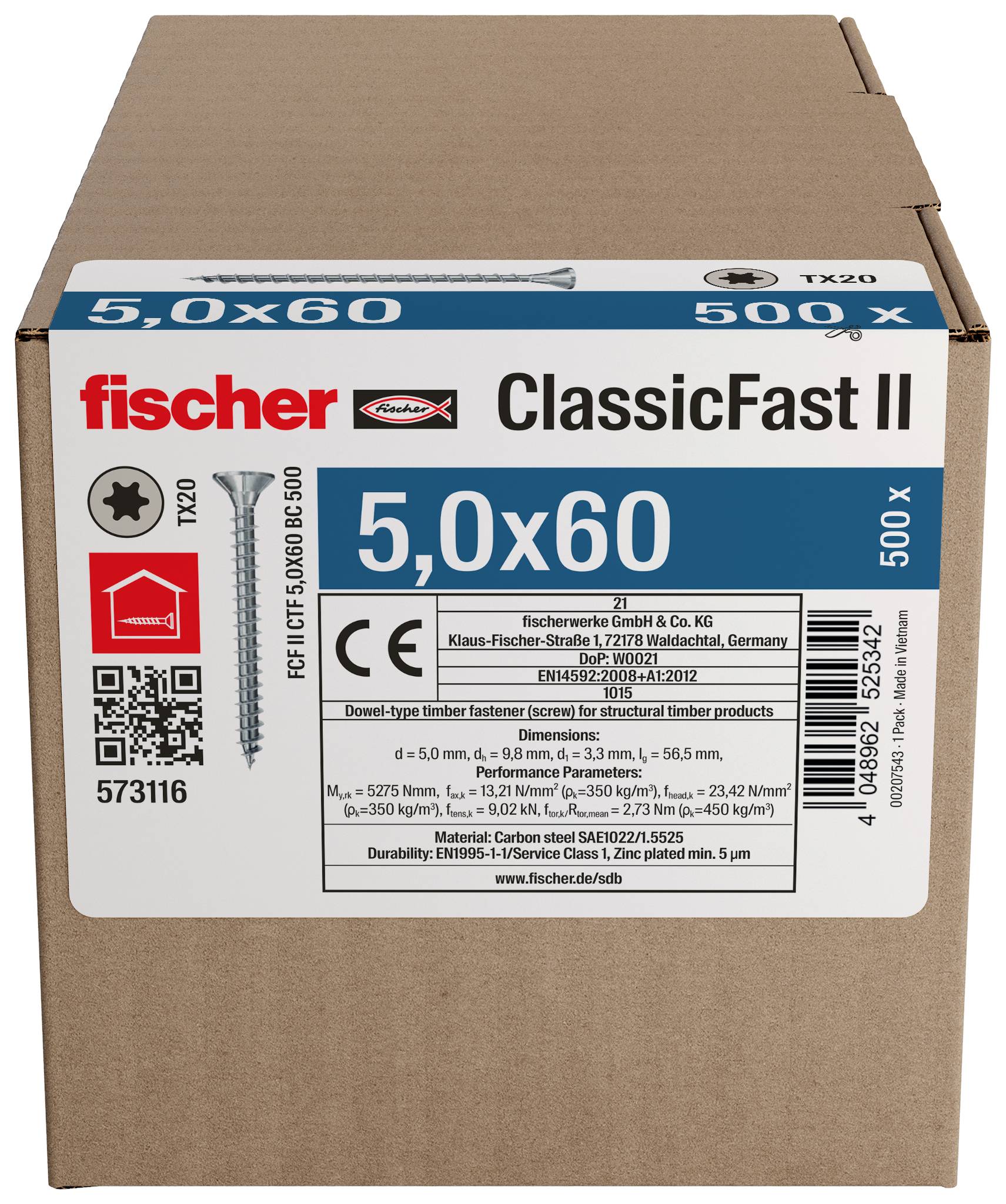

Fischer 573116 Spax screw 60 mm TX 500 pc(s)

EAN:
Part number:
Item no:
1/7
Datasheet (PDF)
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

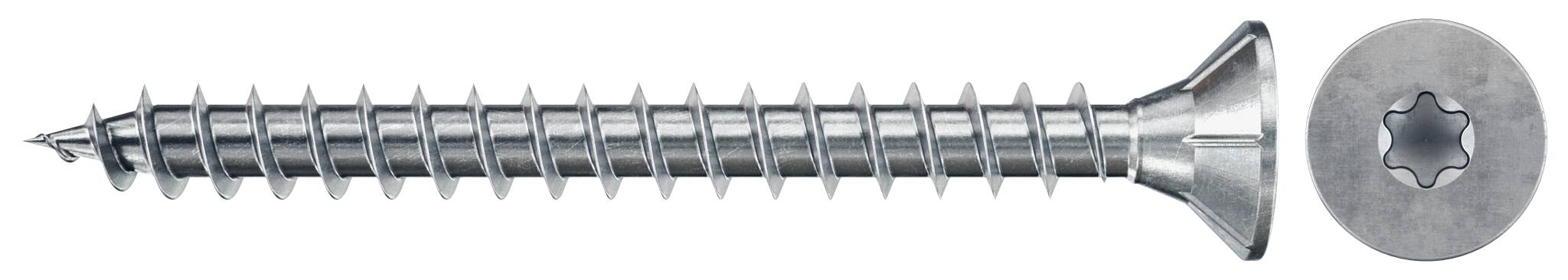

Fischer 573116 Wood Screws 5x60mm TX20 Countersunk Zinc plated

  • Thread form extends along the shank to deliver firm grip and minimise withdrawal in timber substrates
  • TX20 drive interface reduces cam‑out risk during powered insertion for faster installation
  • Countersunk head permits flush seating to achieve a level finish with the work surface
  • Zinc plating provides a corrosion‑resistant surface layer for use in standard interior and sheltered exterior applications

Technical specifications

Product type

Spax screw

Drive

TX

Length

60 mm

Head shape

Countersunk

Content

500 pc(s)

Documents & Downloads

Datasheet

Datasheet 3552986 Fischer 573116 Spax screw 60 mm TX 500 pc(s)

User & Safety Instructions

User & Safety Instructions 3552986 Fischer 573116 Spax screw 60 mm TX 500 pc(s)

Description

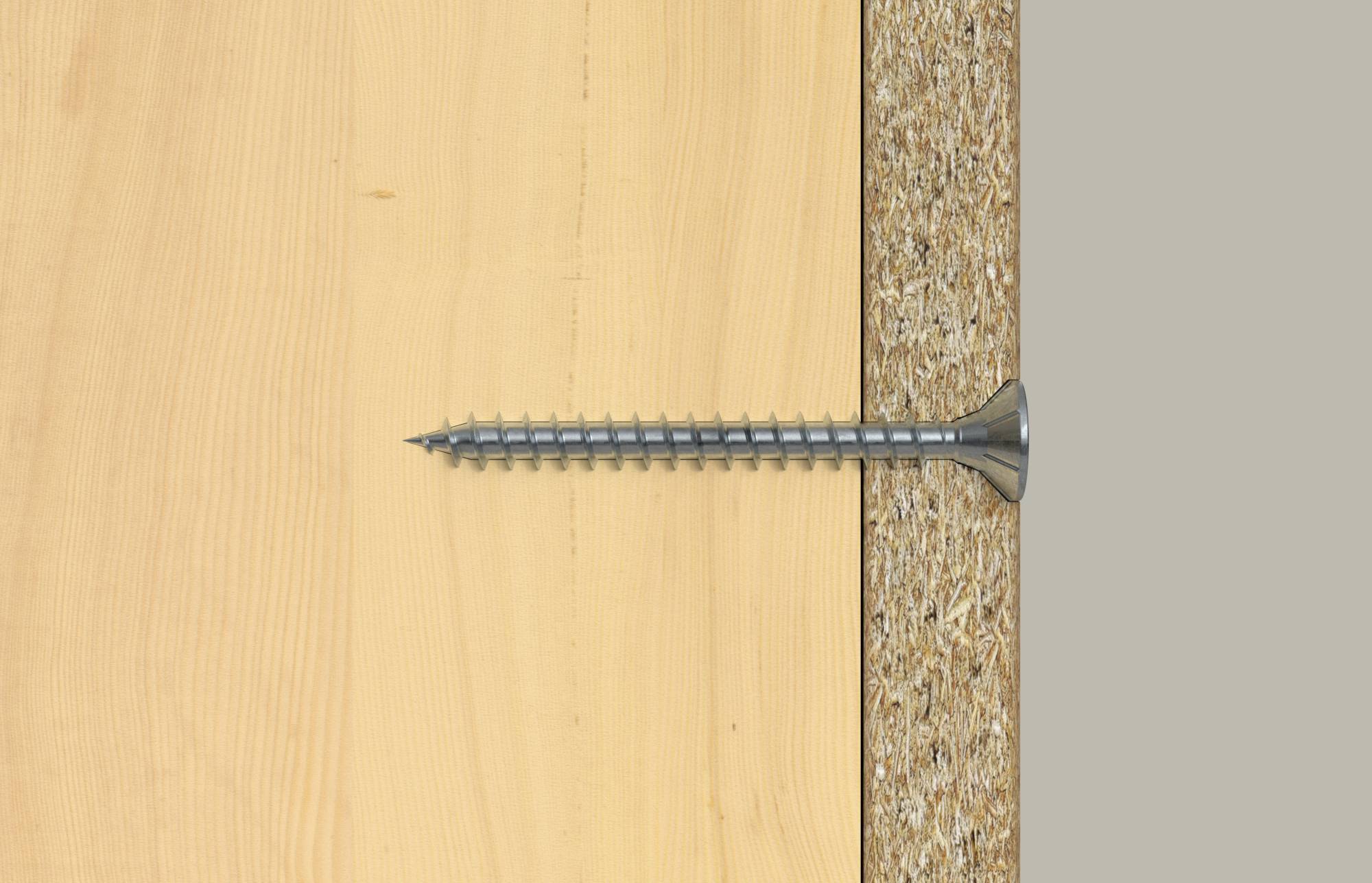

This product is a timber fastener designed to join wooden components by converting rotational torque into axial clamping force. The screw is driven with a TX20 bit, pulling the workpieces together as the threaded portion cuts into the material and the unthreaded shank permits tighter bearing of the head. The countersunk profile enables the head to sit flush once fully engaged, avoiding protrusions. A plated surface finish reduces surface oxidation, helping maintain performance where some moisture exposure occurs. Typical use includes general joinery and furniture assembly where mechanical retention and a flush finish are required.

Features

  • Diameter: 5mm
  • Length: 60mm
  • Thread length: 54mm
  • Drive type: TX20
  • Head type: Countersunk
  • Finish: Zinc‑plated
