Fischer 574124 Spax screw 4.5 mm 50 mm TX Non-corrosive steel 200 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

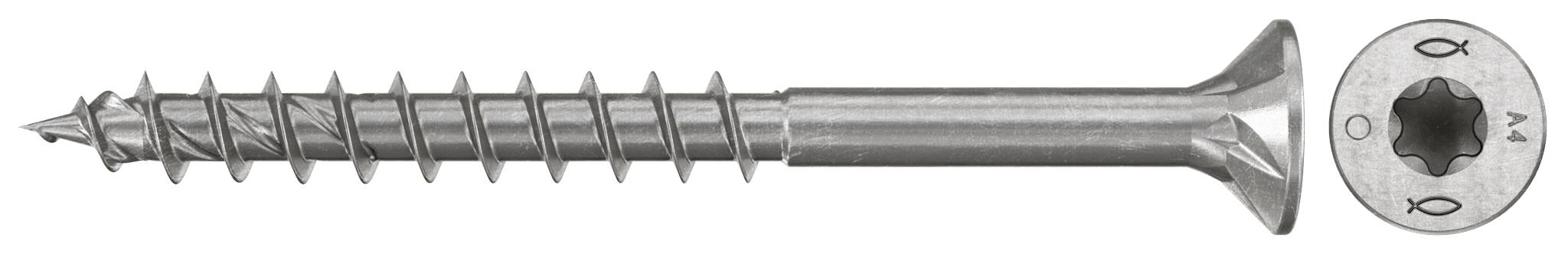

Fischer Powerfast FPF II CTP 4.5 x 50 A4 200 chipboard screw, countersunk head, TX drive, partial thread, A4 stainless steel, 200 pieces
- The increased thread pitch of the screw reduces the screw-in time considerably.
- The screw tip with the three ribs ensures quick bite action and pre milling.
- The shaft milling ribs in combination with the core milling cutter geometry noticeably reduce the screw-in resistance.
- The PowerFast II is a screw with tested loads in the fischer plug (e.g. DuoPower or UX).
Technical specifications
- Shaft diameter: 3.2 mm
- Screw dimensions 4.5 x 50 mm
- Thread distribution: Pitch thread
- Thread type: Coarse
- Tip form: Sharp
- Material quality A4
- Thread length: 30 mm
- High-performance sliding coating: Yes
- Stainless steel category according to ISO 3506: A4
- Kern diameter 2.75 mm
- Head height 2.7 mm
- Head diameter 8.8 mm
- Bit size (numeric): 20
- 90° reduction
- Drive: TX20
- Combination thread: No.
- Head hole: No.
- Fixing thread: No.
- With hole-enlarging wings: No.
- With pin in screw slot: No.
- Shaft milling ribs: No.
- Tip with milling ribs: Yes
- Distance thread: No.
- Different drilling tip material: No.
- Strip magazine package: No.
- Countersunk: Yes
- Test mark / Approvals: ETA - European Technical Assessment
- Product type
Spax screw
- Drive
TX
- Material
Non-corrosive steel
- (Ø)
4.5 mm
- Length
50 mm
- Head shape
Hex
- Dim
(Ø x L) 4.5 mm x 50 mm
- Content
200 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3760771 Fischer 574124 Spax screw 4.5 mm 50 mm TX Non-corrosive steel 200 pc(s)
Description

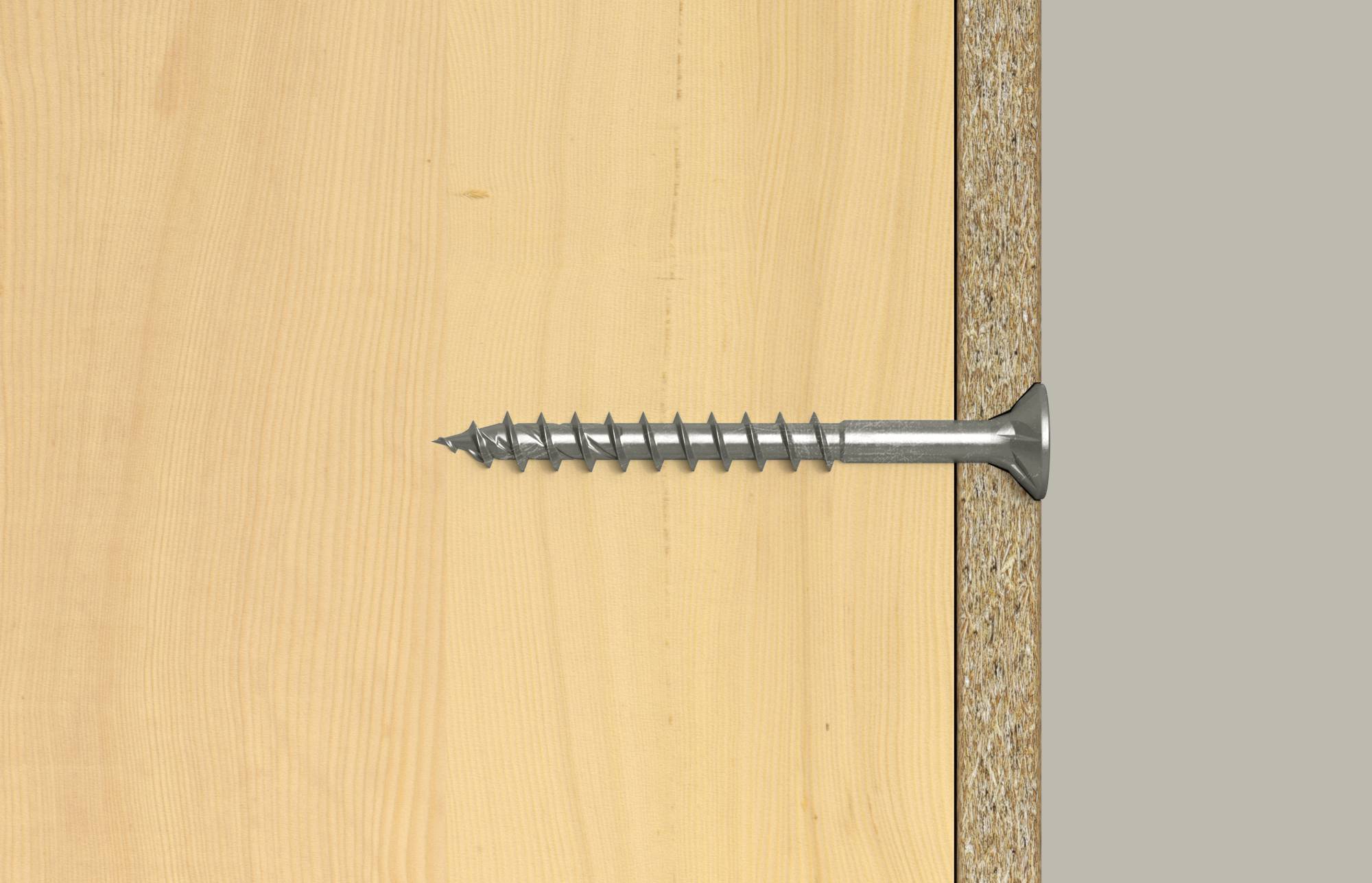

The Fischer PowerFast FPF II CTP A4 is a stainless steel A4 screw with partial thread and inner star TX mount. The countersunk head allows flush mounting in the wood. The design with partial thread makes it possible to securely tighten wooden elements. The screw is suitable for securing load-bearing components in coated wood, hardwood, soft wood and wood joints.
