Fischer 60023 Clamp SCH 1623 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Content
50 pc(s)
- Material
Nylon
- Clamping range
16 up to 23 mm
- Material properties
halogen-free
- Range (max.)
23 mm
- Clamping range (min.)
16 mm
- Material (details)
SCH 1623
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 479287 Fischer 60023 Clamp SCH 1623 50 pc(s)
Description

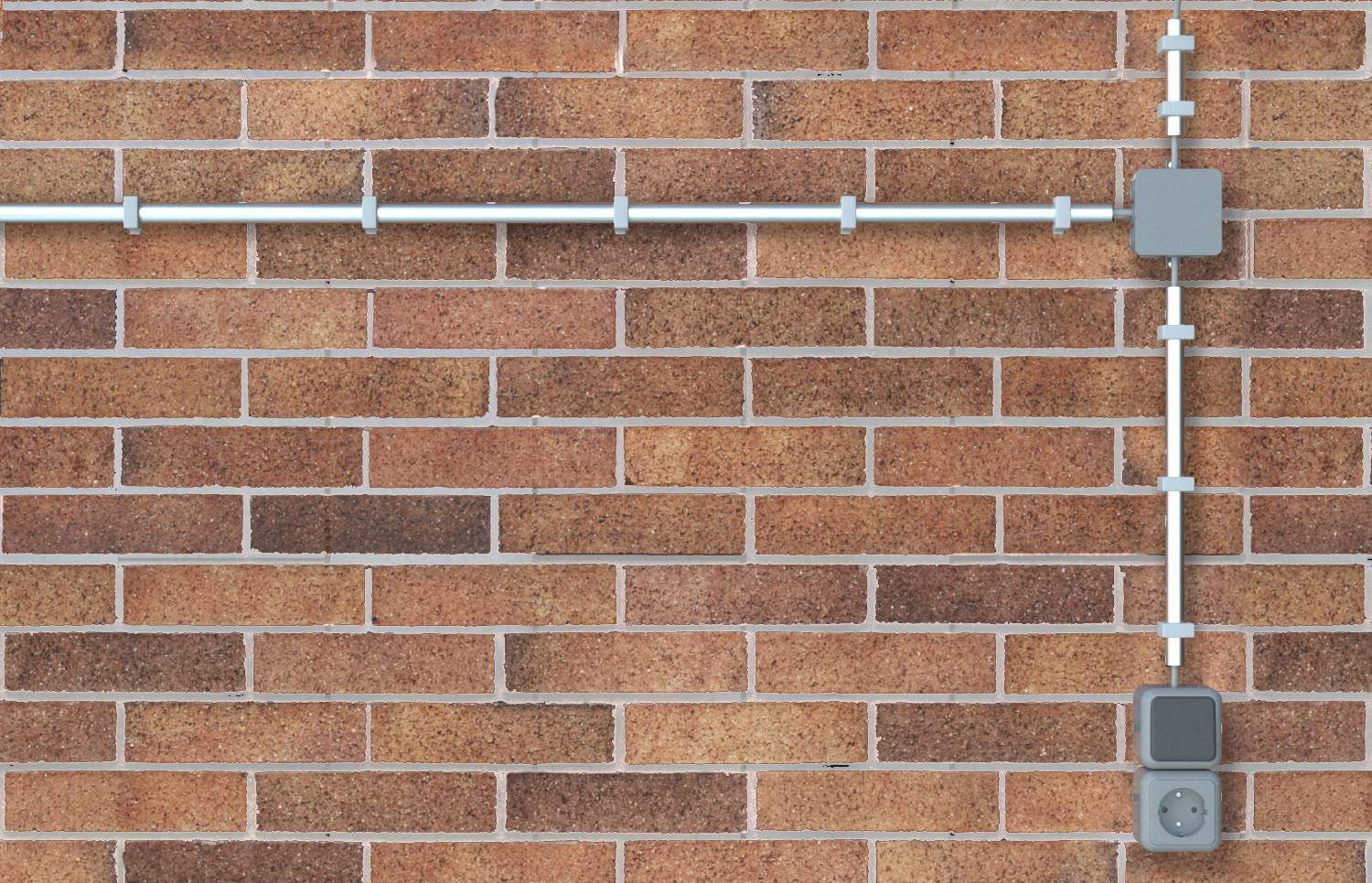

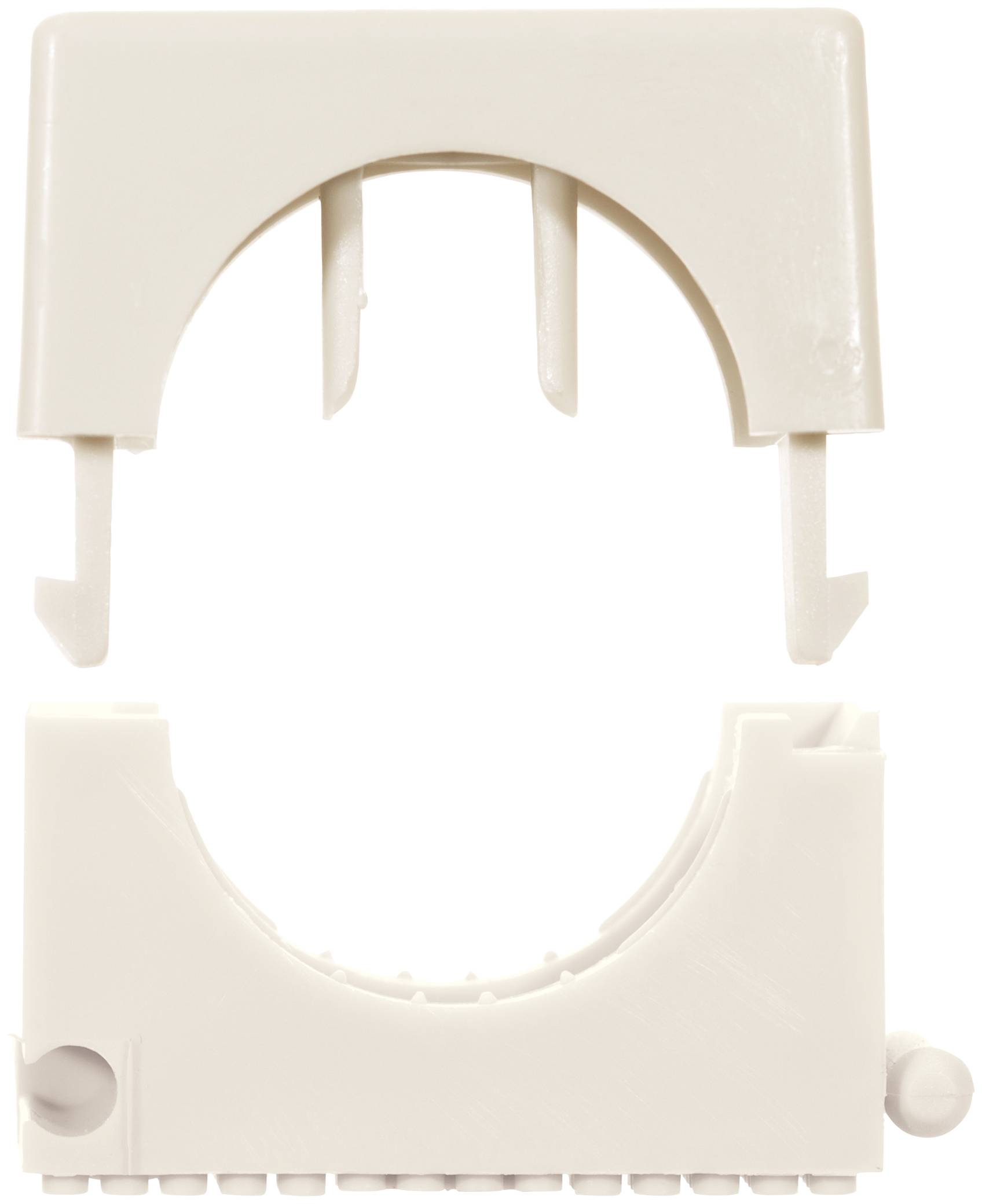

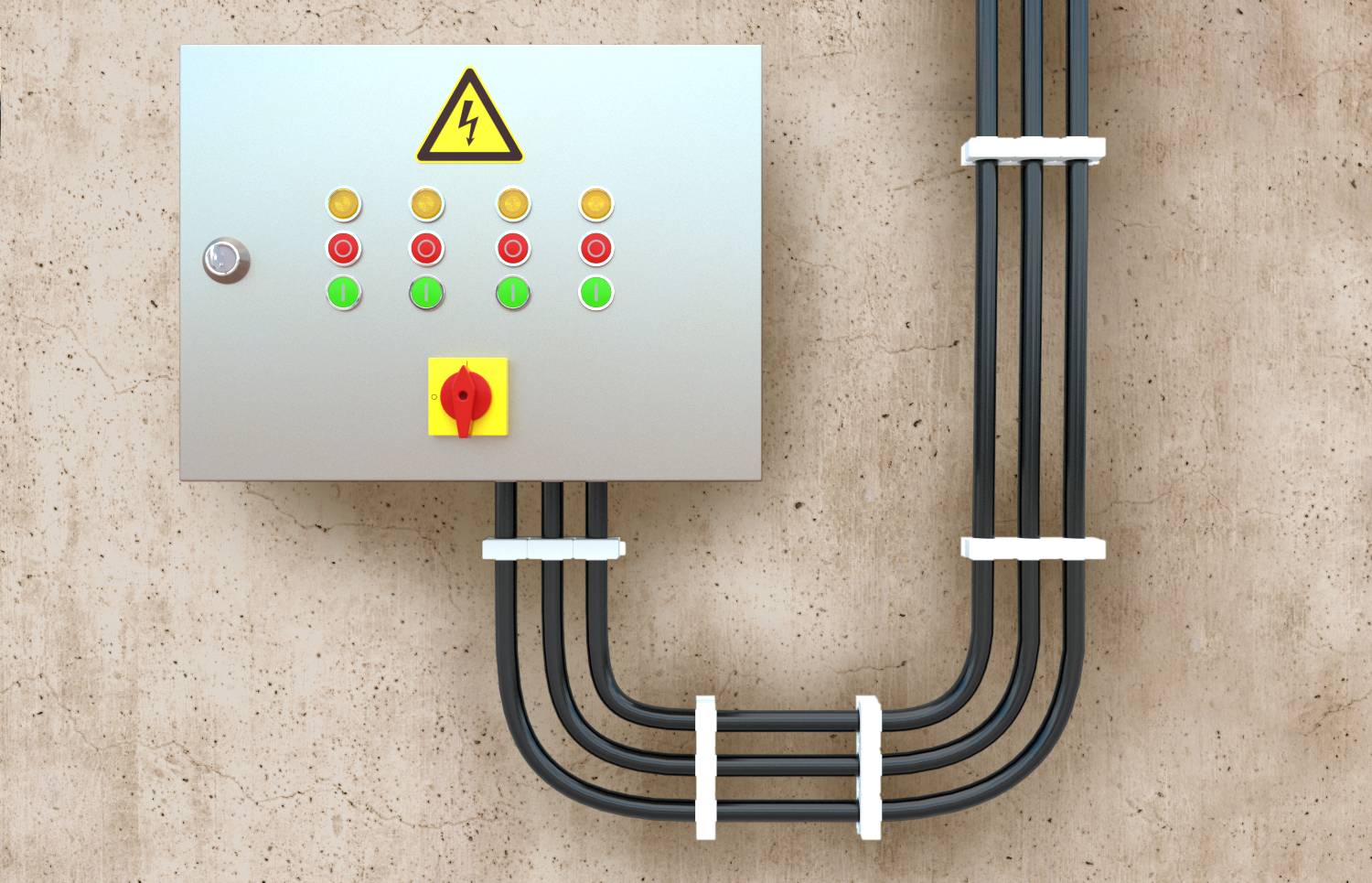

The fishermen clamp SCH is a mounting solution for cable and plastic insulating pipes with different diameters. The clip is connected to the Fischer Nail dowel N 5 installed. The breaking of the wings the nail screw the dowels sleeve against the drill hole wall. Afterwards the plastic insulating tube and the cable into the clamp is inserted and by plugging the locking bracket fixed.
This text is machine translated.
This text is machine translated.
Features
- Made of high-quality nylon without halogens
- High Flexibility: Elastic spring tongue takes cable with different diameters. This reduces storage capacity
- Connect up to three pipe clips. This saves additional drilling
- Quick fixing with fischer Nail dowel N 5
- Inconspicuous mounting thanks to transparent nylon.
