Fischer DuoXpand FUS Plug (long) 120 mm 8 mm 562154 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
fischer DuoXpand long shaft dowel 8 x 120 FUS hexagon head screw with washer
- Bites perfectly into all building materials and enables universal use
- The special lamellar geometry spreads in the respective building material gently
- The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
- Approved multiple mounting of non-load-bearing systems in concrete and masonry
- Side ribs prevent twisting in the drill hole for reliable mounting
- Pre-assembled safety screw with countersunk head
Technical specifications
- Drive: Tx30 / SW10
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel (galvanized)
- Length
120 mm
- Dim
(Ø x L) 8 mm x 120 mm
- Suitable for
Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet
- Content
50 pc(s)
- Features
incl. screw
incl. washer
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2526895 Fischer DuoXpand FUS Plug (long) 120 mm 8 mm 562154 50 pc(s)
Description

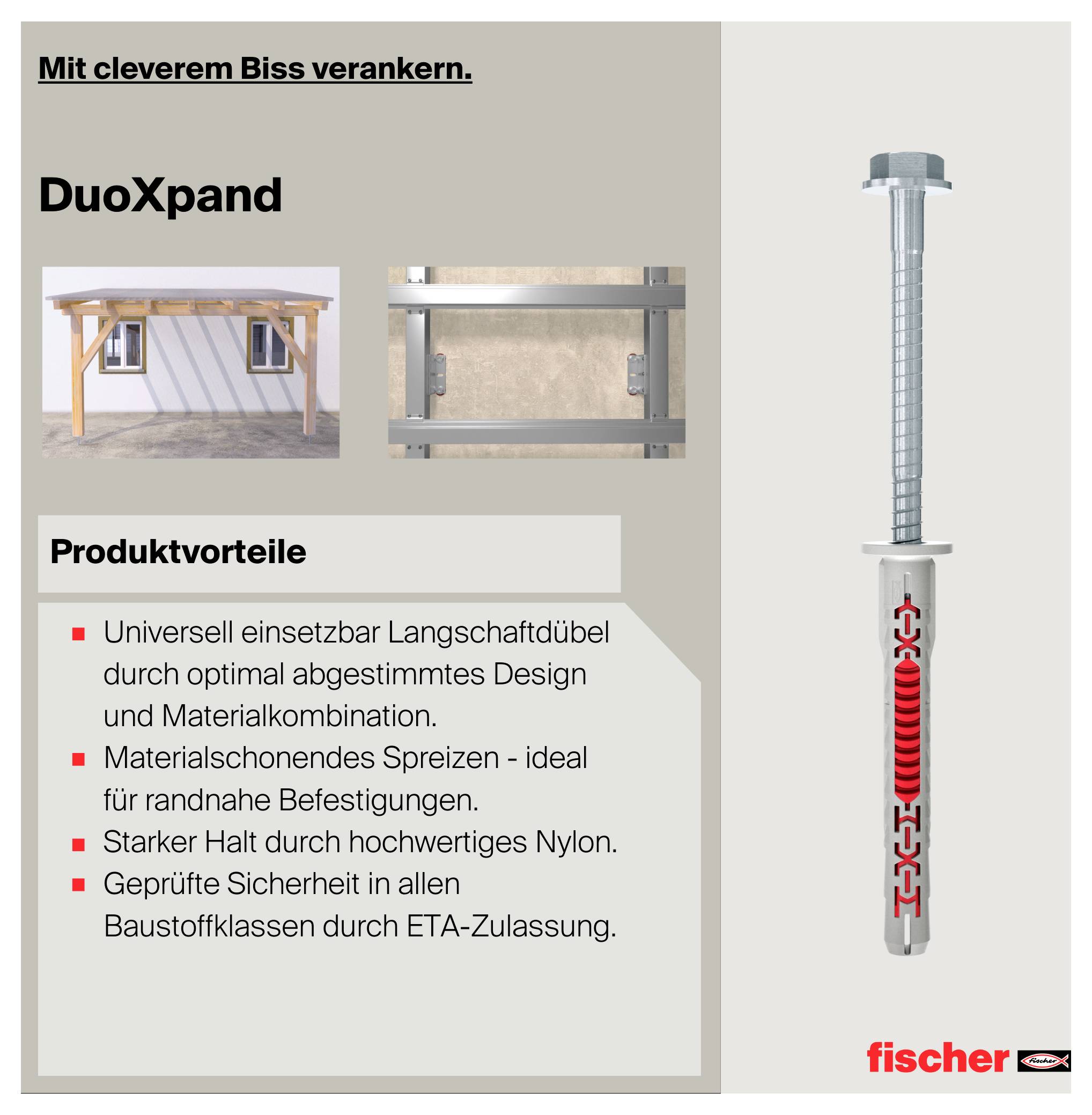

the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer hexagonal safety screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes the diameters of 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the cap screw and molded washer is especially suitable for fixing metal structures.
This text is machine translated.
This text is machine translated.
Features
- The gray body is made of high-quality nylon for strong support, while the red material component provides flexibility and optimal spread
