Fischer DuoXpand T Plug (long) 80 mm 10 mm 562155 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

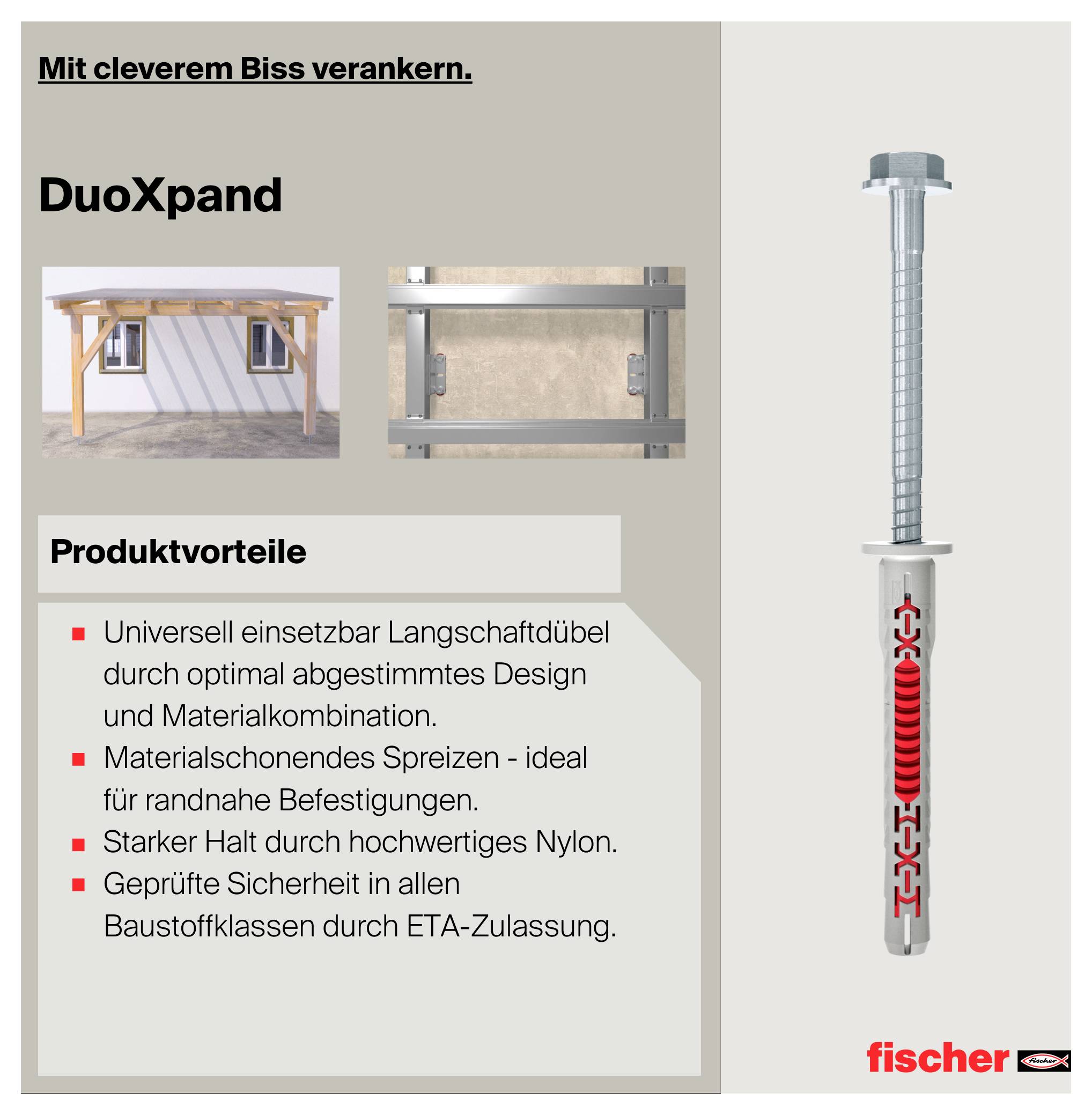

fischer DuoXpand 10 x 80 T long shaft plug countersunk screw
- Bites perfectly into all building materials and enables universal use
- The special lamellar geometry spreads in the respective building material gently
- The pre-assembled safety screw is perfectly matched to the dowel and saves time during installation
- Approved multiple mounting of non-load-bearing systems in concrete and masonry
- Side ribs prevent twisting in the drill hole for reliable mounting
- Pre-assembled safety screw with countersunk head
Technical specifications
- Drive: Tx40
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel (galvanized)
- Length
80 mm
- Dim
(Ø x L) 10 mm x 80 mm

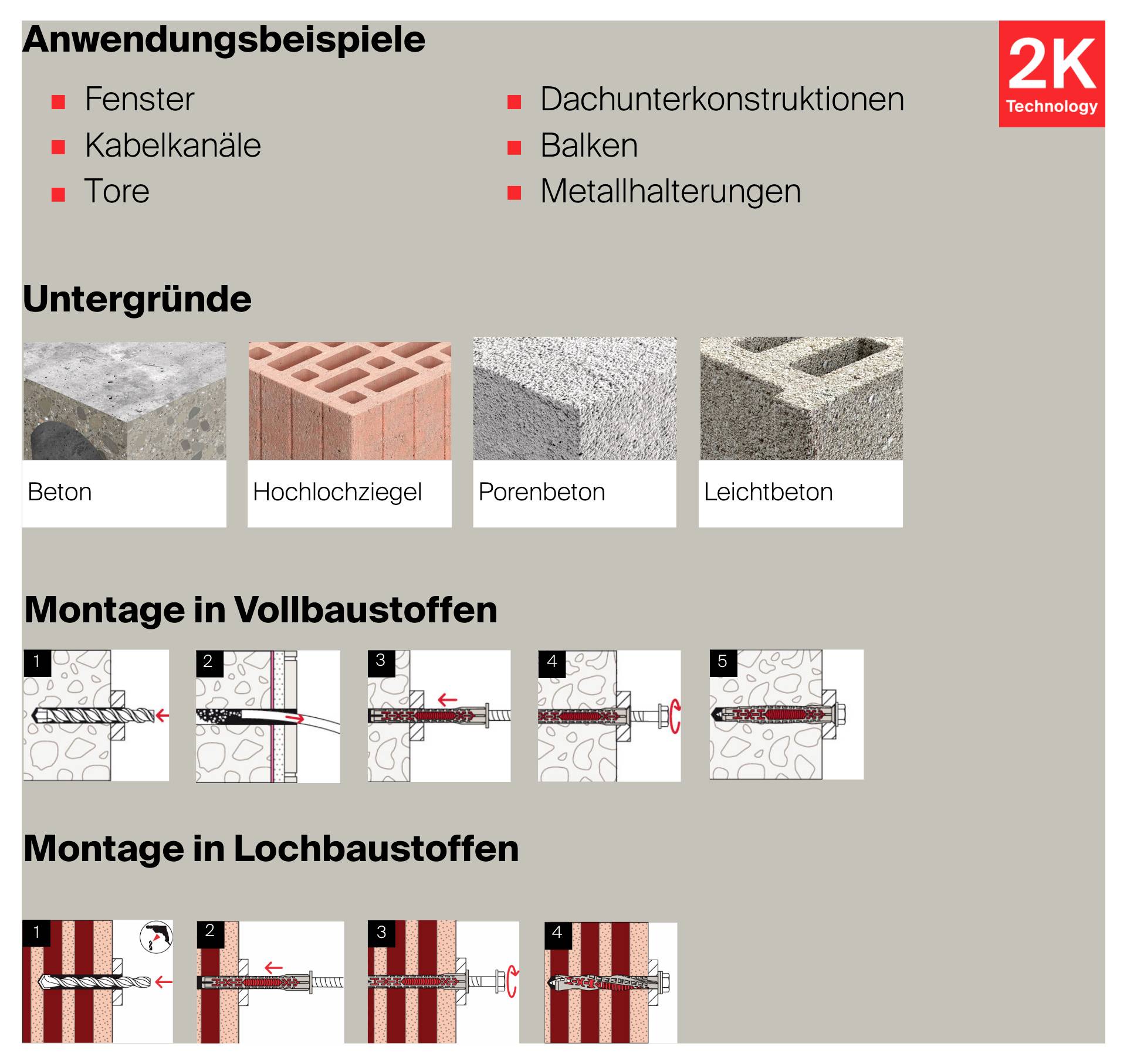

- Suitable for
Concrete
Solid brick
Flintlime bricks
Structural lightweight concrete
Cored bricks
Flintlime hollow bricks
Foamed concrete wall
Natural stone
Drywall sheet
- Content
50 pc(s)
- Features
incl. screw
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2526896 Fischer DuoXpand T Plug (long) 80 mm 10 mm 562155 50 pc(s)
Description
the fischer DuoXpand long shaft dowel with two anchor depths is approved with the fischer countersunk screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. Due to its special lamellar geometry and the material combination, the dowel spreads optimally and in a material-friendly way in the respective building material. The range includes diameters 8 and 10 and dowel lengths up to 230 mm. The DuoXpand with the countersunk screw is particularly suitable for fixing wooden constructions.
This text is machine translated.
This text is machine translated.
Features
- The gray body is made of high-quality nylon for strong support, while the red material component provides flexibility and optimal spread
