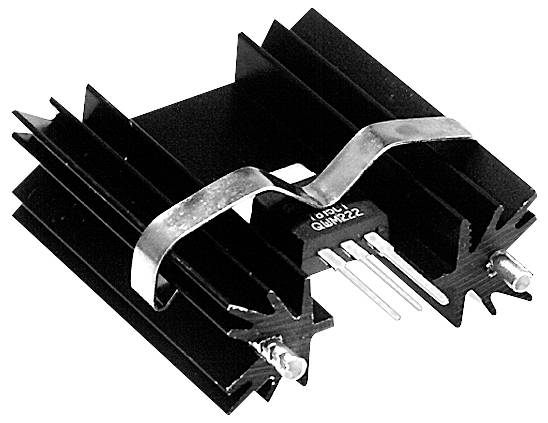

Fischer Elektronik SK 104 25,4 STC SK 104 25,4 STC Fin heat sink 14 K/W (L x W x H) 25.4 x 34.9 x 12.7 mm SOT 32, TO 220
EAN:
Part number:
Item no:
Product type
Fin heat sink
Suitable for
SOT 32
TO 220
Thermal resistance R(th)
14 K/W
Length
25.4 mm
Width
34.9 mm
Datasheet (PDF)
Highlights & Details
Extruded heat sink 35mm solder pin
Our service for you
Technical specifications
- Mounting type: Clip mounting
- Mounting position: Horizontal
- Product type
Fin heat sink
- Type
SK 104 25,4 STC
- Suitable for
SOT 32
TO 220
- Factory colour
Black
- Thermal resistance R(th)
14 K/W
- Material properties
anodised
- Length
25.4 mm
- Width
34.9 mm
- Height
12.7 mm
- Dim
(L x W x H) 25.4 x 34.9 x 12.7 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3313908 Fischer Elektronik SK 104 25,4 STC SK 104 25,4 STC Fin heat sink 14 K/W (L x W x H) 25.4 x 34.9 x 12.7 mm SOT 32, TO 220
User & Safety Instructions
User & Safety Instructions 3313908 Fischer Elektronik SK 104 25,4 STC SK 104 25,4 STC Fin heat sink 14 K/W (L x W x H) 25.4 x 34.9 x 12.7 mm SOT 32, TO 220
Description
Features
- For vertical installation
- Fastening the heatsink through solder pins Ø 2.3mm
- Suitable for TO220, SOT32 and TOP3 housings
- Semi-conductor attachment by transistor retaining spring THF104 (must be ordered separately)
- This text is machine translated.
