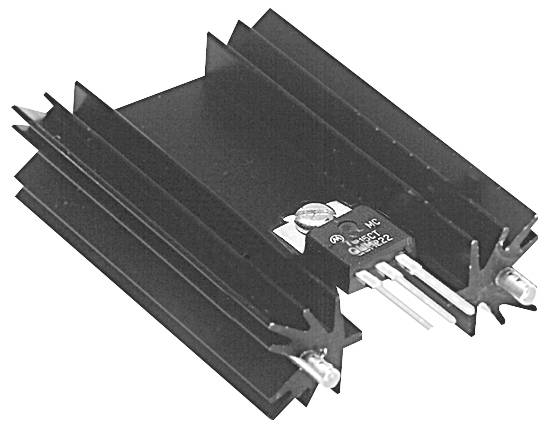

Fischer Elektronik SK104-50,8-STS SK104-50,8-STS Fin heat sink 9 K/W (L x W x H) 50.8 x 34.9 x 12.7 mm SOT 32, TO 220
Product type
Fin heat sink
Suitable for
SOT 32
TO 220
Thermal resistance R(th)
9 K/W
Length
50.8 mm
Width
34.9 mm
EAN:
Part number:
Item no:
Highlights & Details
Extruded heat sink 35mm solder pin
Our service for you
Technical specifications
- Mounting type: Clip mounting
- Mounting position: Horizontal
- Product type
Fin heat sink
- Type
SK104-50,8-STS
- Suitable for
SOT 32
TO 220
- Factory colour
Black
- Thermal resistance R(th)
9 K/W
- Material properties
anodised
- Length
50.8 mm
- Width
34.9 mm
- Height
12.7 mm
- Dim
(L x W x H) 50.8 x 34.9 x 12.7 mm
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3313913 Fischer Elektronik SK104-50,8-STS SK104-50,8-STS Fin heat sink 9 K/W (L x W x H) 50.8 x 34.9 x 12.7 mm SOT 32, TO 220
Description
Features
- For vertical installation
- Fastening the heatsink through solder pins Ø 2.3mm
- Suitable for TO220, SOT32 and TOP3 housings
- Semi-conductor attachment by transistor retaining spring THF104 (must be ordered separately)
- This text is machine translated.
