Fluke 6500-2 NL KIT 2 Electrical tester set VDE standard 0413
EAN:
Part number:
Item no:
Highlights & Details
6500-2 NL KIT 2
- Device tester 6500-2TruTest data management software
Technical specifications
- IP-40 housingConnector IP-20Operating temperature: 0 - 40 °C
- Product type
Electrical tester set
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
- Dim
(L x W x H) 200 x 275 x 114 mm
- Weight
3.13 kg
IP40
IP20
- DIN standard
DIN EN 61010-1
- Display type
Digital (LCD)
- Width
275 mm
- Height
114 mm
- Length
200 mm
- Test procedure
automated
- Voltage supply
230 V/AC
- Memory
Yes
- Type
6500-2 NL KIT 2
- VDE standard
0413
- Features
RCD/FI testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2576805 Fluke 6500-2 NL KIT 2 Electrical tester set VDE standard 0413
Description

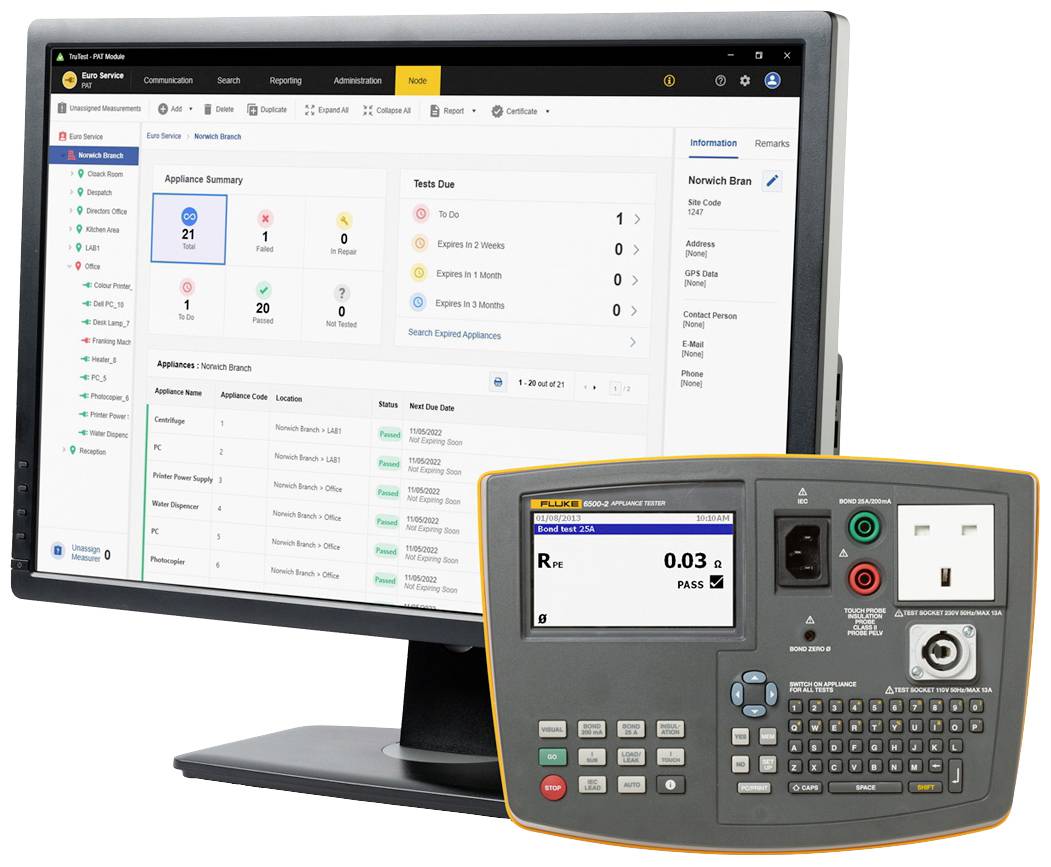

The device tester FLUKE-6500-2 with the safety standard DIN VDE 0701-0702, for all tests, which are necessary for devices of classes I and II. With a wide range of pre-set tests bundled with Fluke TruTest™ software. Fluke TruTest software is designed to eliminate the overhead associated with traditional data management and reporting for electrical systems. Whether you are testing equipment in an office, checking repairs in a workshop, or conducting annual visual inspections, proper data management is critical to creating easy-to-understand customer reports. TruTest software allows you to quickly and easily import measurement results directly from test equipment, manage files transferred from devices, or manually enter data as needed.
This text is machine translated.
This text is machine translated.
Features
- One-button operation, each test function is started via a special keyConforms to the new standards DIN EN 50678 (VDE 0701) and DIN EN 50699 (VDE 0702)Preset values for good/bad save timeLarge display with backlight for easy readingSingle mains socket for device connectionSeparate IEC socket for easy testing of cold device cablesDetachable test leads for quick field replacementIntegrated handleIntegrated keyboard for fast data entryStorage of measurement data on USB storage media and transfer to a PCLarge graphic display with backlightPre-set automatic test sequences for increased user-friendlinessFaster data entry with built-in codes for location, measurement point and descriptionMemory check function for more on-site control
Scope of delivery
- Compact device tester Fluke 6500-2
- Quick guide
- Hard-shell carrying case
- measurement cable
- Probe
- Alligator clip
- Power cable;
- USB stick
- USB cable
- TruTest data management software
