Fluke 6500-2 UK Equipment tester set VDE standard 0413
EAN:
Part number:
Item no:
Highlights & Details
Device tester kit Fluke 6500-2 UK
- Fast, one-button operation.
- Lightweight
- Robust
Technical specifications
- Product type
Equipment tester set
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
- Weight
3.13 kg
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Continuity
Touch voltage
Voltage
Current
Power
- DIN standard
DIN EN 61557
- Display type
Digital (LCD)
- Test procedure
manual
- Voltage supply
230 V/AC
- Memory (space)
1000
- Memory
Yes
- Type
6500-2 UK
- VDE standard
0413
- Features
incl. case
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909835 Fluke 6500-2 UK Equipment tester set VDE standard 0413
Description

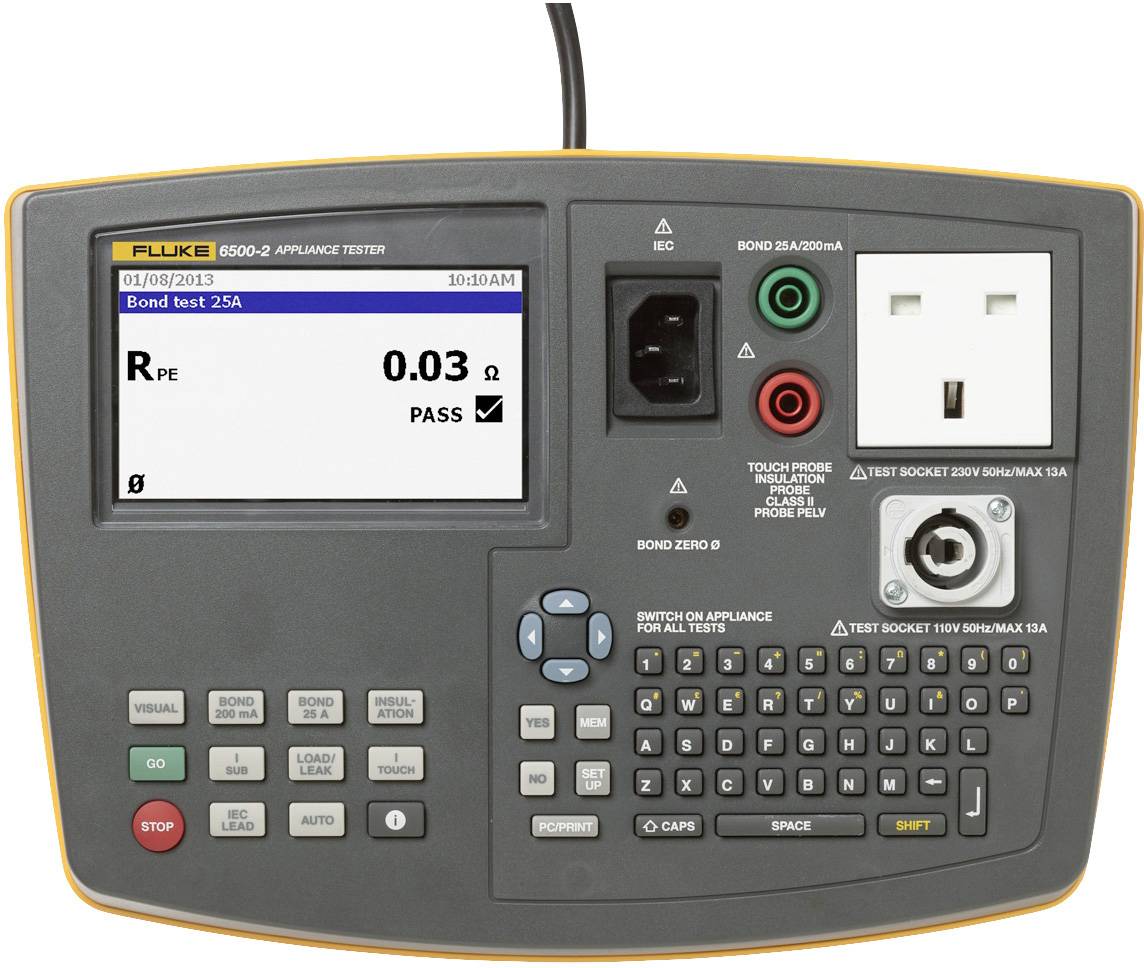

The device tester Fluke 6500-2 is characterised by low weight, small size, one-button operation and improved automatic tests. In this way, you can increase the number of tests on mobile devices per day. With the device tester 6500-2, measurements can be carried out without loss of quality in the results faster. Each of the pre-test routines by pressing one key. This is much easier than the device via menu or the selection of multiple functions and enables faster and more efficient working. The model 6500-2 is also equipped with custom test routines and alphanumeric keyboard for fast data entries. The portable device tester 6500-2 is extremely compact and can easily be carried when working on site. The enclosed stable hard-shell case protects the device during transport and also offers space for accessories and other devices. This portable device tester is - as all devices from Fluke - robust and designed for use on site. With a portable device tester from Fluke, they have a universal solution with all functions for testing of portable devices.
This text is machine translated.
This text is machine translated.
Features
- One-button operation: each test function is started via a special button
- Preset values for good/bad Enable saving of time
- Large display with backlight for easy reading
- Single power supply socket for the device connection
- Separate the IEC socket for easy testing of low heat device conductors
- Detachable measuring cables for quick replacement on site
- Built-in handle for easy transport
- USB port for data transfer
- Built-in keyboard for fast data entry
- Storage of measured data on USB storage media and transfer to a PC
- Large graphic display with background lighting
- Preset Automatic test sequences for increased user-friendliness
- Faster data entry by integrated codes for location, measuring point and description
- Memory test function for more control on site
- USB port for data transfer.
