Name: Fluke 707 Calibrator Amperage
Brand: Fluke
SKU: 1372663
Availability: SoldOut

A yellow Fluke 707 loop calibrator displays a measurement of '20.000 mA' on the screen.

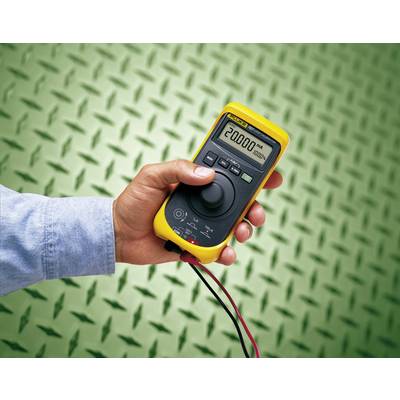

A hand is holding a yellow digital multimeter displaying '20000 mA' against a green, textured background.

1/2

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,675.00 / piece)

€ 1,675.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Current grinding calibrator Fluke 707

"Quick Click" button

Technical specifications

Dc Supply, Range: 0,001 mA 24 mA
Direct current measuring range: 0,001 mA 24 mA
Display (details): LCD
0,015 % basic accuracy.

: Manufacturer's standards (no certificate)

Product type: Calibrator

Unit of measurement: Amperage

Resolution: 0.001 mA

Dim: (L x W x H) 41 x 70 x 152 mm

Weight: 340 g

Width: 70 mm

Height: 152 mm

Length: 41 mm

Power supply: 1 x 9 V PP3 battery (included)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1372663 Fluke 707 Calibrator Amperage

Information

Information 1372663 Fluke 707 Calibrator Amperage

Conformity certificate

Conformity certificate 1372663 Fluke 707 Calibrator Amperage

Description

The current loop calibrator Fluke707 is a powerful solution for calibration, repair and maintenance of current loops. The "Quick Click" button makes its operation is extremely simple.

This text is machine translated.

Features

Clear user interface with "Quick Click" button for one-handed operation
give, simulate and measure mA
0.015% accuracy and 0.001 mA resolution
simultaneous display of the measured value in mA and % of the measuring range
Selection between stairs or ramp output signal
24 V loop power supply with mA measurement, Including 250Ω HART resistor
Measurement of 0 - 28 V DC for testing the loop voltage
simple battery change without opening the housing
compact housing with removable protective holster
large display and clear user interface for simple one-handed operation.
Simultaneous display of the measured value in mA and %
resolution of 1 µA when giving, simulating and measuring mA.
25% steps by push button for fast and simple linearity tests
0 – 100 % "Span Check" for fast switching between zero point and end of measuring range
Selection between slow ramp, fast ramp and stairs for functional tests of devices with current loops.
Internal 24-volt loop power supply to simultaneously supply power to a transmitter and read readings without carrying a DMM.
Measures direct voltage up to 28 V.
Switchable for current loops 0 - 20 mA or 4 - 20 mA
innovative rotary switch for output adjustment with a resolution of 1 µA and 100 xxx.
The HART ™ mode switches a 250 Ω resistor in series with the 24 V loop and thus ensures compatibility with HART communicators.

Scope of delivery

AC70A alligator clips
C10 yellow holster with Flex™
TL75 safety measuring cable set
Battery
User manual
