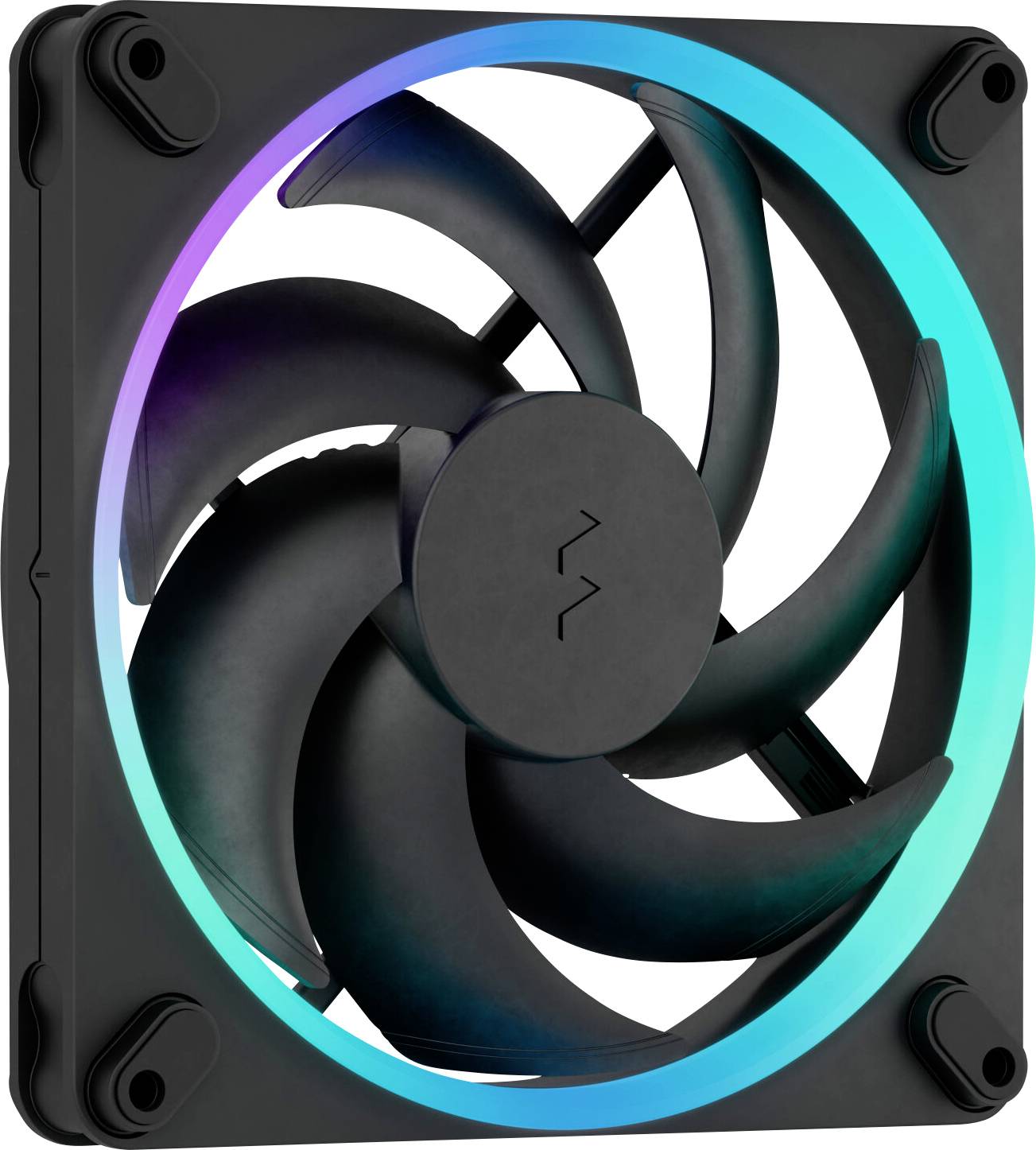

Fractal Design FD-F-MR1-1403 PC fan Black
EAN:
Part number:
Item no:
Highlights & Details
Fractal Design FD-F-MR1-1403 PC fan
- Computer housing fan 14 cm 1800 RPM
- 28 dB 74.39 CFM 2.45 mmH2O Fluid dynamic bearing (FDB)
- Support for pulse width modulation
- 253 g
- Black
- 3 pieces(s)
Technical specifications
- Fan diameter 14 cm
- Storage type: Fluid dynamic bearing (FDB)
- Product type
PC fan
- Fan size
140 mm
- Noise emission (max.)
28 dB
- Noise emission
20.1 dB - 30 dB
- Rotational speed (min.)
350 U/min
- Air discharge
126.6 m³/h
- Rotational speed (max.)
1800 U/min
- Type of bearing
Fluid dynamic bearing
- Factory colour
Black
- Weight
0
- Content
1 pc(s)
- Type
Fan
- UKCA
yes
- Number of screws
12
- Screws included
yes
- Fan voltage
12 V
- Fan current
0.17 A
- Fan weight
253 g
- Illumination LED
yes
- Number of LEDs
20
- Quantity per pack
3 Stück(e)
- Fan power consumption
2.04 W
- Pulse-width modulation (PWM) support
yes
- Starting voltage
7 V
- Number of fan blades
7
- LED voltage
5 V
- Mean time between failures (MTBF)
90000 h
- Maximum airflow
74.39 cfm
- Maximum air pressure
2.45 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3428684 Fractal Design FD-F-MR1-1403 PC fan Black
Description
Momentum is a powerful fan series that was developed for a high air current The Momentum fan combines high-quality materials with modern design technology to minimize noise and maximize cooling efficiency.
Improved lighting
Create the right atmosphere with an illuminated ARGB Gen 2 light ring that can be adjusted to create animated effects
Powerful fan blades
Made with durable liquid crystal polymer (LCP) fan blades, which enable an improved efficiency through precise production
Optimized operation
Enjoy a lasting, optimized noise performance with a real FDB-bearing with an inner herringbone structure
Quiet operation
Keep your system quiet and cool with a special fan design that reduces operational noise, especially at higher speeds
Controllable power
Optimise your system's performance and volume thanks to the wide PWM range and a zero RPM mode
Easy connectivity
Connect your fans smoothly and easily in a daisy-chain with short, integrated flat cables and one extension cable per fan cluster.
Elegant design
Experience an elegant, sophisticated design with a minimalist, uniform look and high-quality materials
Low vibration
Integrated rubber buffers around the screw points effectively reduce the vibrations between the fans and the housing
This text is machine translated.
Improved lighting
Create the right atmosphere with an illuminated ARGB Gen 2 light ring that can be adjusted to create animated effects
Powerful fan blades
Made with durable liquid crystal polymer (LCP) fan blades, which enable an improved efficiency through precise production
Optimized operation
Enjoy a lasting, optimized noise performance with a real FDB-bearing with an inner herringbone structure
Quiet operation
Keep your system quiet and cool with a special fan design that reduces operational noise, especially at higher speeds
Controllable power
Optimise your system's performance and volume thanks to the wide PWM range and a zero RPM mode
Easy connectivity
Connect your fans smoothly and easily in a daisy-chain with short, integrated flat cables and one extension cable per fan cluster.
Elegant design
Experience an elegant, sophisticated design with a minimalist, uniform look and high-quality materials
Low vibration
Integrated rubber buffers around the screw points effectively reduce the vibrations between the fans and the housing
This text is machine translated.
