Fractal Design Venturi HP-12 PWM PC fan Black, Grey (W x H x D) 120 x 120 x 25 mm

A black computer fan with five blades, marked with 'Fractal Design' in the centre. Square-shaped with rounded edges.

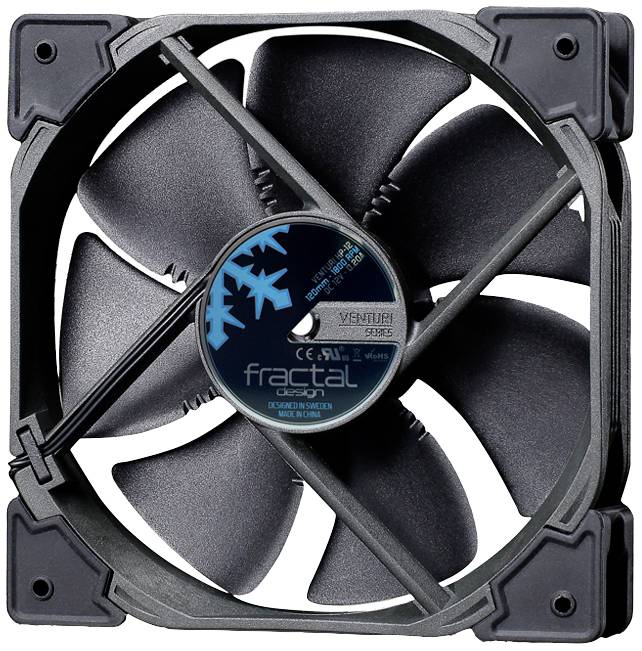

A black computer cooling fan with five blades, a central label with a logo, and four mounting points at the corners.

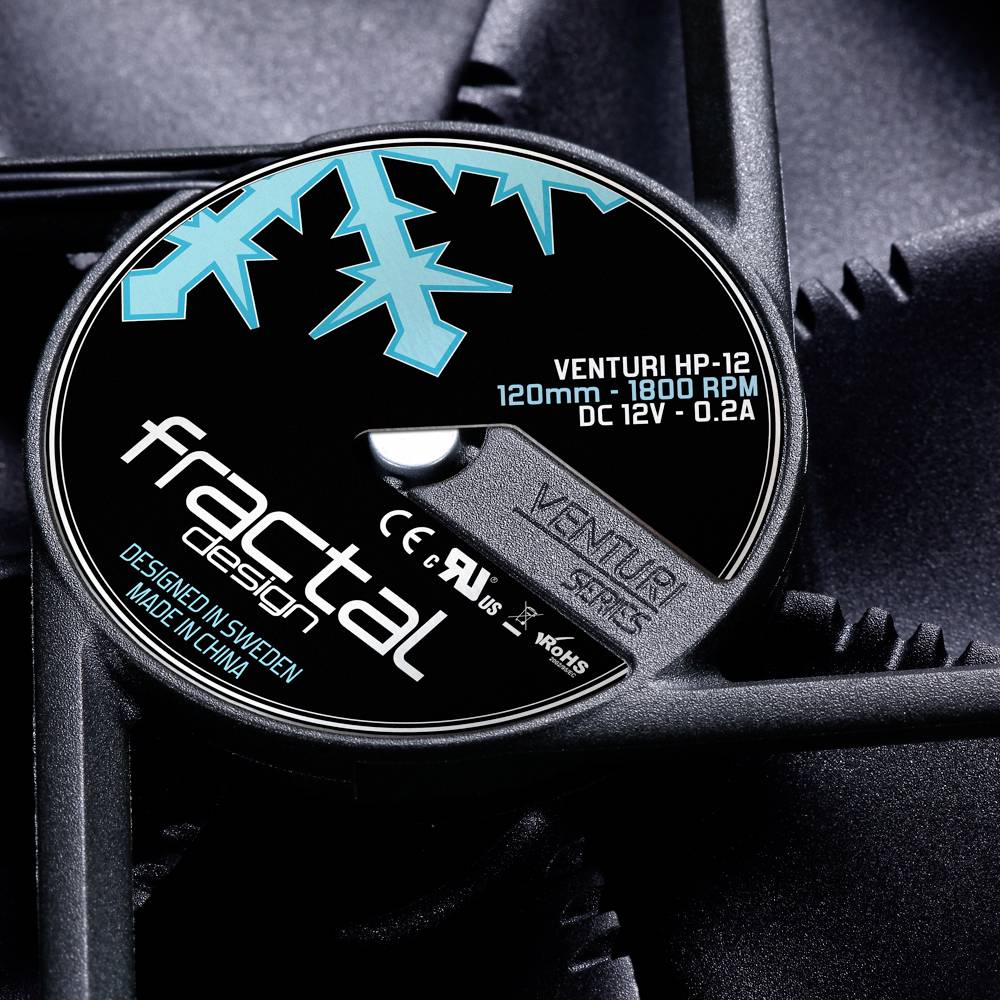

Close-up of a case fan with the inscription 'fractal design', showing product specifications: 120mm, 1800 RPM, Venturi HP-12.

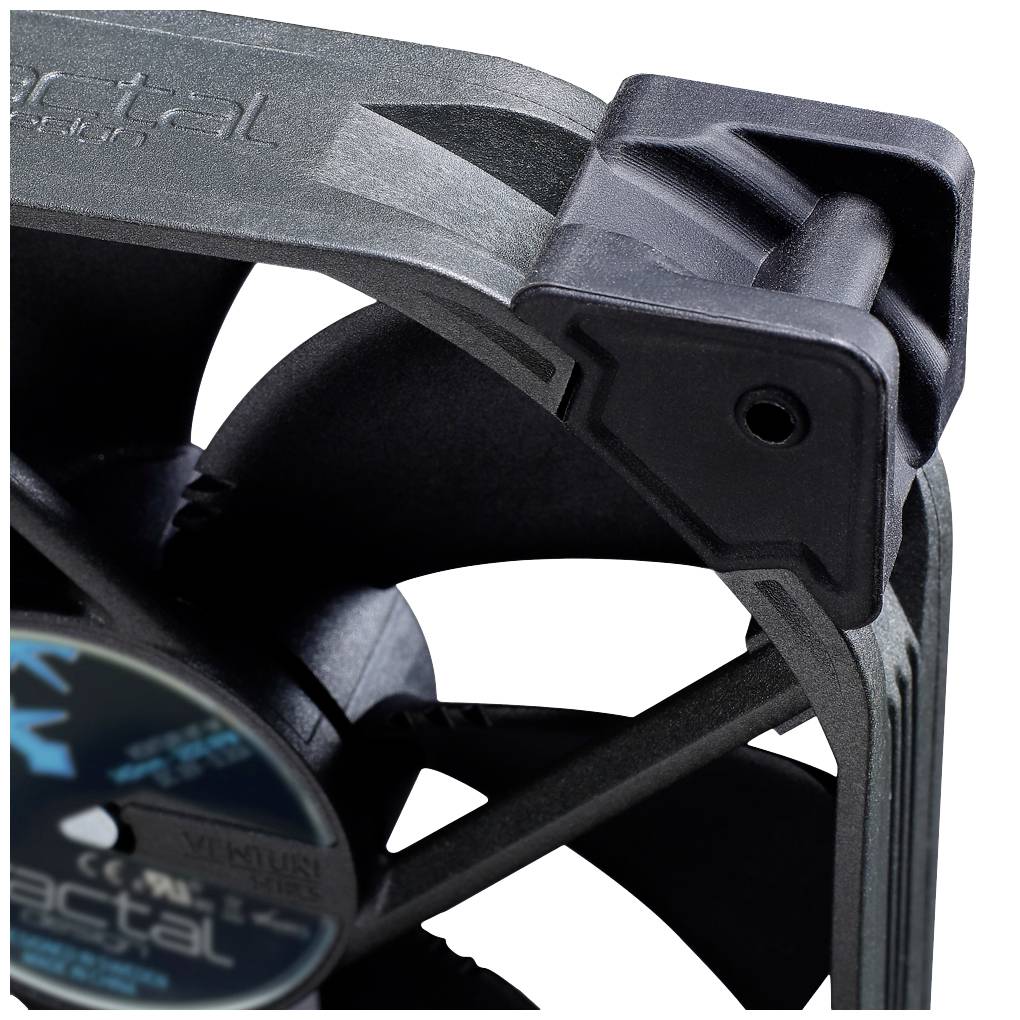

Close-up of a computer fan with a black plastic frame and multiple blades. Focus on mounting angle.

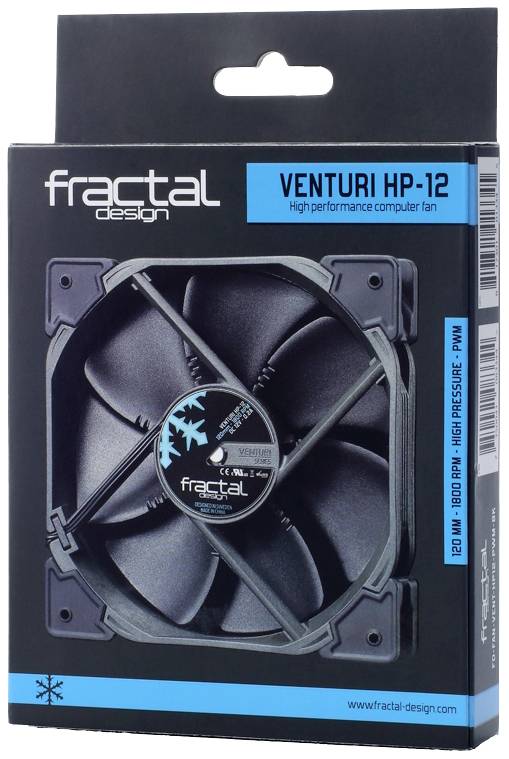

Packaging for a Fractal Design Venturi HP-12 fan, 120 mm, for computer cases. High performance and pressure with PWM function.

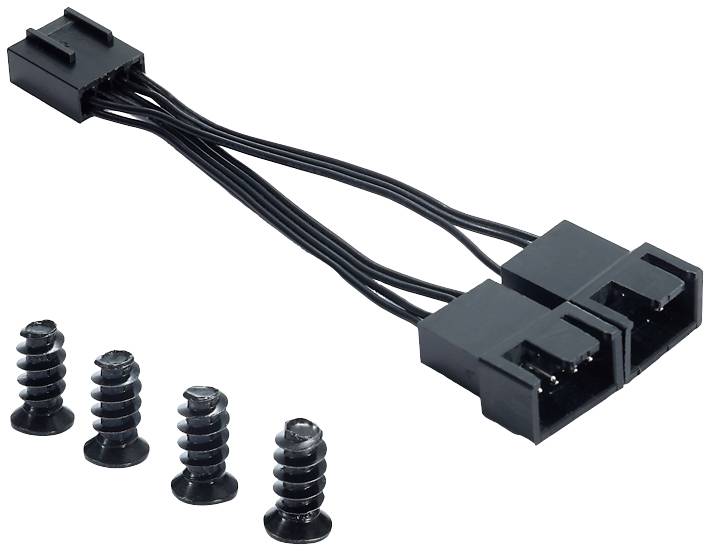

'Y-cable with two 4-pin connectors for fans and four black mounting screws'

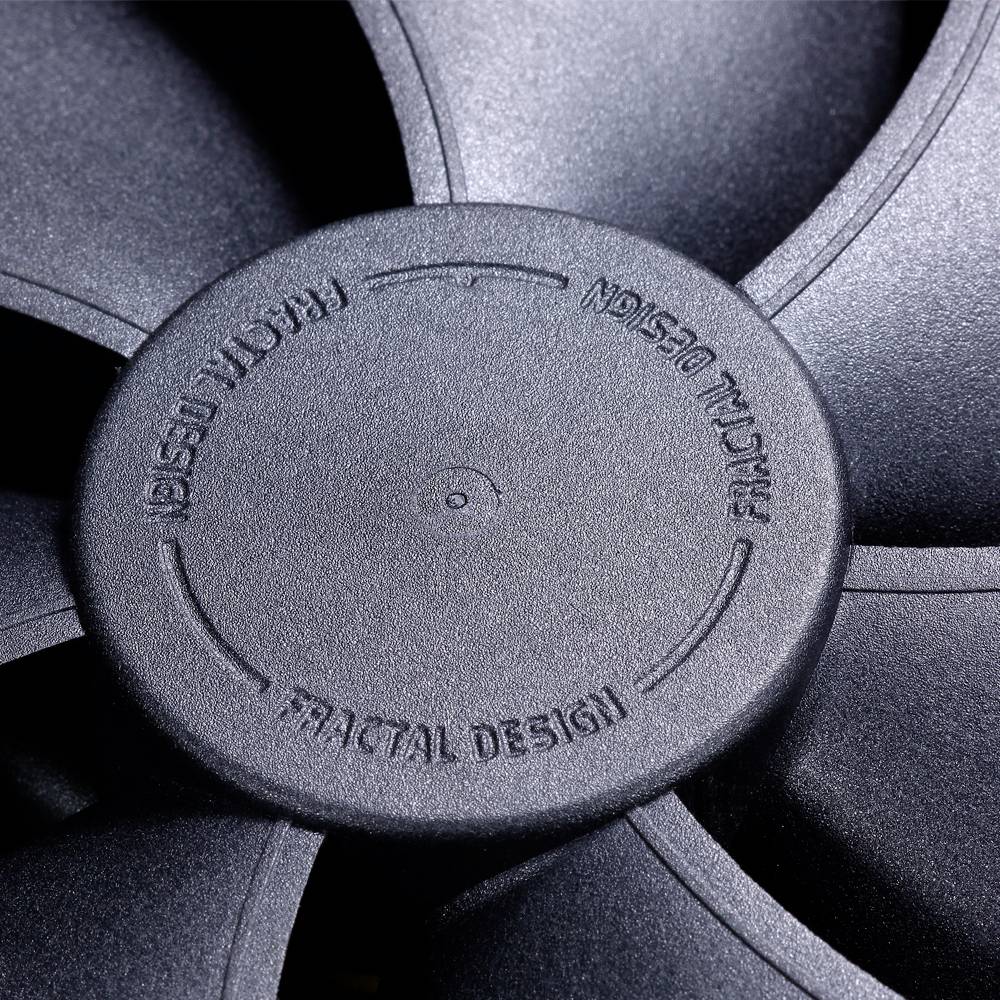

A close-up of a black fan with 'Fractal Design' written on the hub.
1/7
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

PC fan

Fan size

120 mm

Noise emission (max.)

31.7 dB

Noise emission

30.1 dB - 40 dB

Rotational speed (min.)

400 U/min

Air discharge

10.4 m³/h

Rotational speed (max.)

1800 U/min

Factory colour

Black

Grey

Weight

179 g

Width

120 mm

Height

120 mm

Depth

25 mm

Dim

(W x H x D) 120 x 120 x 25 mm

Content

1 pc(s)

Cable length

0.5 m

Design height

120 mm

PSU power

1 W

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2901383 Fractal Design Venturi HP-12 PWM PC fan Black, Grey (W x H x D) 120 x 120 x 25 mm

Description

Features

  • Type: Fan
  • Fan diameter 12 cm
  • Rotation speed (min.): 400 RPM
  • Rotation speed (max.): 1800 RPM
  • Noise level (slow speed): 10 dB
  • Noise level (high speed): 31.7 dB
  • Maximum air flow: 61.4 cfm
  • Air flow: 10.4 m³/h.
  • Minimum air pressure 0.45 mmH2O
  • Maximum air pressure 2.3 mmH2O Voltage 12 V. Width 120 mm
  • Depth: 25 mm
  • Height 120 mm. Product color: Black
  • Grey
  • This text is machine translated.
