Fränkische Rohrwerke 20310063 Steel pipe EN63 3 m Black 3 m S90 fire rating
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Steel
- Material quality: Steel (flux steel rolled)
- Surface protection: Painted
- Quality of the surface coating: Other
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Pipe end
- Connection 2: Pipe end
- Colour, black
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for concrete installation: Yes
- Machinery and equipment installation: Yes
- Underground installation (bitumen, hot asphalt): Yes
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Compressive strength: Heavy (class 4)
- Interior diameter 59.9 mm
- Outer diameter: 63 mm
- Operating temperature -45..250°C
- Product type
Steel pipe
- Size
EN63
- Outside Ø
63 mm
- Inside diameter
59.9 mm
- Length
3 m
- Content
3 m
- Features
S90 fire rating
- Material
Steel
- Compressive strength
1250 N
- Factory colour
Black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407341 Fränkische Rohrwerke 20310063 Steel pipe EN63 3 m Black 3 m S90 fire rating
User & Safety Instructions
User & Safety Instructions 3407341 Fränkische Rohrwerke 20310063 Steel pipe EN63 3 m Black 3 m S90 fire rating
Description

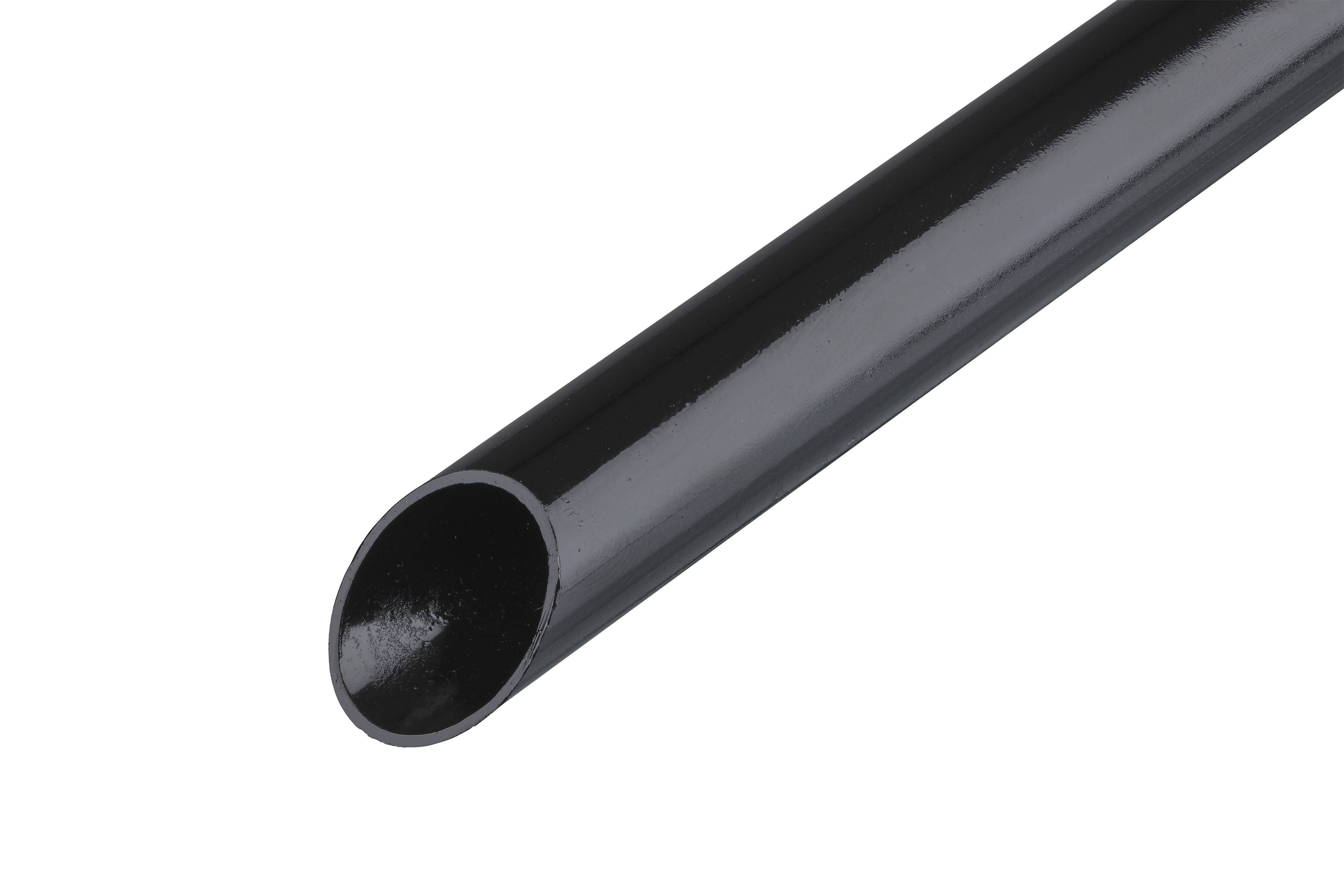

Staro Steck-ES is a heavy black painted steel pipe made of rolled river steel with a burning lacquer finish, in rods of 3 m, with a color similar to RAL9005 (deep black). This steel tube is used for increased mechanical requirements. The advantages are the high compressive strength and temperature resistance. This product is suitable for laying cables with functional retention (E30/ E60/ E90) and tested in the system. VDE 0605 DIN EN 61386-21 Classification: 44561 Minimum pressure resistance 1250N/5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m steel tube
