Fränkische Rohrwerke 20410025 Steel pipe EN25 3 m Zinc 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Steel
- Material quality: Steel (flux steel rolled)
- Surface protection: Hot-dip galvanized
- Quality of the surface coating: Other
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Inner thread (metric)
- Connection 2: Outer thread (metric)
- Colour zinc
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for concrete installation: Yes
- Machinery and equipment installation: Yes
- Underground installation (bitumen, hot asphalt): Yes
- Underfloor installation (screed): Yes
- Outdoor installation: Yes
- Installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: Yes
- Compressive strength: Very heavy (class 5)
- 21.3 mm internal diameter
- Outer diameter: 25 mm
- Operating temperature -45..400°C
- Product type
Steel pipe
- Size
EN25
- Outside Ø
25 mm
- Inside diameter
21.3 mm
- Length
3 m
- Content
3 m
- Material
Steel
- Compressive strength
4000 N
- Factory colour
Zinc
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407292 Fränkische Rohrwerke 20410025 Steel pipe EN25 3 m Zinc 3 m
User & Safety Instructions
User & Safety Instructions 3407292 Fränkische Rohrwerke 20410025 Steel pipe EN25 3 m Zinc 3 m
Description

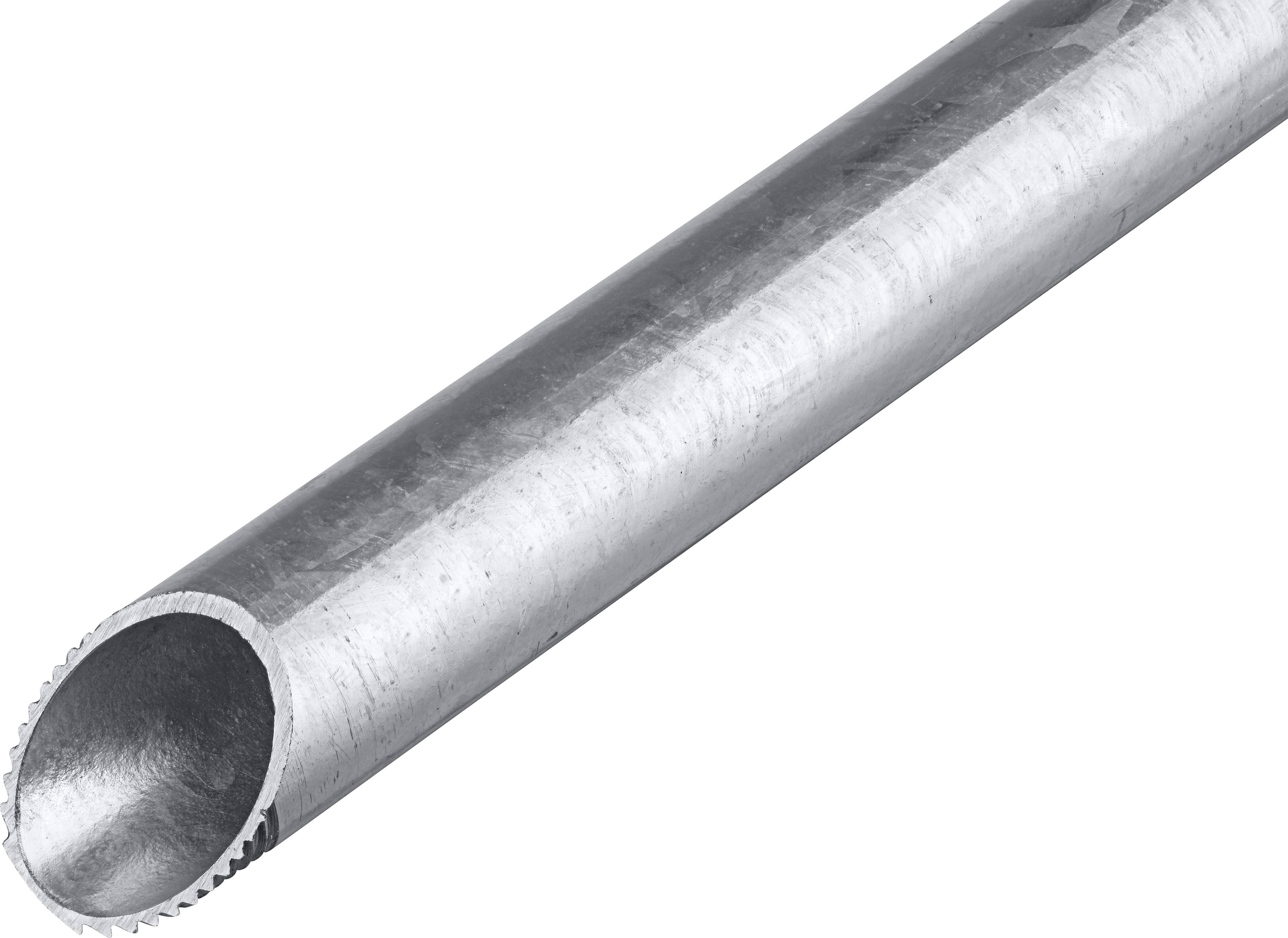

Staro Thread-ES-V is a very heavy zinc-coated steel tube made of rolled flux steel with zinc coating according to EN ISO 1461, in bars to 3M, both sides with thread, sleeve screwed on on one side (SM-E-V). This steel tube is used for extreme mechanical requirements and solid connections, as well as for outdoor installation. The advantages are the very high compressive strength, temperature resistance and corrosion protection. This product is suitable for laying cables with functional retention (E30/ E60/ E90) and tested in the system. VDE 0605 DIN EN 61386-21 Classification: 55571 Minimum pressure resistance 400N/5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m steel tube
