Name: Fränkische Rohrwerke 37004500 Co-flex PP 45 sw Conduit Black 42.7 mm 25 m
Brand: Fränkische Rohrwerke
SKU: 3407281

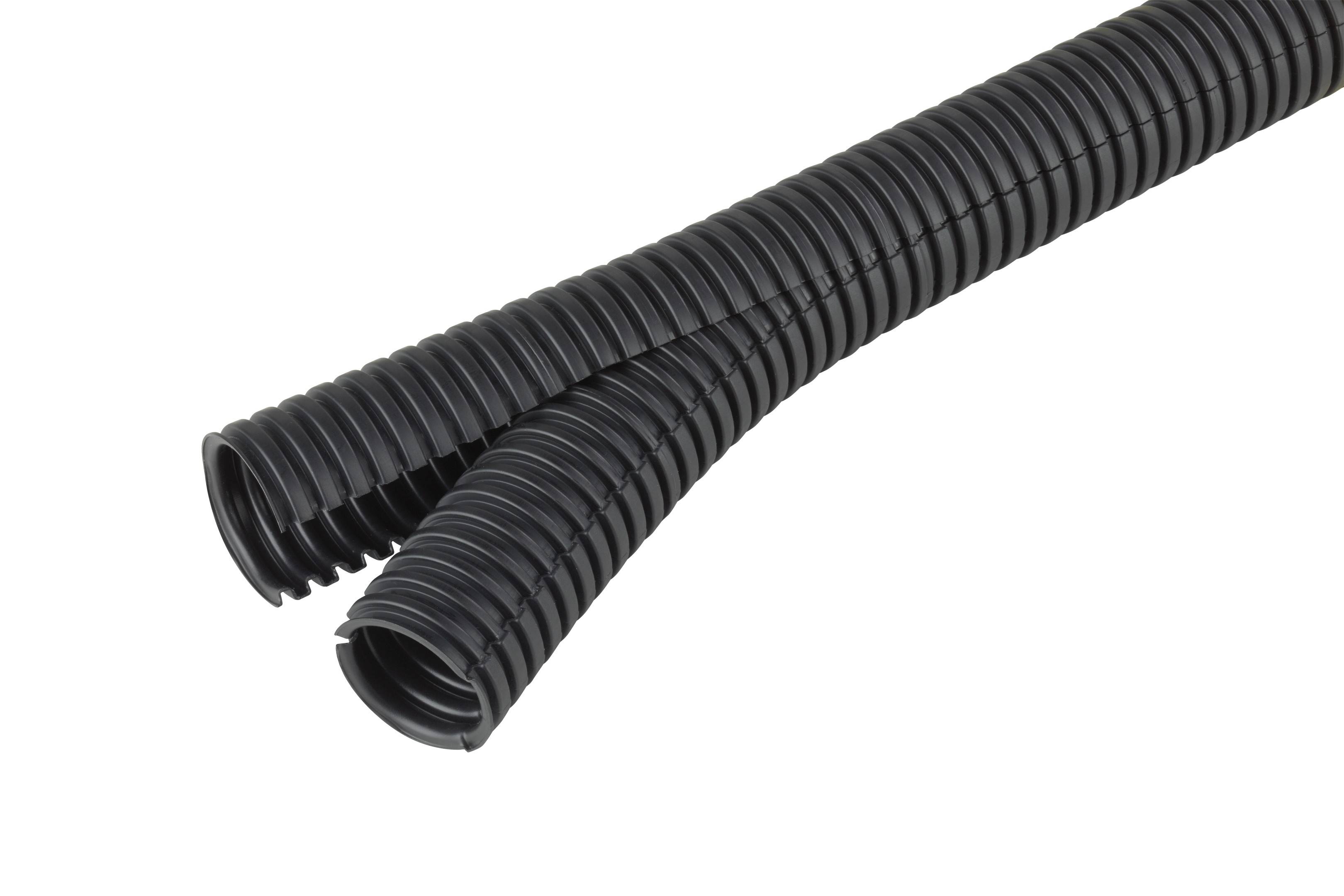

Two black, flexible corrugated pipes with a ribbed surface. They are commonly used to protect or bundle cables.

Product type

Conduit

Content

25 m

Material

Polypropylene

Conduit features

longitudinal slit

Inside diameter

42.7 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Nominal diameter 45 mm
Nominal size in inches: Other
External diameter: 54 mm
Interior diameter 42.7 mm
Material: Polypropylene (PP)
Compressive strength 125 N
Operating temperature -40..135°C
Protection class (IP) IP40
Fire protection according to UL 94 HB
Bending radius, static 190 mm
UV-resistant: No.
Oil resistant: Yes
Colour, black
Jacket material: Without sheathing
Flame-spreading: No.
Bending characteristics: Flexible
Longitudinal: Yes
Lockable (two-part): Yes
Halogen-free: No.
Approval according to DIN EN 61386-23: No.
Approval according to UR: No.
Approval according to CSA: No.
Approval according to LUL/British standard: No.
Approval according to Lloyd's register TA: No.
Approval according to UTAC: No.
Approval according to NF F 16-101: No.
With train wire: No.
High-gloss smooth inner layer: No.
Approval according to DIN 5510: No.
Approval according to VTÜV/GGVSEB: No.

Product type: Conduit

Content: 25 m

Factory colour: Black

Material: Polypropylene

Conduit features: longitudinal slit

Suitable for diameters: 45 mm

Inside diameter: 42.7 mm

Outside Ø: 54 mm

Max. temperature: +135 °C

Min. temperature: -40 °C

Length: 25 m

Manufacturer part #: 37004500

Type: Co-flex PP 45 sw

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3407281 Fränkische Rohrwerke 37004500 Co-flex PP 45 sw Conduit Black 42.7 mm 25 m

User & Safety Instructions

User & Safety Instructions 3407281 Fränkische Rohrwerke 37004500 Co-flex PP 45 sw Conduit Black 42.7 mm 25 m

Description

Co-Flex PP is a slotted, lockable corrugated pipe made of PP-MOD BS, non-flame spreading. Available in black color. This corrugated pipe is used for the retrofit protection of lines, in machine and plant engineering as well as in the office and in the private sector. The advantages lie in the high-temperature resistance and in the protection against damaging of rodents and rodents. This dividable corrugated pipe is easy to install to a previously installed pipe. Processing starts with opening the system, then the inner tube is fitted with cables and finally the slot is closed by inserting the outer tube. Temperature resistance according to LV312-3: -40° C to +135° C, short-term up to +150° C. Temperature resistance according to DIN EN 61386-22 (VDE 0605-22) -25° C to +105° C. Flammability: UL 94 HB / FMVSS 302 type B

This text is machine translated.
