Fränkische Rohrwerke 3840002300 Spiral tube Black 1 pc(s)
Item no:
Product type
Spiral tube
Factory colour
Black
Content
1 pc(s)
Length
50 m
Type
3840002300
Datasheet (PDF)
Highlights & Details
Franconian spiral hose black 2PPSM-23U.50
- Black
Technical specifications
- Nominal diameter 23 mm
- Nominal size in inches: Other
- Outer diameter: 30.8 mm
- 23.4 mm internal diameter
- Material: Polypropylene (PP)
- Operating temperature -40..105°C
- Protection class (IP) IP40
- Fire protection according to UL 94 V2
- Bending radius, static 50 mm
- Bending radius, dynamic 0 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Longitudinal: Yes
- Lockable (two-part): Yes
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: No.
- Approval according to CSA: No.
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Spiral tube
- Factory colour
Black
- Content
1 pc(s)
- Length
50 m
- Type
3840002300
Documents & Downloads
Datasheet
Datasheet 3313435 Fränkische Rohrwerke 3840002300 Spiral tube Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3313435 Fränkische Rohrwerke 3840002300 Spiral tube Black 1 pc(s)
Description

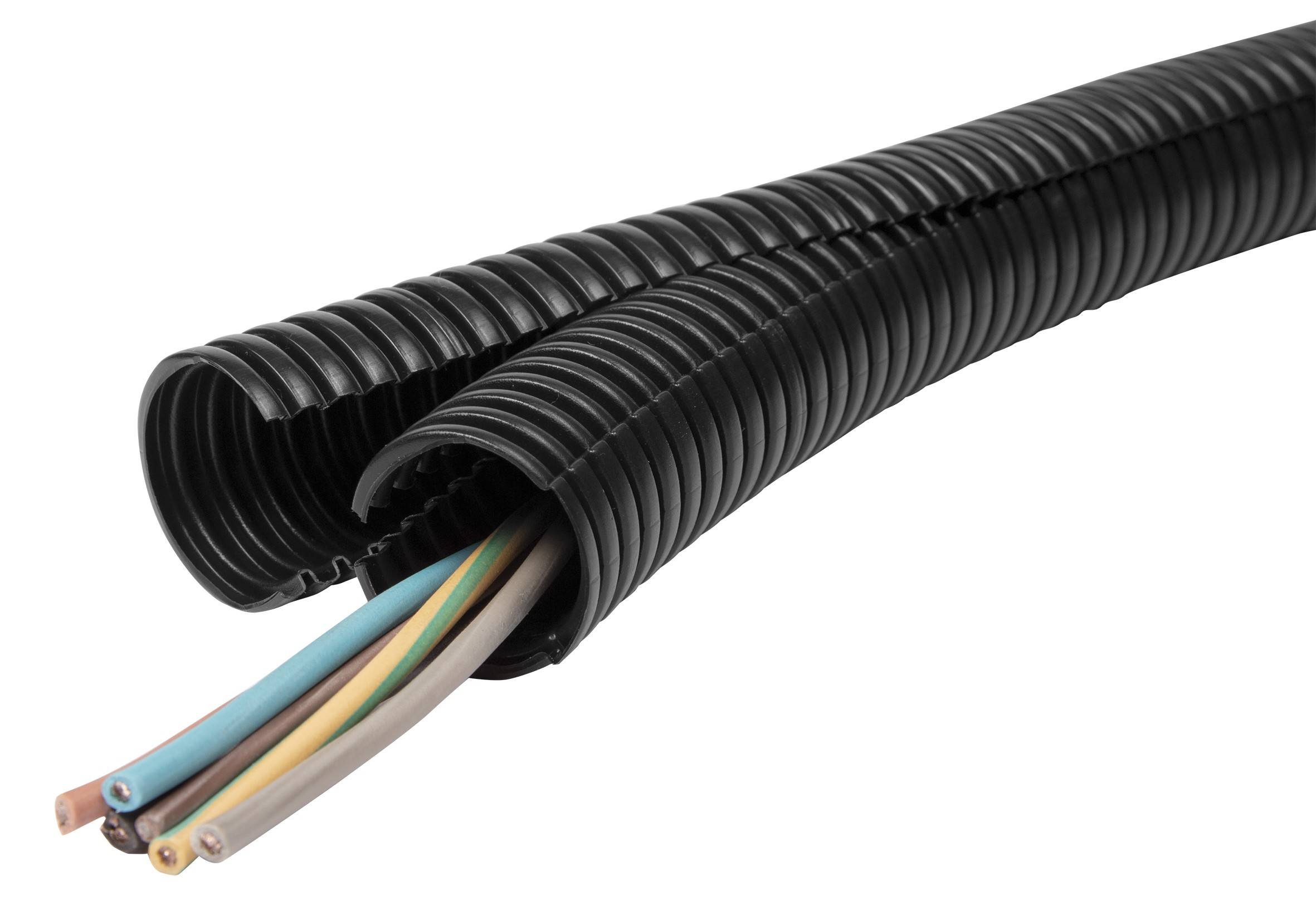

FIPSPLIT® plastic corrugated pipe divisible 2PPS-U made of high-quality specially formulated polypropylene, halogen-free, UV-stabilized. The two-part corrugated pipe is particularly suitable for the retrofitting of cables and wires. It is used in mechanical engineering, plant construction and solar and photovoltaic applications.
This text is machine translated.
This text is machine translated.
