Fränkische Rohrwerke 4890732500 Gland 129.3 mm Black 4 pc(s) Halogen-free
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Gland
- Outside Ø
42.4 mm
- Inside diameter
36.5 mm
- Length
129.3 mm
- Content
4 pc(s)
- Features
Halogen-free
- Material
Polyamide
Brass
- Heat resistance
-50..120 °C
- Factory colour
Black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2805248 Fränkische Rohrwerke 4890732500 Gland 129.3 mm Black 4 pc(s) Halogen-free
User & Safety Instructions
User & Safety Instructions 2805248 Fränkische Rohrwerke 4890732500 Gland 129.3 mm Black 4 pc(s) Halogen-free
Description

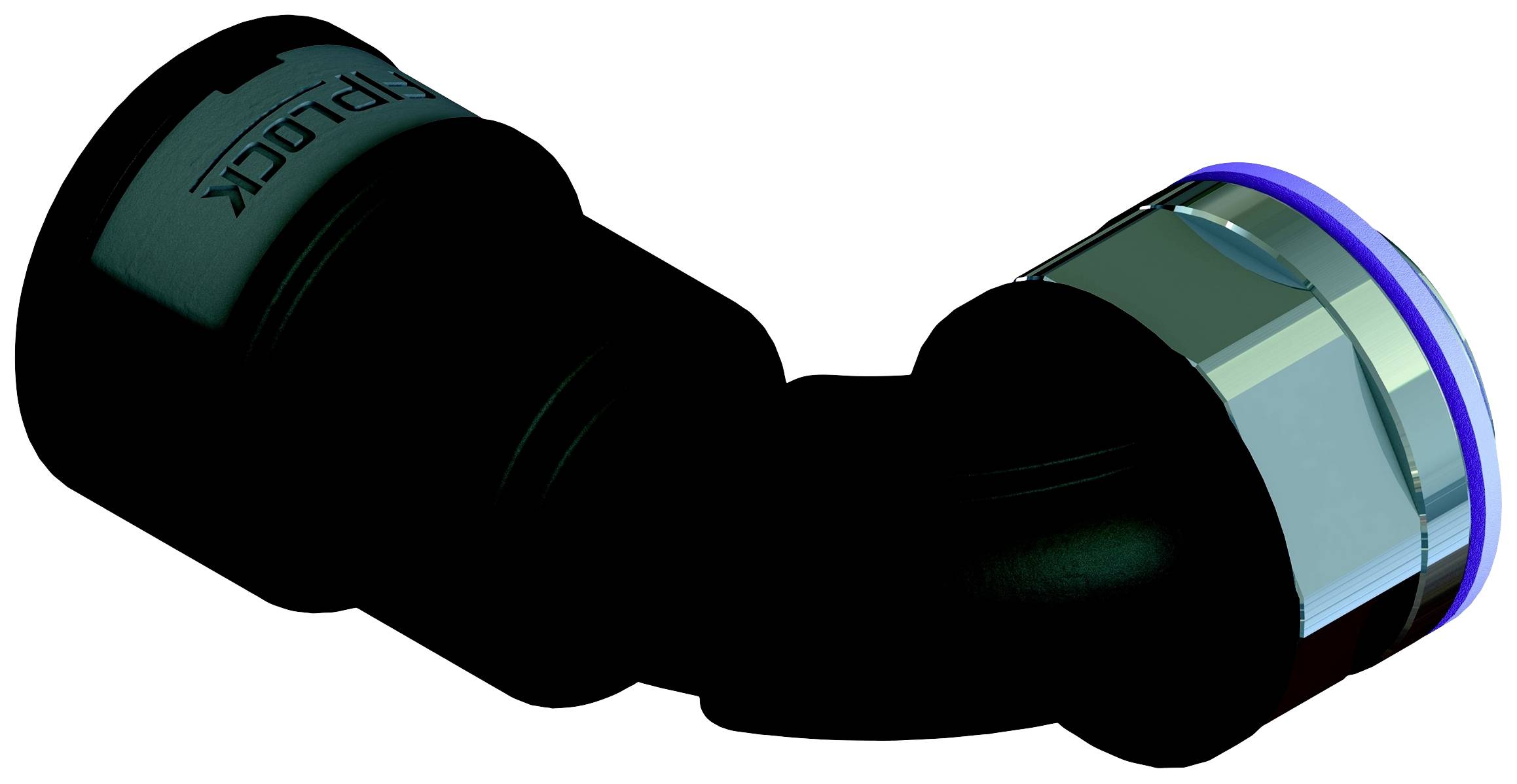

FIPLOCK®ONE Connection fitting Bend angle 90° AEPA-MMK-S made of specially modified polyamide 6, halogen-free, UV-resistant with short, rotating, metric metal thread made of nickel-plated brass. Fulfils the protection classes IP66, IP67, IP68 and IP69. The 360° locking system can be easily opened with the help of a commercially available flat-tip screwdriver.
