Fränkische Rohrwerke 4890882100 Gland 102 mm Black 4 pc(s) Halogen-free
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Gland
- Outside Ø
54.4 mm
- Inside diameter
47.5 mm
- Length
102 mm
- Content
4 pc(s)
- Features
Halogen-free
- Material
Polyamide
Brass
- Heat resistance
-50..120 °C
- Factory colour
Black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2805250 Fränkische Rohrwerke 4890882100 Gland 102 mm Black 4 pc(s) Halogen-free
User & Safety Instructions
User & Safety Instructions 2805250 Fränkische Rohrwerke 4890882100 Gland 102 mm Black 4 pc(s) Halogen-free
Description

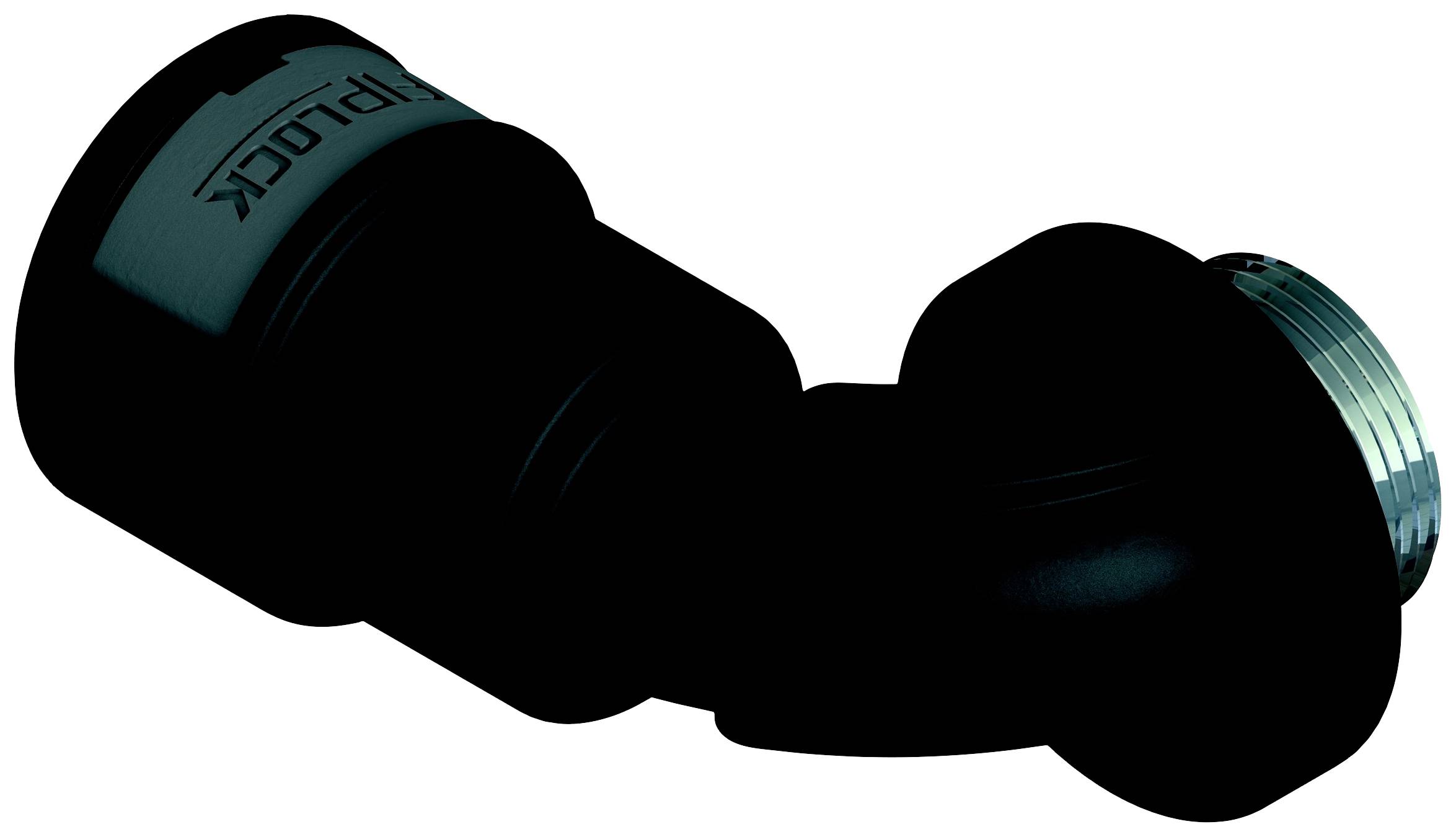

FIPLOCK®ONE Connection screw connection Bend angle 90° AEPA-MML made of specially modified polyamide 6, halogen-free, UV-resistant with long metric metal thread made of nickel-plated brass. Fulfils the protection classes IP66, IP67, IP68 and IP69. The 360° locking system can be easily opened with the help of a commercially available flat-tip screwdriver.
