Fränkische Rohrwerke KabuflexKDS SD DN125 Filler plug 1 pc(s)
EAN:
Part number:
Item no:
Product type
Filler plug
Content
1 pc(s)
Manufacturer part #
19972125
Type
KabuflexKDS SD DN125
UKCA
not relevant
Technical specifications
- Design: Other
- Mounting type: Other
- Length: 140 mm
- cable diameter 125 mm
- Pipe diameter 125 mm
- Gas-tight: No.
- Atmospheric: No.
- Waterproof: No.
- Radon-tight: No.
- Disassembly possible: Yes
- Cable bundling possible: Yes
- Shock-proof against explosions: No.
- Certified for ship applications: No.
- Building seal according to DafStb-Guideline: No.
- Reclavable: Yes
- Building seal according to DIN 18533: No.
- Product type
Filler plug
- Content
1 pc(s)
- Manufacturer part #
19972125
- Type
KabuflexKDS SD DN125
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549082 Fränkische Rohrwerke KabuflexKDS SD DN125 Filler plug 1 pc(s)
Description

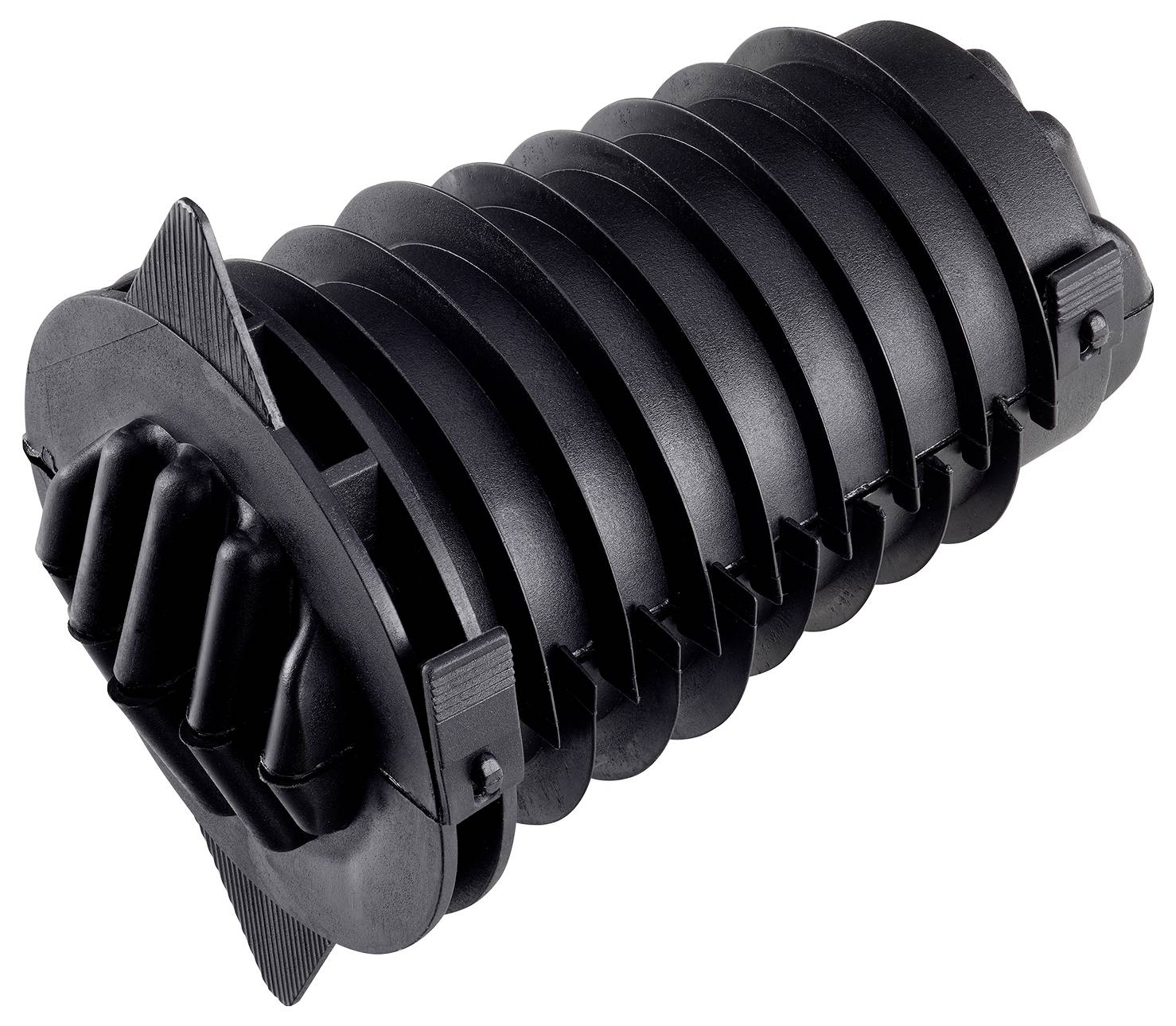

The Kabuflex KDS SD is a sand-tight cable bushing for Kabuflex R plus pipes. The dividable mechanism of the black plug made of PE is suitable for Ideal for retrofitting to already laid cables or occupied pipes. Thanks to the inner foam padding, the protective tube seal also prevents silencing. The article 19972125 is also suitable for installation in the plastic foundations of Langmatz. This means that in addition to cables, even narrow cable protection tubes up to type 32, such as those used for data cables, can be conducted snugly in the empty foundation.
