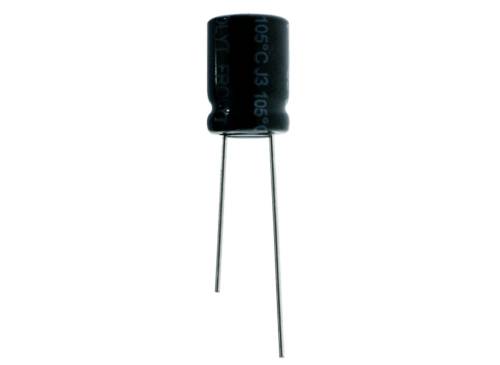

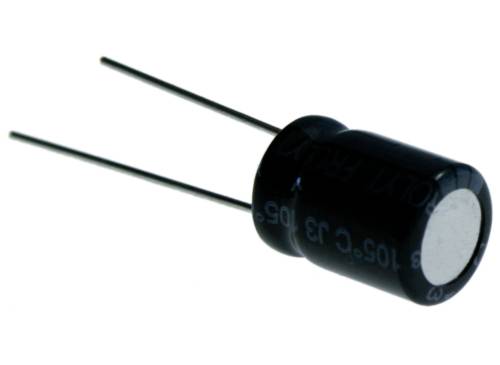

Frolyt E-KM3057 Electrolytic capacitor Radial lead 5 mm 100 µF 25 V (Ø x L) 8.7 mm x 12.7 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
100 µF
Nominal voltage
25 V
CS
5 mm
Datasheet (PDF)
Number
Total (€ 1.49 / piece)
€ 1.49
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 100 µF, 25 V (DC), -10/+50 %, radial, RM 5 mm, Ø 8.7 mm
Our service for you
Technical specifications
- Tolerance -10/+50 %
- ESR (equivalent series resistance) 2.2 Ω
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm
- Dim
(Ø x L) 8.7 mm x 12.7 mm
- Capacity (elec.)
100 µF
- Nominal voltage
25 V
- (Ø)
8.7 mm
- Content
1 pc(s)
- Length
12.7 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
E-KM3057
Documents & Downloads
Datasheet
Datasheet 3046315 Frolyt E-KM3057 Electrolytic capacitor Radial lead 5 mm 100 µF 25 V (Ø x L) 8.7 mm x 12.7 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046315 Frolyt E-KM3057 Electrolytic capacitor Radial lead 5 mm 100 µF 25 V (Ø x L) 8.7 mm x 12.7 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating coating type FET EKM. With one-sided wire connections For vertical mounting in printed circuits, according to DIN IEC 60384-1 With nominal voltage 25 VDC.
