Frolyt E-KR3351 Electrolytic capacitor Radial lead 7.5 mm 470 µF 63 V (Ø x L) 16.5 mm x 30 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
470 µF
Nominal voltage
63 V
CS
7.5 mm
Datasheet (PDF)
Number
Total (€ 3.79 / piece)
€ 3.79
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 470 µF, 63 V (DC), -10/+50 %, radial, RM 7.5 mm, Ø 16.5 m
Our service for you
Technical specifications
- Tolerance -10/+50 %
- ESR (equivalent series resistance) 200 mΩ
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm

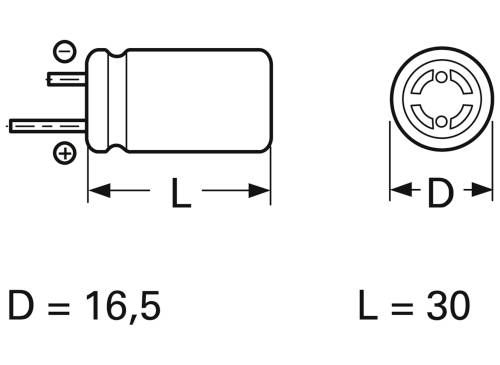

- Dim
(Ø x L) 16.5 mm x 30 mm
- Capacity (elec.)
470 µF
- Nominal voltage
63 V
- (Ø)
16.5 mm
- Content
1 pc(s)
- Length
30 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
E-KR3351
Documents & Downloads
Datasheet
Datasheet 3046375 Frolyt E-KR3351 Electrolytic capacitor Radial lead 7.5 mm 470 µF 63 V (Ø x L) 16.5 mm x 30 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046375 Frolyt E-KR3351 Electrolytic capacitor Radial lead 7.5 mm 470 µF 63 V (Ø x L) 16.5 mm x 30 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating coating type FET ECR. With low impedance (Z) and one-sided wire connections For vertical mounting on circuit boards, according to DIN IEC 60384-1 With nominal voltage 63 VDC.
