1/2
Frolyt E-RY3017 Electrolytic capacitor Radial lead 7.5 mm 2200 µF 50 V 20 % (Ø x L) 16.5 mm x 36.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
2200 µF
Nominal voltage
50 V
CS
7.5 mm
Datasheet (PDF)
Number
Total (€ 4.29 / piece)
€ 4.29
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 2200 µF, 50 V (DC), ±20 %, radial, RM 7.5 mm, Ø 16.5 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 70 mΩ
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm
- Dim

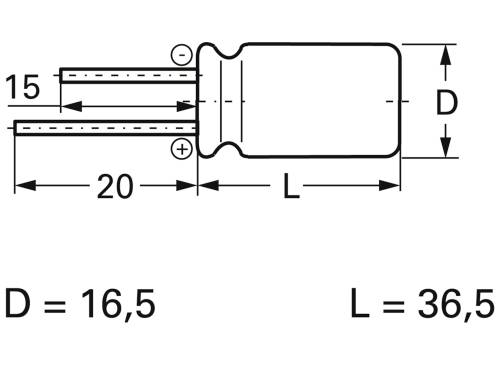

(Ø x L) 16.5 mm x 36.5 mm
- Capacity (elec.)
2200 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- (Ø)
16.5 mm
- Content
1 pc(s)
- Length
36.5 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-55 °C
- Type
E-RY3017
Documents & Downloads
Datasheet
Datasheet 3046312 Frolyt E-RY3017 Electrolytic capacitor Radial lead 7.5 mm 2200 µF 50 V 20 % (Ø x L) 16.5 mm x 36.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046312 Frolyt E-RY3017 Electrolytic capacitor Radial lead 7.5 mm 2200 µF 50 V 20 % (Ø x L) 16.5 mm x 36.5 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating coating type FAT RY. With particularly low ESR/Z, one-sided wire ends For vertical mounting, in accordance with DIN IEC 60384-1 With nominal voltage 50 VDC.
This text is machine translated.
This text is machine translated.
