Frolyt E-RY3056 Electrolytic capacitor Radial lead 7.5 mm 470 µF 100 V 20 % (Ø x L) 16.5 mm x 30 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
470 µF
Nominal voltage
100 V
CS
7.5 mm
Datasheet (PDF)
Number
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 470 µF, 100 V (DC), ±20 %, radial, RM 7.5 mm, Ø 16.5 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 240 mΩ
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm
- Dim

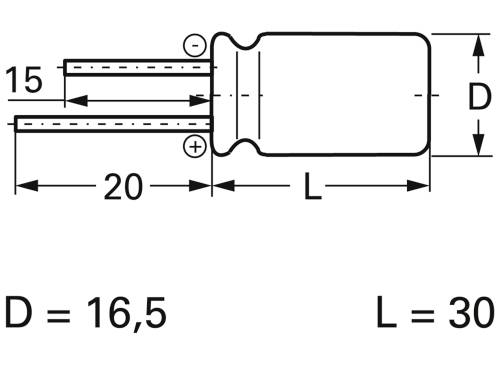

(Ø x L) 16.5 mm x 30 mm
- Capacity (elec.)
470 µF
- Nominal voltage
100 V
- Tolerance ±
20 %
- (Ø)
16.5 mm
- Content
1 pc(s)
- Length
30 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-55 °C
- Type
E-RY3056
Documents & Downloads
Datasheet
Datasheet 3046306 Frolyt E-RY3056 Electrolytic capacitor Radial lead 7.5 mm 470 µF 100 V 20 % (Ø x L) 16.5 mm x 30 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046306 Frolyt E-RY3056 Electrolytic capacitor Radial lead 7.5 mm 470 µF 100 V 20 % (Ø x L) 16.5 mm x 30 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating coating type FAT RY. With particularly low ESR/Z, one-sided wire ends For vertical mounting, in accordance with DIN IEC 60384-1 With nominal voltage 100 VDC.
