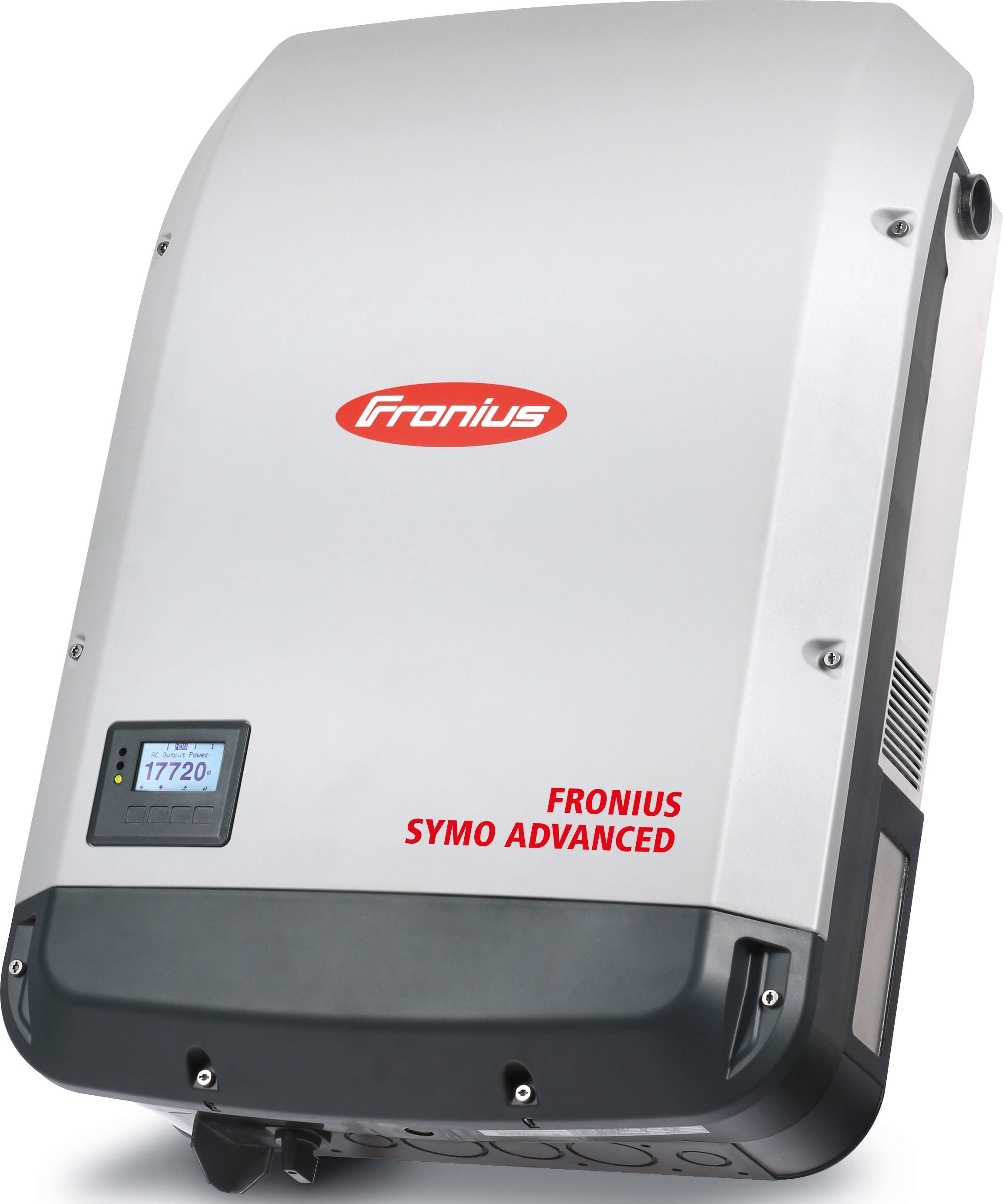

Fronius 4,210,159,001 4,210,159,001 Inverter 10000.000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Max. Input current at DC 43.5 A.
- Rated voltage MPP 270..800 V
- Rated output AC 10000 W
- Number of independent MPPT inputs: 2
- Maximum efficiency: 97.8 %
- European efficiency: 97.4%
- With transformer: No.
- Supply phases: 3-phase
- With data logger: No.
- Display: Standard
- Ethernet: yes
- Wireless: Yes
- Integrated battery: No.
- Emergency power capable: No.
- Suitable for outdoor installation: Yes
- Protection class (IP) IP66
- DC connection: Screw terminals
- AC-Connection: Screw terminals
- Weight: 35.4 kg
- Width 510 mm
- Height: 725 mm
- Depth: 225 mm
- Product type
Inverter
10000.000 W
- Nominal voltage (details)
270 - 800 V
- Dim
(W x H x D) 510.00 x 725.00 x 225.00 mm
- Efficiency
97.4 %
- Weight
35.40 kg
- Nominal current
43.5 A
- Width
510.00 mm
- Height
725.00 mm
- Depth
225.00 mm
IP66
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3136726 Fronius 4,210,159,001 4,210,159,001 Inverter 10000.000 W
User & Safety Instructions
User & Safety Instructions 3136726 Fronius 4,210,159,001 4,210,159,001 Inverter 10000.000 W
Description
The Fronius Symo Advanced features a flexible plant design and the highest safety standards. The SuperFlex design makes it possible. The solar modules can be flexibly aligned and interconnected as the Fronius Symo Advanced processes a wide input voltage range as well as very high PV module currents. The Fronius Symo Advanced achieves maximum yield, even if the solar modules are partially in shadow, with the Dynamic Peak Manager. Software-based intelligent shading management is factory-installed and requires no additional components. The new Fronius Arc Guard technology protects against dangerous arcs.
