Fronius DC SPD Typ 1+2 GEN24 4,240,313,CK Surge protection
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Surge protection
- Dim
(W x H x D) 18.5000 x 11.5000 x 7.0000 mm
- Weight
0.8370
- Factory colour
Multicolour
- Nominal voltage
1000 V
- Width
18.5000 mm
- Height
11.5000 mm
- Depth
7.0000 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2746010 Fronius DC SPD Typ 1+2 GEN24 4,240,313,CK Surge protection
User & Safety Instructions
User & Safety Instructions 2746010 Fronius DC SPD Typ 1+2 GEN24 4,240,313,CK Surge protection
Description

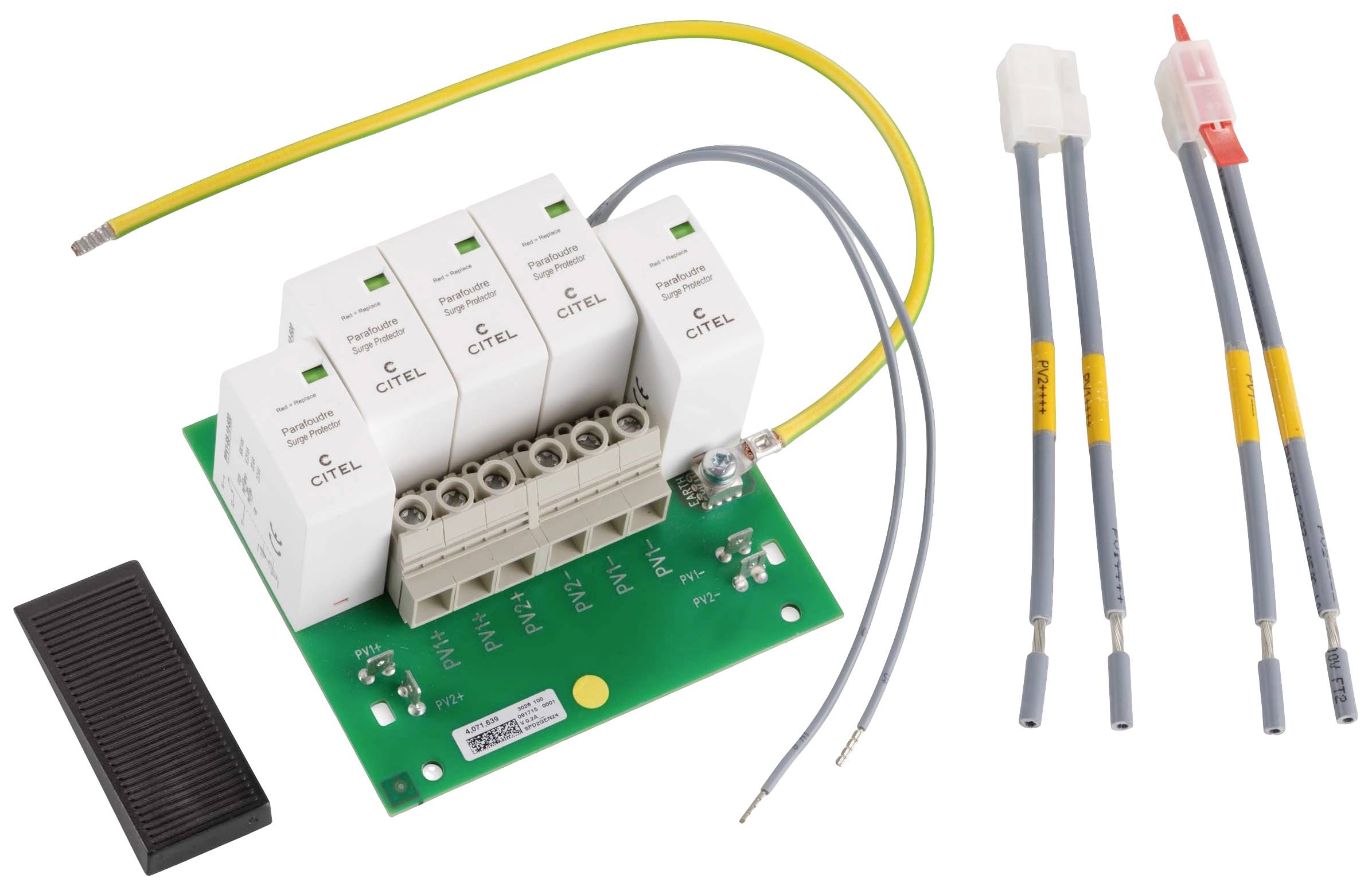

The type 1+2 surge protector for direct and indirect lightning strikes is suitable for use with the Fronius Symo GEN24 plus and Fronius PRIMO GEN24 plus inverters (all performance classes). The surge protection can be used equally for all devices, regardless of whether 1 or 2 trackers are used. In operation with only one tracker, one input at the surge protection remains unoccupied. The surge protection is delivered as a retrofit kit and can be installed in the connection area of the inverter in a few minutes.
