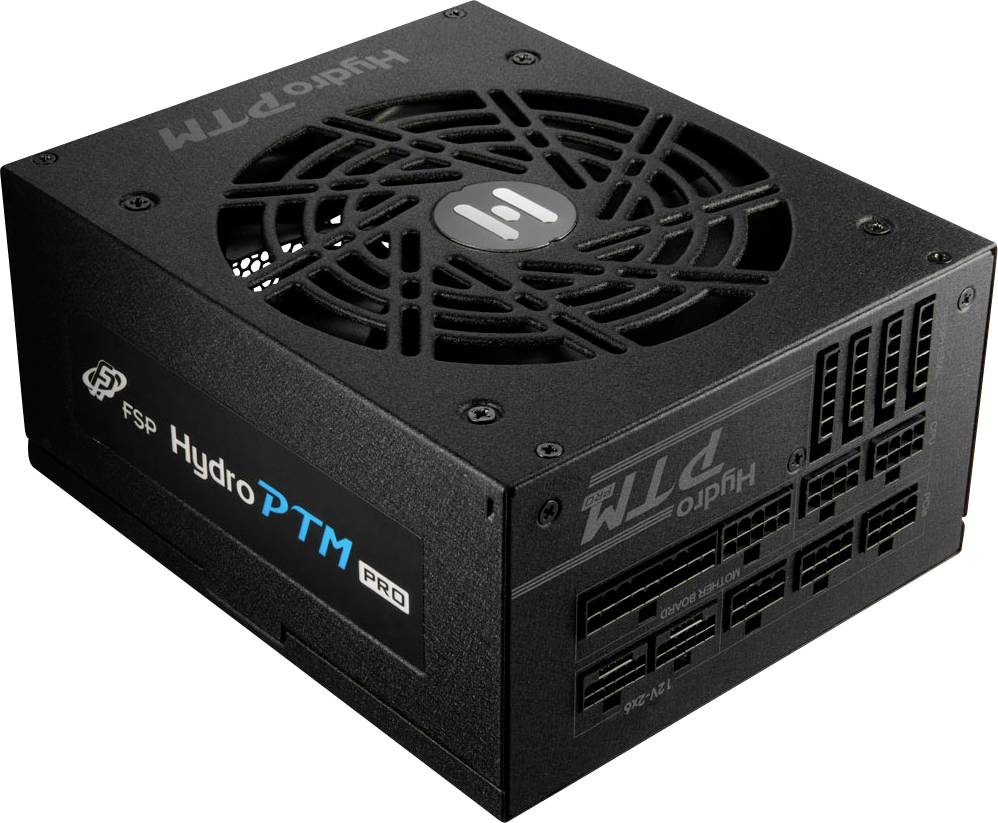

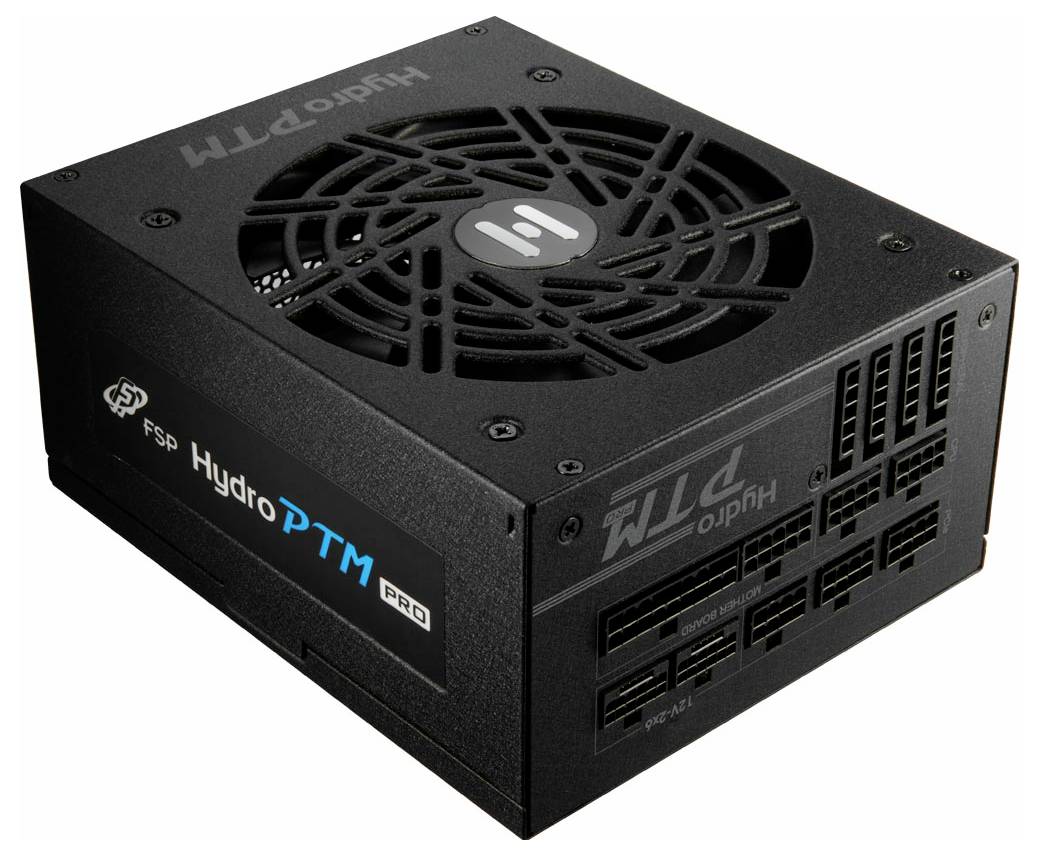

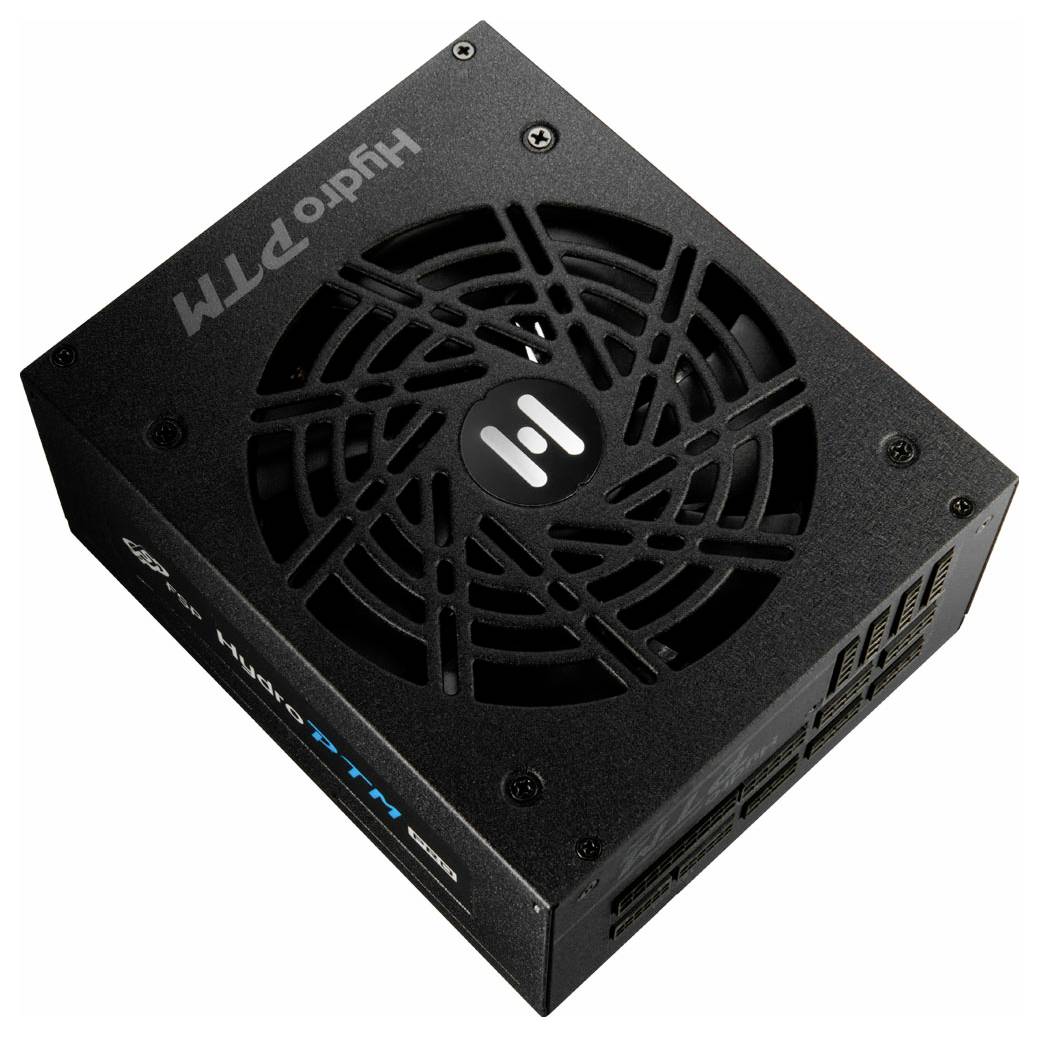

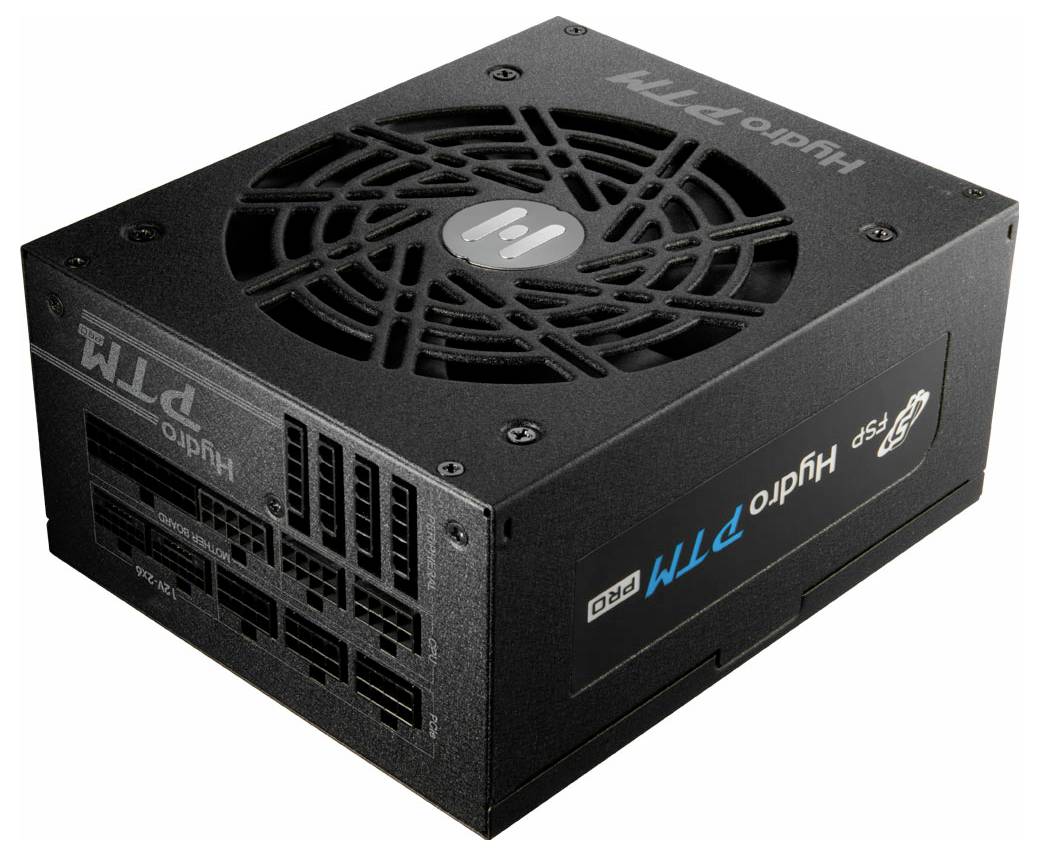

FSP Fortron HYDRO PTM PRO 1350M PC power supply unit 1350 W ATX 80 PLUS Platinum

New ATX power supply specifications
The updated ATX 3.0 specifications meet next-generation hardware performance requirements and ensure that users get the best possible stable and cost-optimized performance with the highest energy efficiency.

High compatibility for high performance

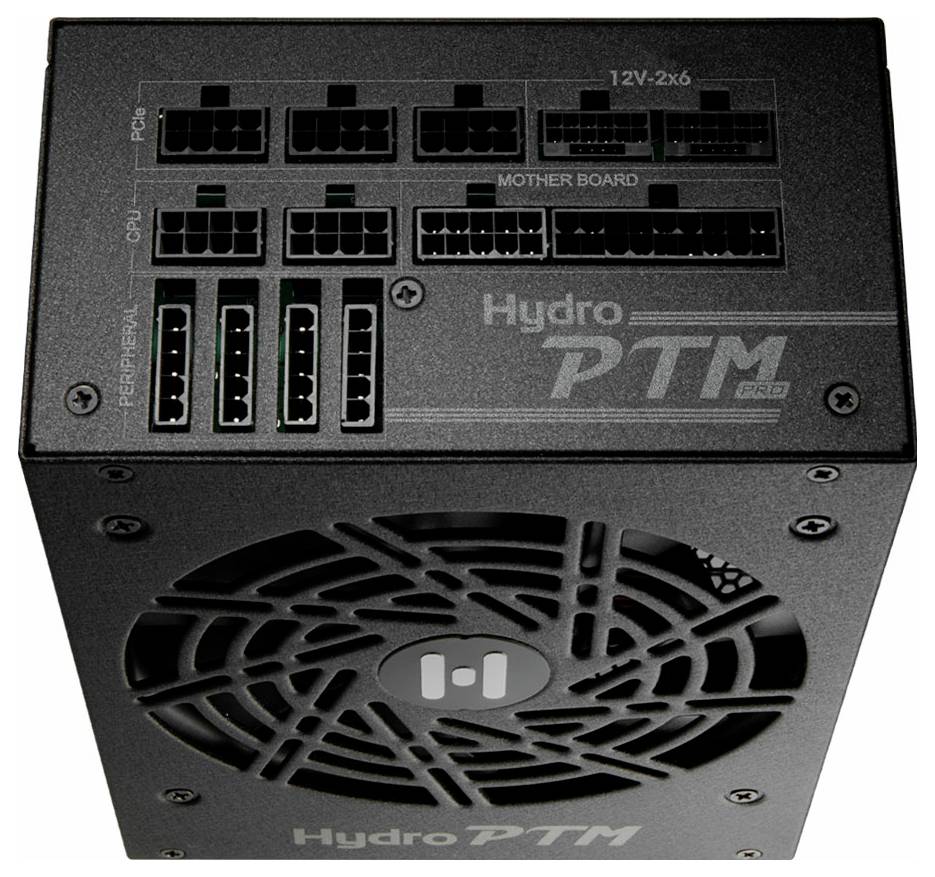

The series has a native PCIe Gen 5 port and also supports 3 PCIe 6+2-pin slots for graphics cards as well as 2 CPU slots for higher performance.

Consistent coating application
No moisture, no dust and no stains
The conforming coating protects the power supply and its internal components against dust, moisture and stains. The Hydro PTM PRO series has a conformal coating which guarantees reliable performance in a demanding environment. It has been tested to work properly even at a relative humidity of 95%.

LLC full-bridge topology with DC-DC-module design
The Hydro PTM PRO series is characterized by an extremely strict voltage regulation, so that the output voltage is below +/- 1 % at a load change of 10 % and offers you an outstanding efficiency and voltage stability.

Fully modular design for quick and easy installation
The fully modular design simplifies installation and allows you to use only the cables you need, making the construction clearer and cleaner.

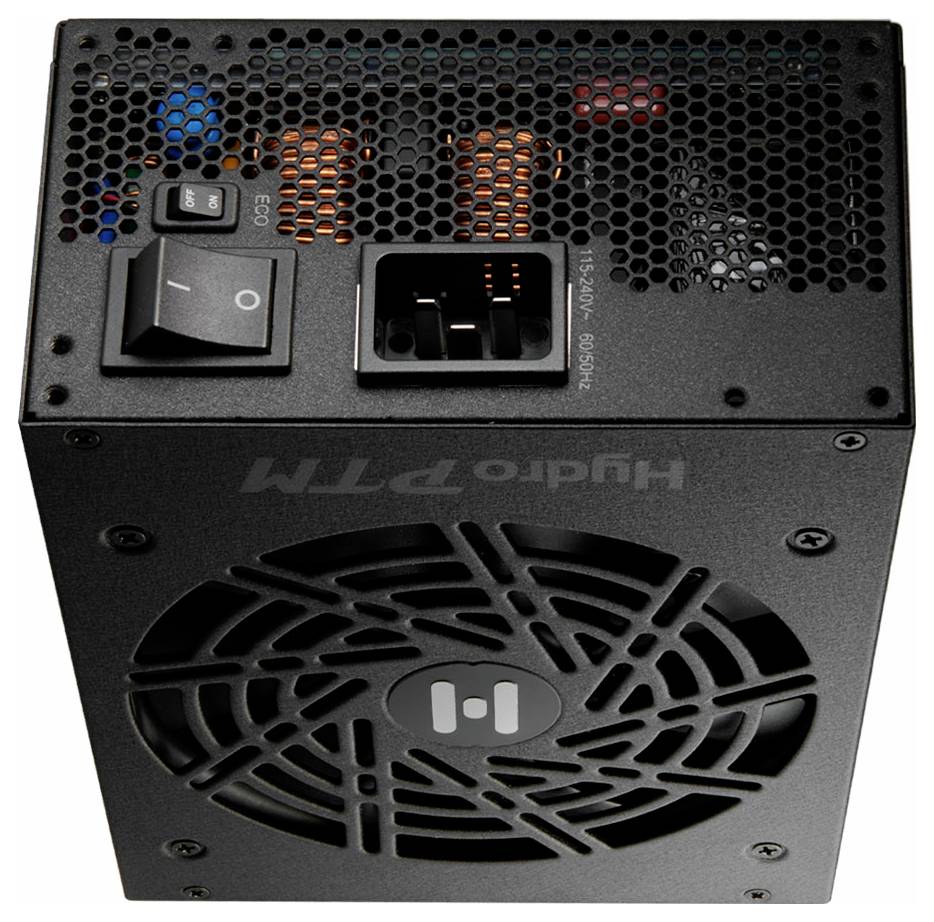

Energy saving switch, quieter and more durable fans
When the power-saving switch is switched on, the power supply runs with low power consumption and is whisper-quiet. The power supply fan will not work if the power supply is less than 30% full.

The Hydro PTM PRO series is equipped with a FDB-fan and an intelligent 0dBA-function for noise reduction and is characterized by a longer life.

80 Plus® Platinum certification
The Hydro PTM PRO series has the 80 Plus Platinum certification, WAS means that your power supplies use less heat and have lower operating costs. The power supplies work guaranteed with an efficiency of at least 92% at 50% load of the rated power.

Complies with the requirements of IEC 62368
FSP Group offers state-of-the-art eco-power technology and additional safety approvals, so its power supplies are ahead of the changes in regulations. FSP has switched most power supplies to the newer standard IEC 62368.

Supports the latest CPU systems
Hydro PTM PRO supports high-performance systems and conforms to the latest standards of Intel, ATX12V V3.0 and EPS12V V2.92.

Security and protection
Numerous protective circuits for the security of your hardware: OVP (overvoltage protection), UVP (undervoltage protection), OCP (excess current protection), OPP (overcurrent protection), SCP (short-circuit protection) and OTP (overheating protection).

This text is machine translated.
