Fukushima Futaba MPC70 0R1 K HV resistor 0.1 Ω 2 W 10 % 1 pc(s)
Part number:
Item no:
Resistance
0.1 Ω
Power rating
2 W
Content
1 pc(s)
Product type
HV resistor
Tolerance ±
10 %
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.15409
10
8% = € 0.09
€ 1.06118
25
11% = € 0.13
€ 1.02403
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.15409 / piece)
€ 1.15
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Fukushima Futaba metal tape resistor 2W 10% R10
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series MPC
- Delivery form: Loose
- Diameter, connection wire 0.6 mm
- Solder-ability 350 °C / 3 s.
- Resistance value 0.1 ohms
- Unit of resistance: Ohm
- Resistance value_1: 0.1
- Resistance tolerance: ±10 %
- Rated output: 2 W
- Temperature coefficient 350 ppm/°
- Insulation resistance 10 MOhm
- Resistance
0.1 Ω
- Power rating
2 W
- Tolerance ±
10 %
- Temperature coefficient
350 ppm/°C
- Length
13.0 mm
- Width
4.0 mm
- Height
8.0 mm
- CS
9 mm
- Insulation resistance
10 MΩ
- Content
1 pc(s)
- Dim
(L x W x H) 13.0 x 4.0 x 8.0 mm
- RoHS-compliant
Yes
- Type
MPC70 0R1 K
- Product type
HV resistor
Documents & Downloads
Datasheet
Datasheet 3523332 Fukushima Futaba MPC70 0R1 K HV resistor 0.1 Ω 2 W 10 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523332 Fukushima Futaba MPC70 0R1 K HV resistor 0.1 Ω 2 W 10 % 1 pc(s)
Description

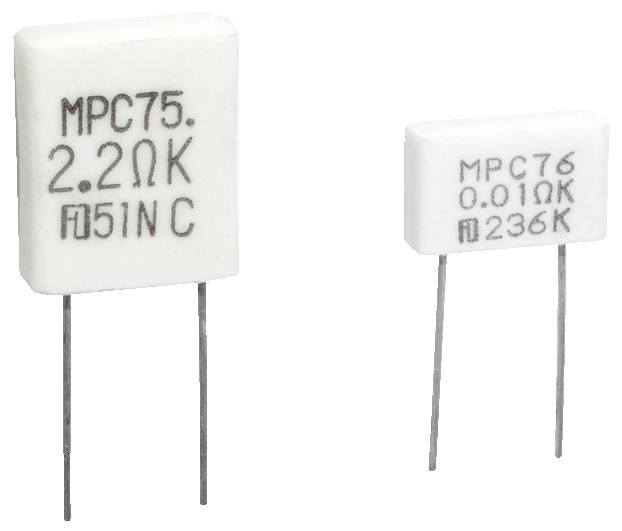

Metal band and high-performance resistors
This text is machine translated.
This text is machine translated.
Features
- Metal strap-Resistance
- Resistance element from meanders-shaped punched metal tape (special alloy from Ni/Cr/Fe/Cu)
- Very low inductive resistance
- Even distribution of the temperature via the resistance element
- Hermetically sealed ceramic housing
- Empty spaces filled with ceramic powder using special cement
- Almost even heat dissipation over the entire body
- MPC74_: Pulse-proof
