Fusion splicer NP-CFS100-KIT-PRO NetPeppers
EAN:
Part number:
Item no:
Number
Total (€ 6,345.00 / piece)
€ 6,345.00
incl. VAT
14-day return policy included
Technical specifications
- Alignment Method: Core Alignment (3-Axis Controlled)
- Supported fiber categories: Single mode, multi-mode
- Ø Covering supported: 80 - 150 μm
- Ø Coating supported: 100 - 1000 μm
- Splicing time: Ø ≤ 9 s (depending on mode and fiber orientation)
- Splice operations per electrode: Approx. 5000 splicing operations
- Splice modes: Automatic and manual control
- Heat-up time for shrink oven: Approx. 25 s, adjustable
- Product type
Fusion splicer
- Display
LCD
- Splicing mode
Automatic
Manual
- Burns per electrode
5000
- Dim
(L x W x H) 147 x 138 x 135 mm
25 s
- Features
Touchscreen
- Width
138 mm
- Height
135 mm
- Length
147 mm
- Splicing time
9 s
- Type
NP-CFS100-KIT-PRO
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339536 Fusion splicer NP-CFS100-KIT-PRO NetPeppers
Description
The core-oriented, 3-axis controlled CFS100 fusion splice is the perfect companion for small and large splice projects. The light and flexible precision splice makes it possible to splice all common fibers. The lightweight and flexible precision splicing device allows for splicing G.651 fibers with a splice loss of less than 0.01 dB and G.652 fibers less than 0.02 dB (typical). Equipped with removable universal holding clamps, SOC-terminals as well as internal thermometer and barometer, the CFS100 can be used everywhere. A quick start time of five seconds and an average of nine seconds per connection as well as the automatic heat oven for shrink tubes accelerate the workflow and lead to more connections per time.
This text is machine translated.
This text is machine translated.
Features
- PRECISE SPLICE RESULTS
- 6 motors - core alignment for precise splice results
- UNIVERSAL USE
- Support for all common fibers
- 4-IN-1 fiber holding clips
- For bare fibers, pigtail, patch cable and FTTH-inner fiber splice
- FAST COVERED
- Splice time ≤ 9 s, heat-up time ≤ 25 s, adjustable
- EVERYTHING AUTOMATIC
- Final surface inspection, automatic arc adjustment, loss estimation, temperature and pressure compensation
- AUTOMATIC SHRINK KNOB
- For protective tubing up to 60 mm
- LED ILLUMINATION
- Of the splice area, connection of an external work lamp possible
Scope of delivery

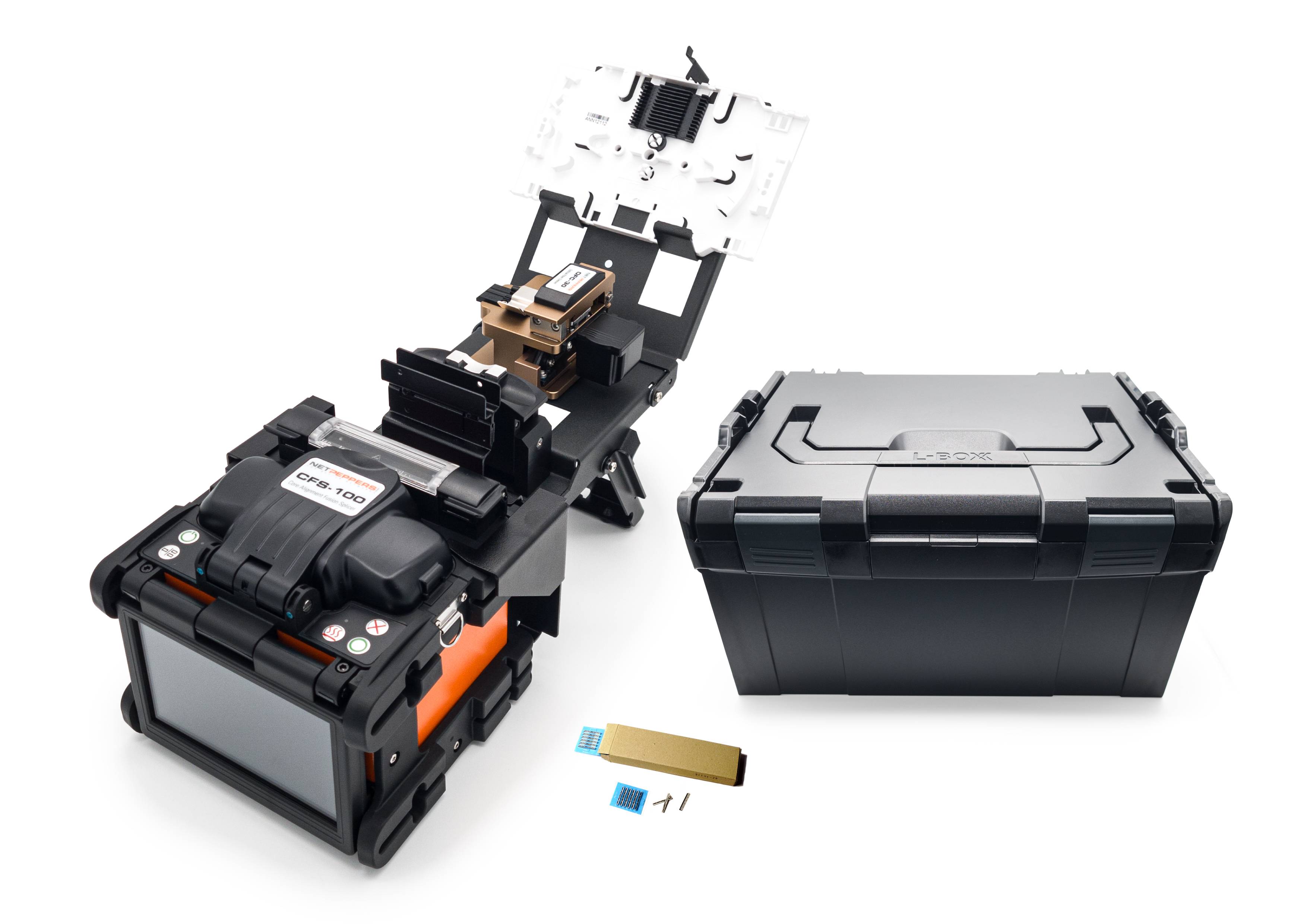

- 1x NetPeppers CFS-100 splicebox set (incl. OFC-30 Cleaver)
- 1x NetPeppers CFS-100 Workstation pro with cassette holder

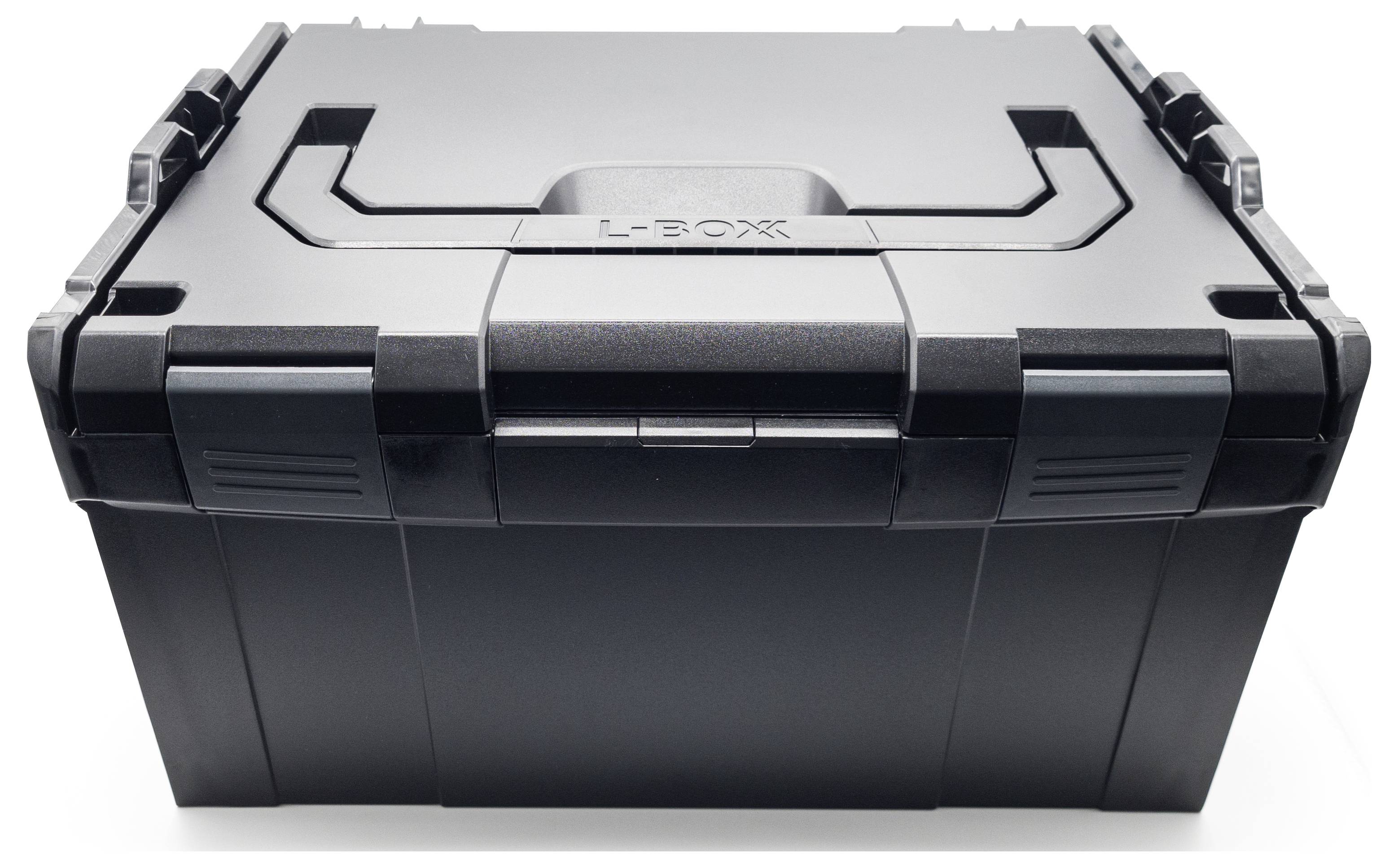

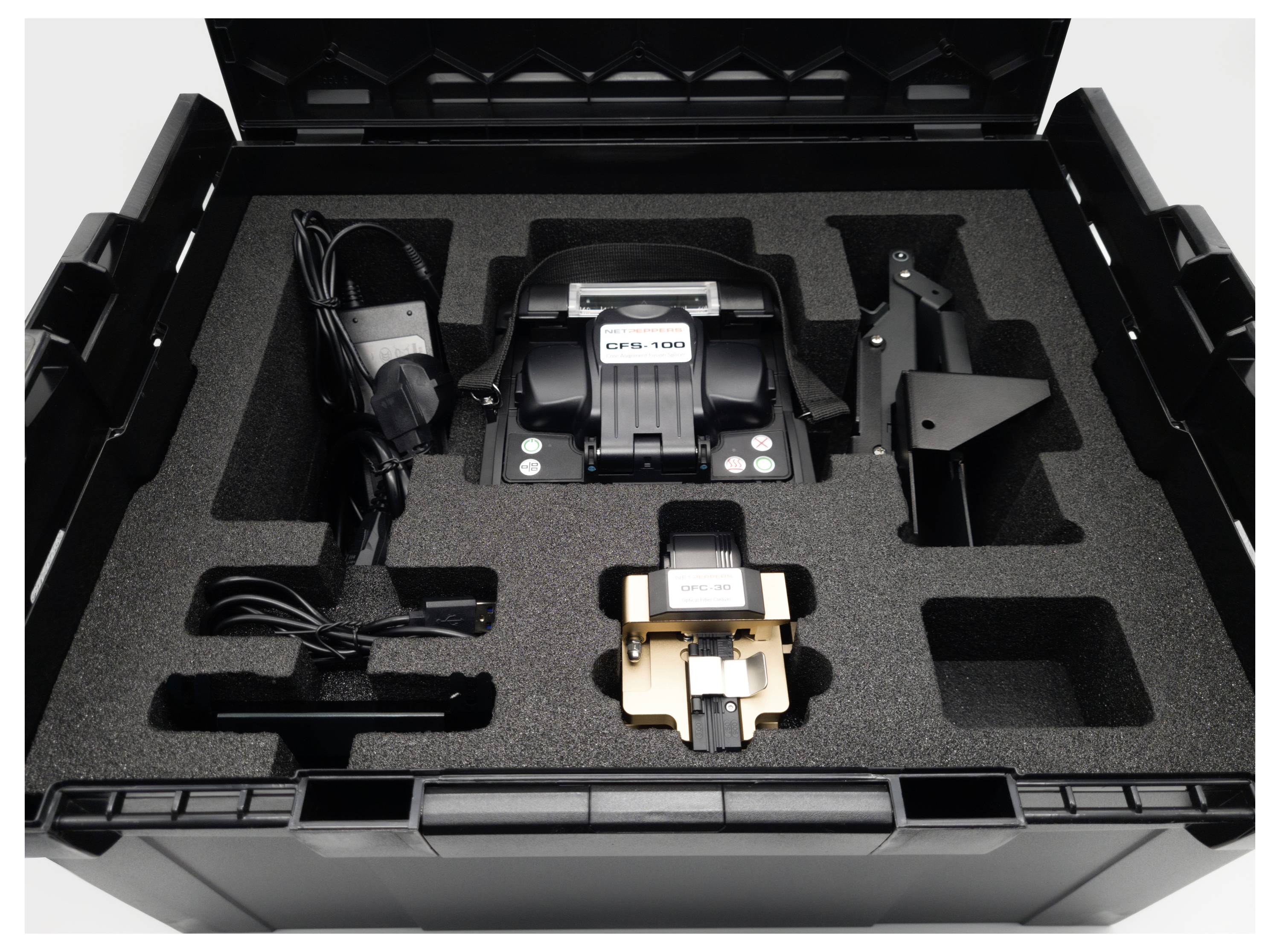

- 1x Sortimo-compatible storage box for CFS-100 splicebox and accessories
- 1x Telent Splice protection tool
- 1x pack NetPeppers 30 mm crimp splice protectors (150 pieces)
