Fusion splicer NP-FIBER-ALLINONE NetPeppers Networks
EAN:
Part number:
Item no:
Number
Total (€ 17,785.00 / piece)
€ 17,785.00
incl. VAT
14-day return policy included
Technical specifications
- CFS-100 Split device
- Alignment Method: Core Alignment (3-Axis Controlled)
- Supported fiber categories: Single mode, multi-mode
- Ø Covering supported: 80 - 150 μm
- Ø Coating supported: 100 - 1000 μm
- Splicing time: Ø ≤ 9 s (depending on mode and fiber orientation)
- Splice operations per electrode: Approx. 5000 splicing operations
- Splice modes: Automatic and manual control
- Heat-up time for shrink oven: Approx. 25 s, adjustable
- OTDR 1000
- Product type
Fusion splicer
- Display
LCD
- Splicing mode
Automatic
Manual
- Burns per electrode
5000
- Dim
(L x W x H) 147 x 138 x 135 mm
- Range
Networks
25 s
- Features
Touchscreen
- Width
138 mm
- Height
135 mm
- Length
147 mm
- Splicing time
9 s
- Type
NP-FIBER-ALLINONE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339546 Fusion splicer NP-FIBER-ALLINONE NetPeppers Networks
User & Safety Instructions 3339546 Fusion splicer NP-FIBER-ALLINONE NetPeppers Networks
Security datasheet
Security datasheet 3339546 Fusion splicer NP-FIBER-ALLINONE NetPeppers Networks
Signal word
GHS / EUH statements
- EUH 210: Safety data sheet available on request
Description
The core-oriented, 3-axis controlled CFS100 fusion splice is the perfect companion for small and large splice projects. The light and flexible precision splice makes it possible to splice all common fibers. The lightweight and flexible precision splicing device allows for splicing G.651 fibers with a splice loss of less than 0.01 dB and G.652 fibers less than 0.02 dB (typical). Equipped with removable universal holding clamps, SOC-terminals as well as internal thermometer and barometer, the CFS100 can be used everywhere. A quick start time of five seconds and an average of nine seconds per connection as well as the automatic heat oven for shrink tubes accelerate the workflow and lead to more connections per time.

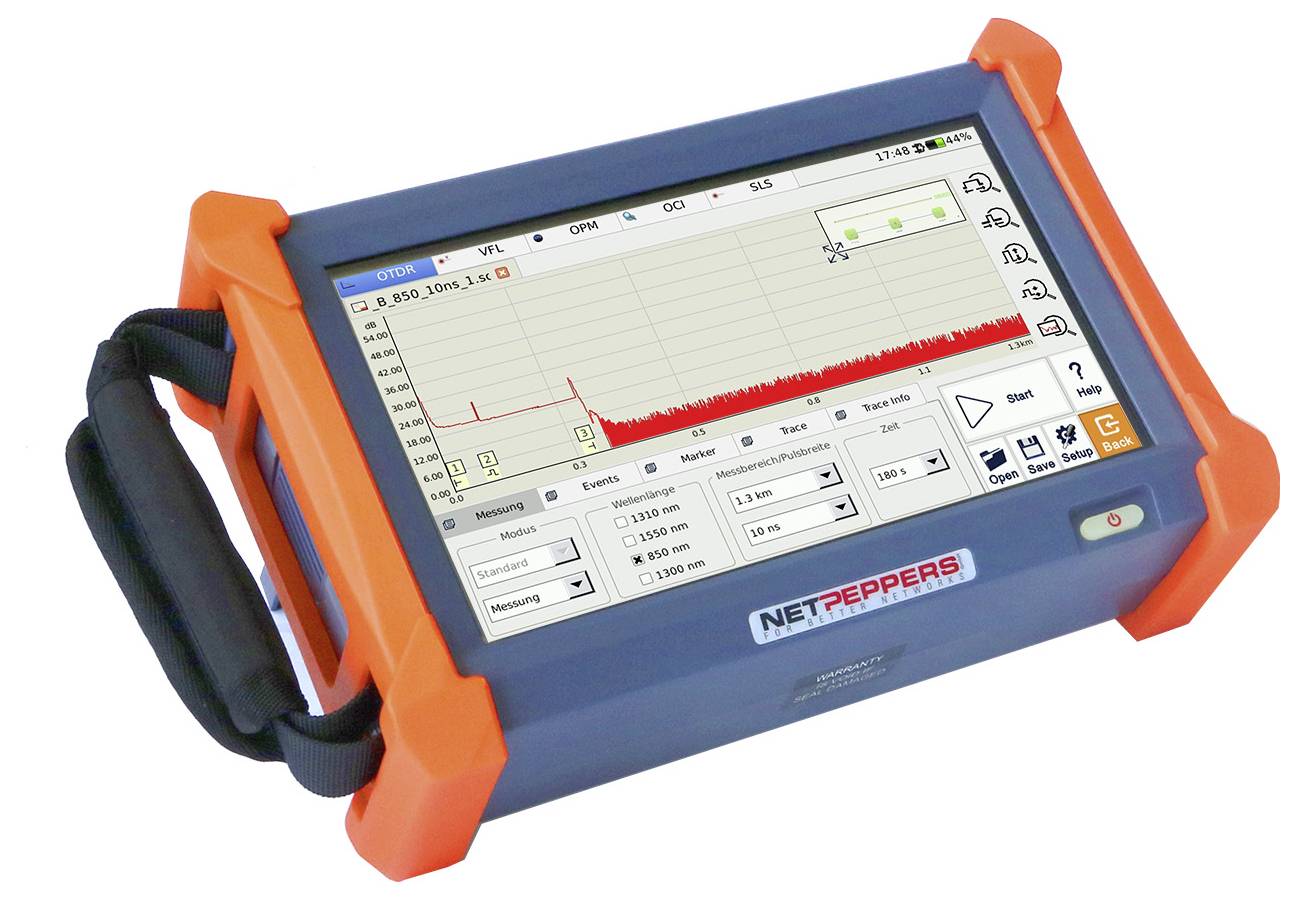

The OTDR1000 is the optimal platform for acceptance measurements or for troubleshooting in fiber optic networks. It offers enough reserves for applications in the FFTX, LAN and WAN areas, no matter whether Quad-version (SM/MM) or as pure single-mode OTDR.
This text is machine translated.
The OTDR1000 is the optimal platform for acceptance measurements or for troubleshooting in fiber optic networks. It offers enough reserves for applications in the FFTX, LAN and WAN areas, no matter whether Quad-version (SM/MM) or as pure single-mode OTDR.
This text is machine translated.
Features
- PRECISE SPLICE RESULTS
- 6 motors - core alignment for precise splice results
- UNIVERSAL USE
- Support for all common fibers
- 4-IN-1 fiber holding clips
- For bare fibers, pigtail, patch cable and FTTH-inner fiber splice
- FAST COVERED
- Splice time ≤ 9 s, heat-up time ≤ 25 s, adjustable
- EVERYTHING AUTOMATIC
- Final surface inspection, automatic arc adjustment, loss estimation, temperature and pressure compensation
- AUTOMATIC SHRINK KNOB
- For protective tubing up to 60 mm
- LED ILLUMINATION
- Of the splice area, connection of an external work lamp possible
Scope of delivery
- 1x NetPeppers CFS-100 splicebox set (incl. OFC-30 Cleaver)
- 1 x NetPeppers OTDR 1000

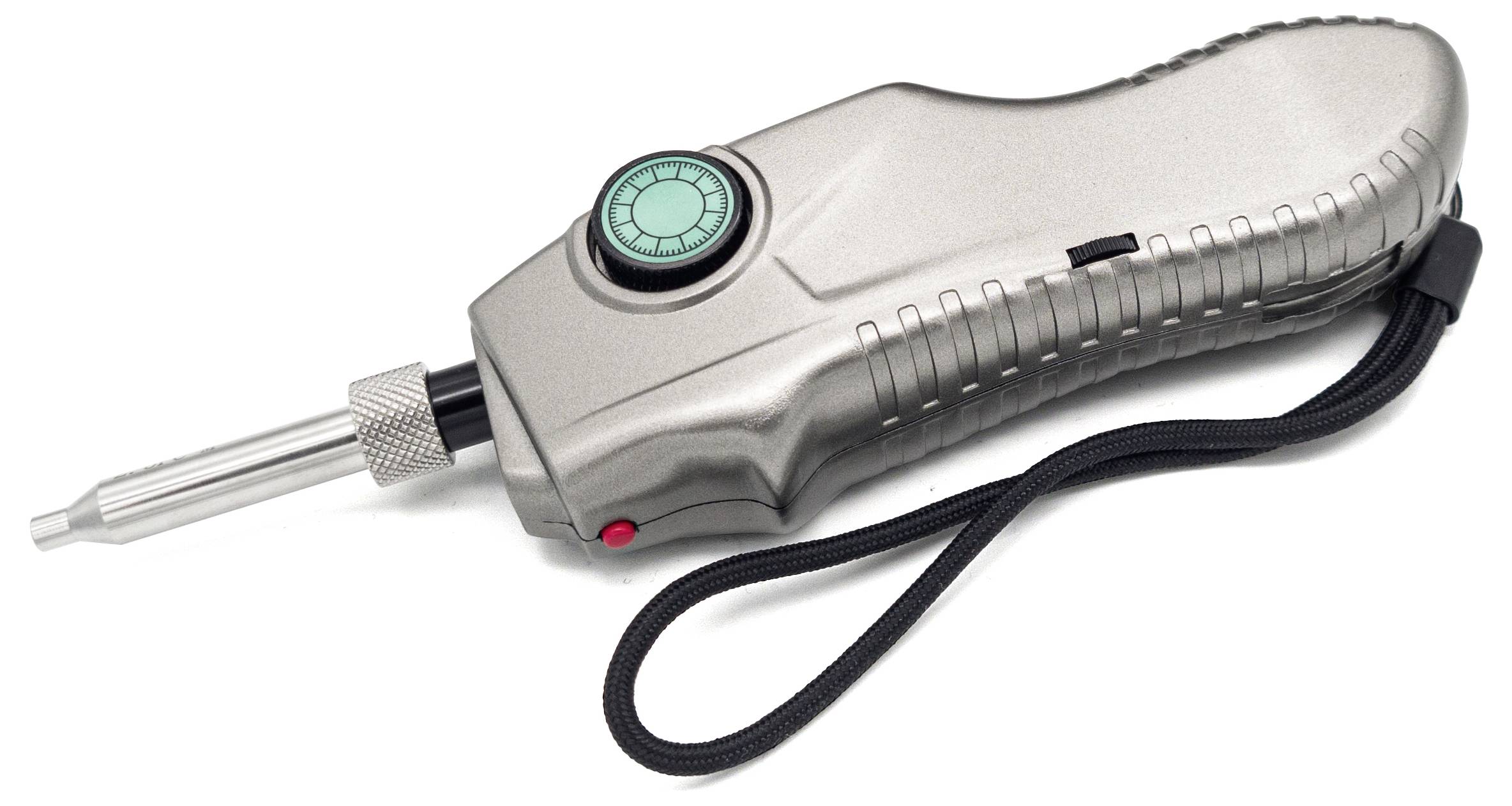

- 1x NetPeppers WFM-50 glass fiber video microscope
- 2x NetPeppers single mode FuturA feed fibers at 150 m (variants possible by arrangement
- 1x NetPeppers CFS-100 workstation with cassette holder
- 1x NetPeppers fiber optic cleaning kit (NP_FIBER-KIT100)
- 1x NetPeppers fiber optic tool box with ELEMENT splice protectors (NP-FIBER-KIT212)
- 1x pack NetPeppers 30 mm crimp splice protectors (150 pieces)
- 1x Sortimo-compatible storage box for CFS-100 splicebox and accessories
- 2x NetPeppers Sortimo - compatible rack slot for I-Boxx 72
