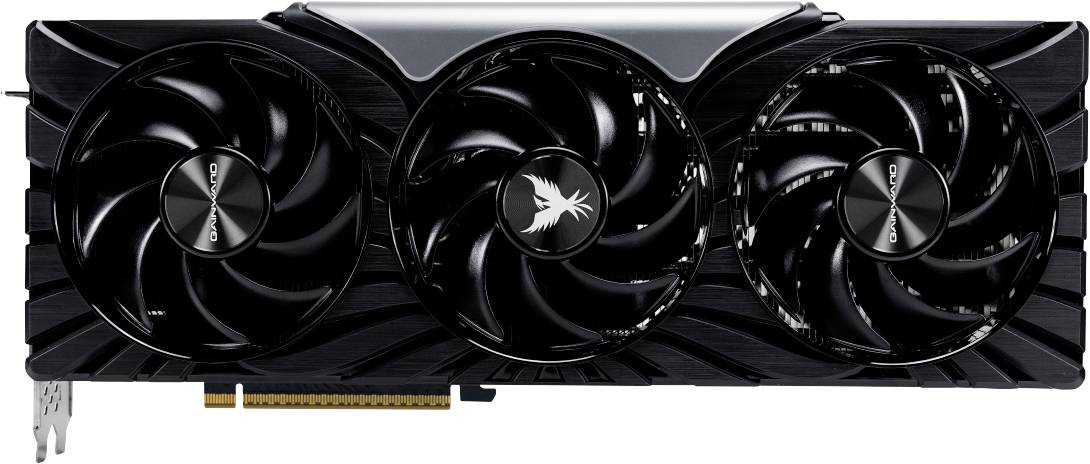

Gainward Graphics card Nvidia GeForce RTX 5080 GeForce RTX 5080 16 GB GDDR7 RAM PCI-Express, HDMI™, DisplayPort

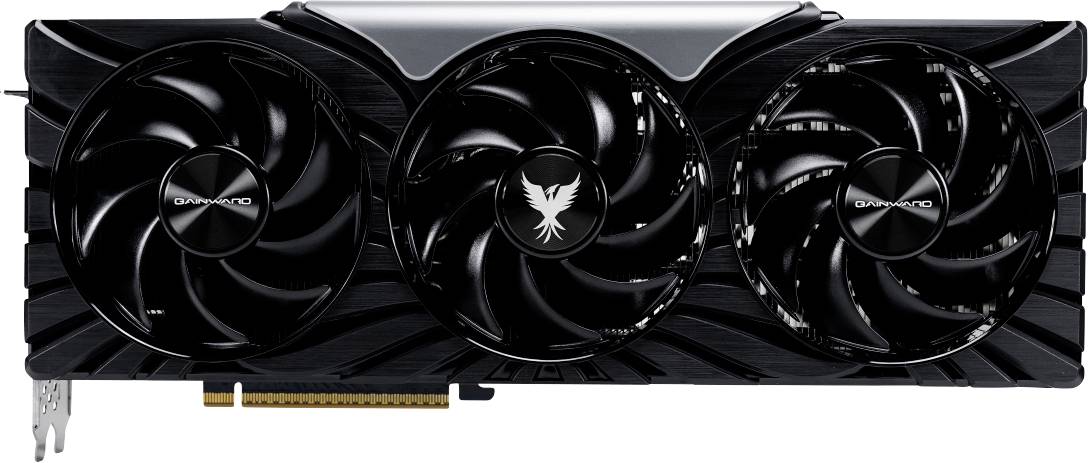

'A graphics card with three large cooling fans and a black design, featuring the Aorus logo.'

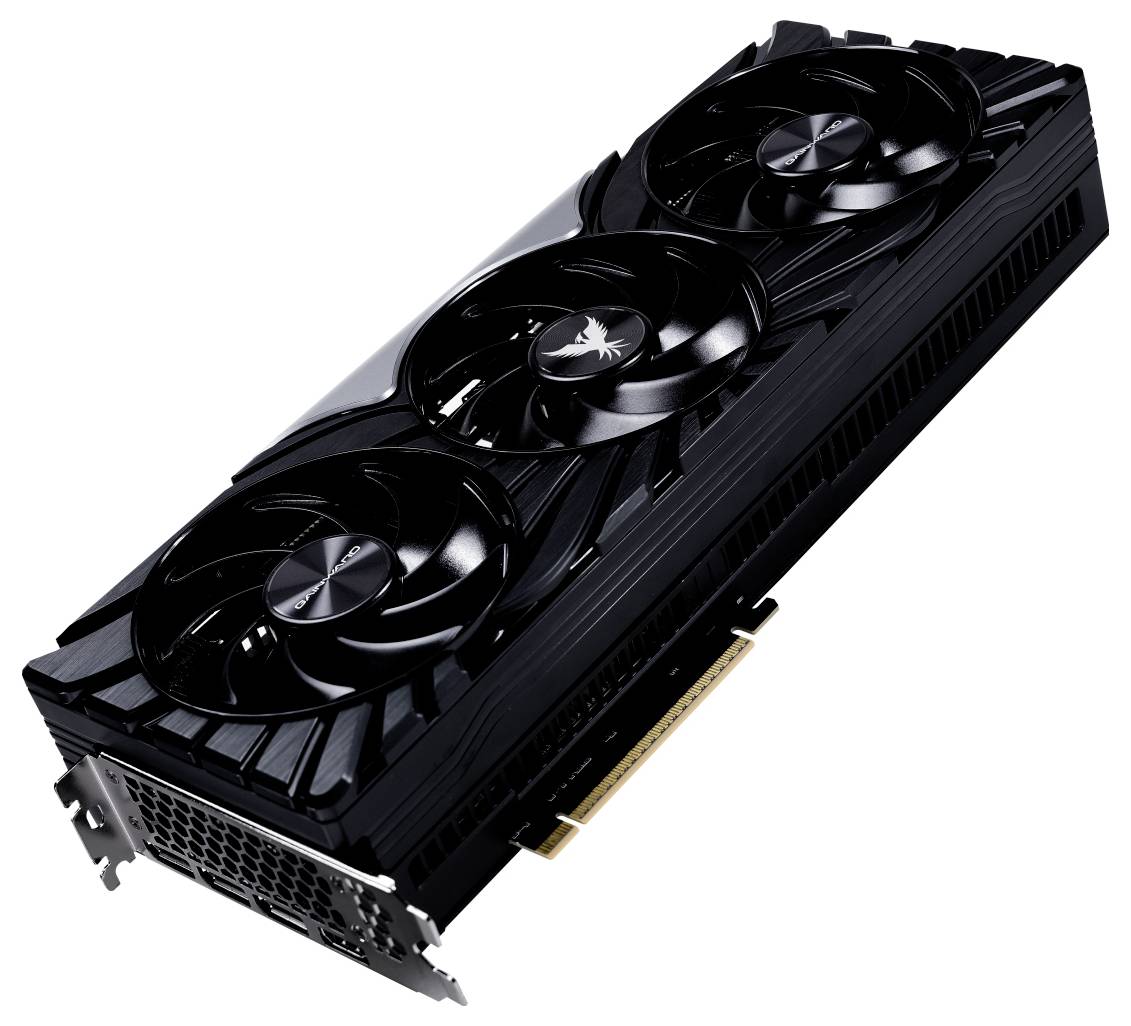

A black graphics card with three cooling fans, angled and shown from above. The design features sharp geometric patterns.
A high-end graphics card with three cooling fans, bearing the label 'GEFORCE RTX', designed for advanced computing or gaming systems.

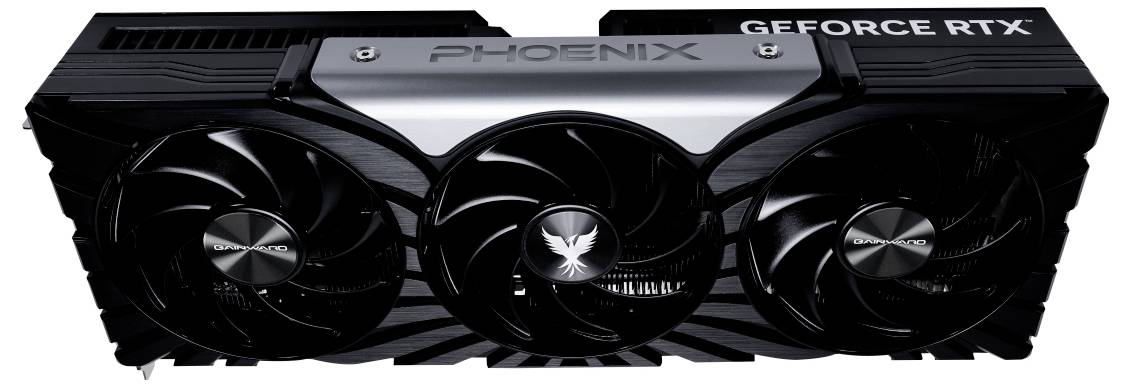

A black graphics card with three cooling fans, marked 'PHOENIX' and 'GEFORCE RTX' on top, indicating a powerful GPU model.
A black graphics card with three large fans and 'GEFORCE RTX' and 'PHOENIX' written on it, viewed from an angle showcasing its design.

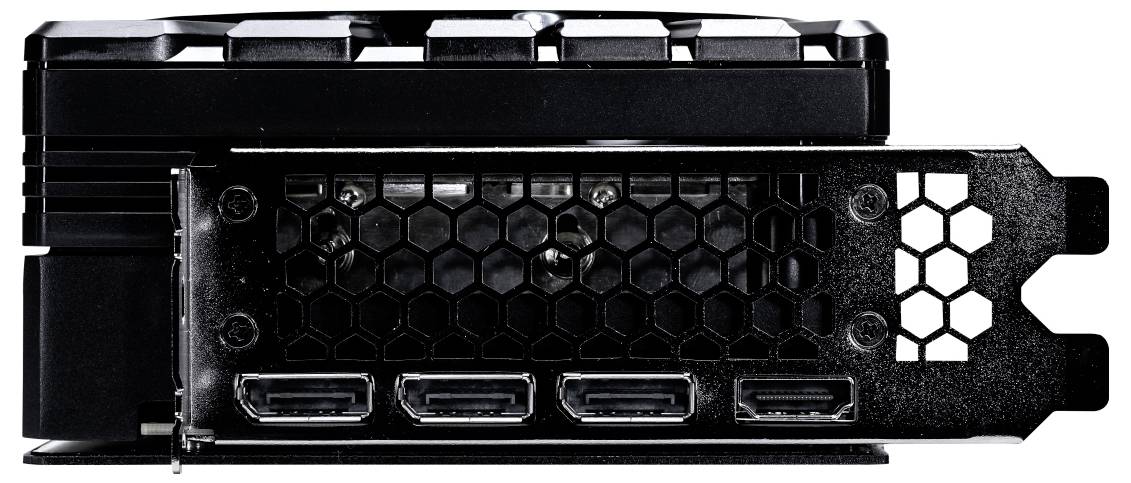

A black graphics card viewed from the back, showing four HDMI ports and a honeycomb vent pattern for ventilation.

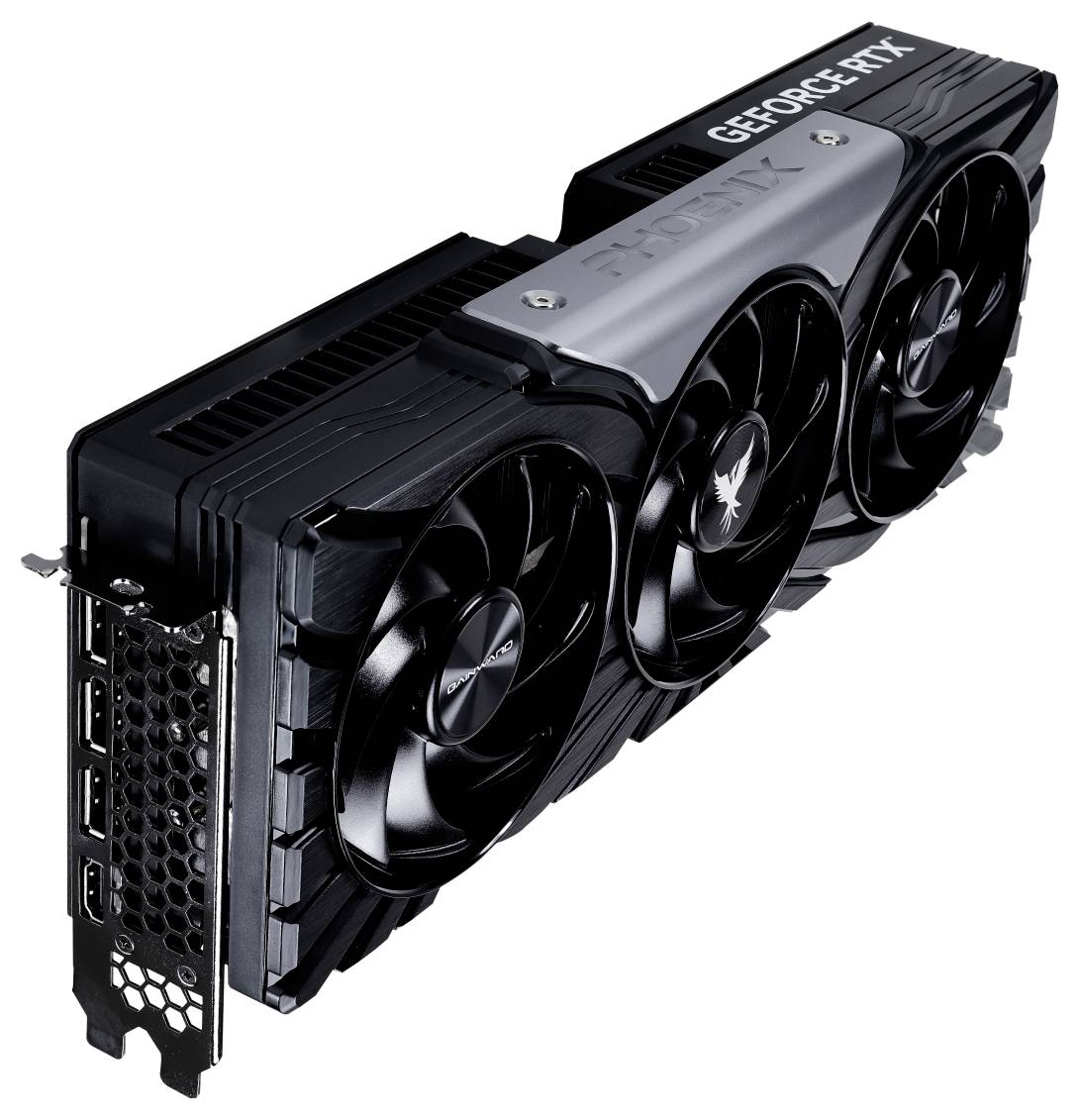

A black graphics card with three large fans, labeled 'GEFORCE RTX' on top.

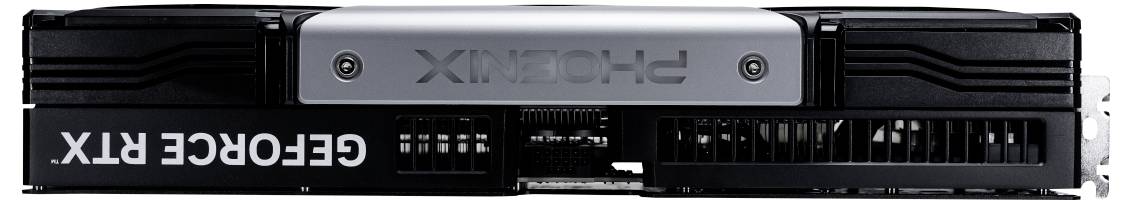

A graphics card labeled 'GEFORCE RTX' and 'PHOENIX' viewed from the side, showing cooling fans and heat sinks.

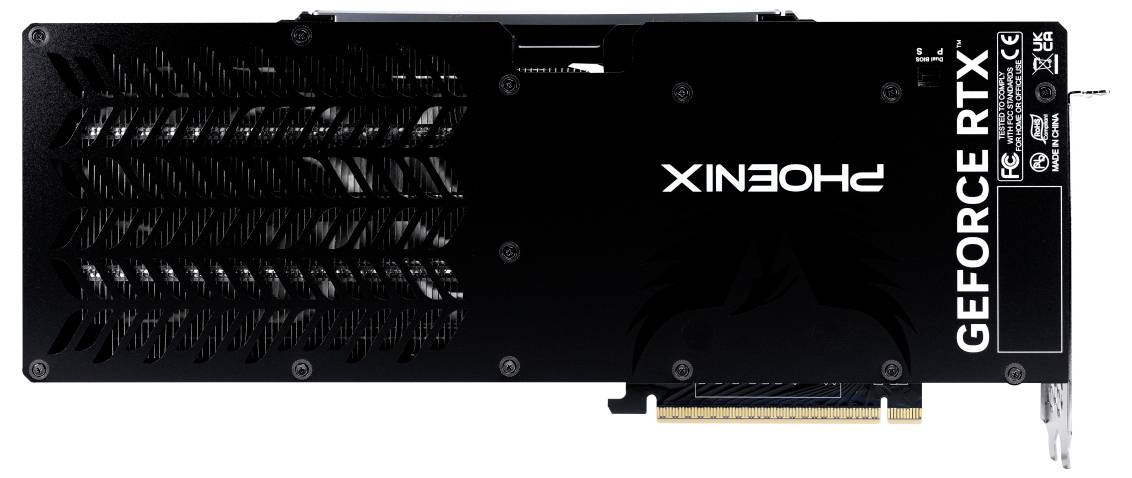

A black GeForce RTX graphics card with a Phoenix design, showing visible cooling vents and connection ports on the edges.

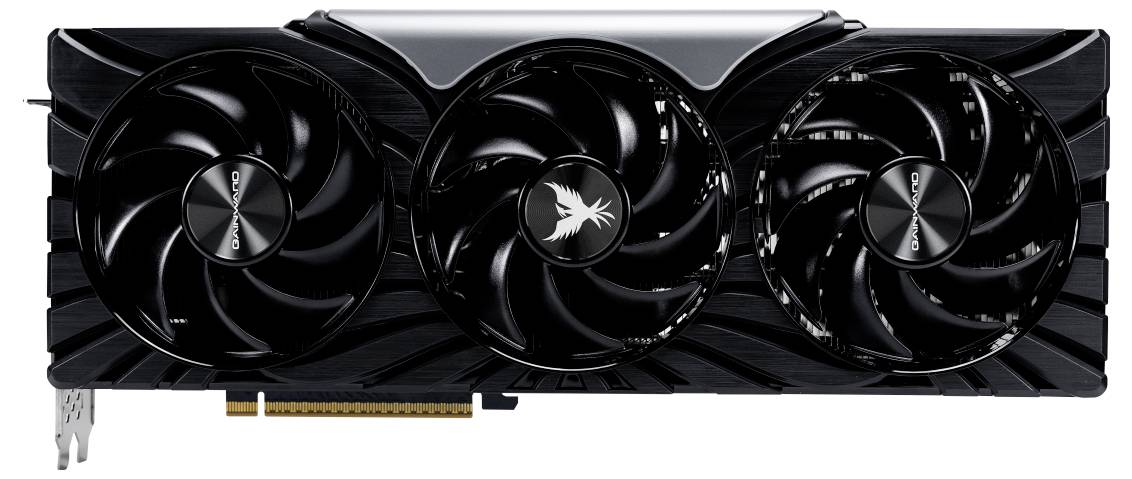

A graphics card with three cooling fans, black casing, and a gold PCIe connector edge on the bottom, viewed from the front.

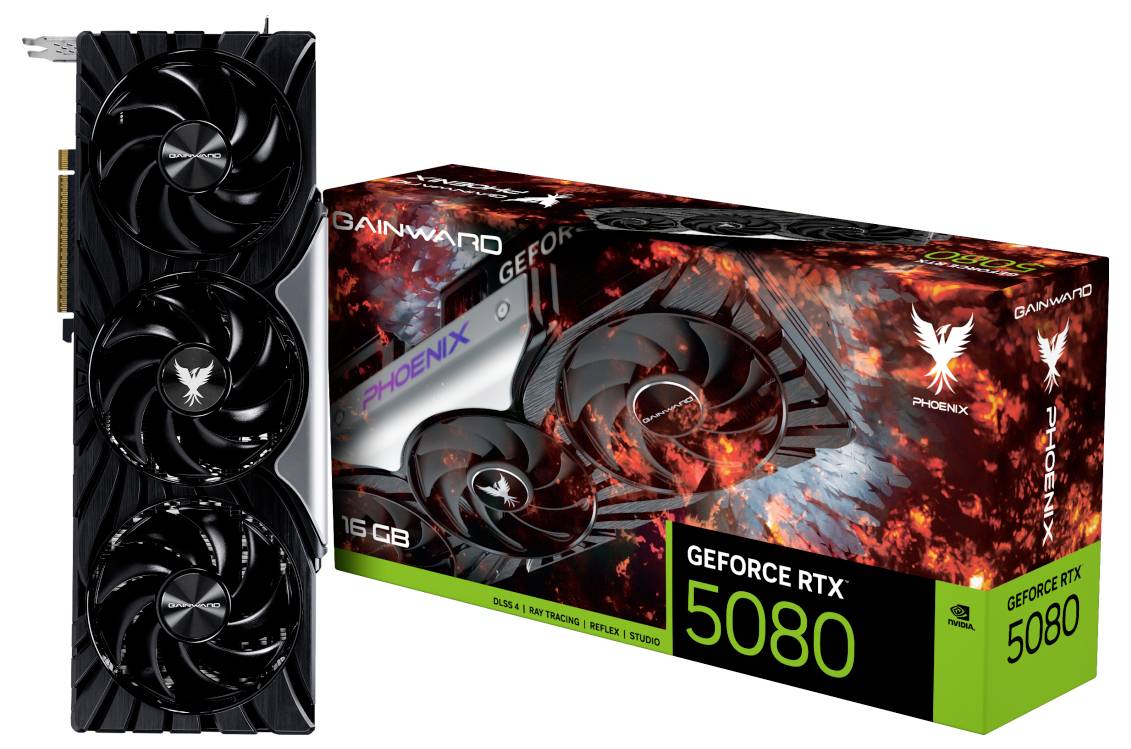

Graphics card and box of Gainward GeForce RTX 5080, Phoenix model with three cooling fans, 16 GB memory, vivid branding on the box.
1/11
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Gainward Graphics card Nvidia GeForce GeForce RTX 5080 Phoenix V1 16 GB GDDR7 RAM

  • GPU speed 2295 MHz GPU speed boost 2617 MHzNvidia GeForceRTX 5080
  • Interfaces PCI-Express, HDMI™, DisplayPort16 GBGDDR7 RAM with 15000 MHz

Technical specifications

  • Graphics card memory type: GDDR7
  • Data transfer rate 30 Gbps
  • HDMI version: 2.1b
  • Number of fans: 3 fans
  • Form factor: Full height/full length (FH/FL)
Product type

Graphics card

Graphics card type

Nvidia GeForce

GPU brand

NVIDIA

Graphics card type

RTX 5080

Range of use

GeForce RTX Gaming

Memory interface

256 Bit

16 GB

RAM type

GDDR7 RAM

Memory clock speed

15000 MHz

CPU speed

2295 MHz

GPU boost

2617 MHz

Display resolution

7680 x 4320 Pixel

System power supply (min.)

850 W

CUDA

Yes

Width

331.9 mm

Height

133.1 mm

Depth

60 mm

Cooling

Active

HDCP

Yes

Interfaces

PCI-Express

HDMI™

DisplayPort

Interface type

PCI Express 5.0

No. of HDMI ports

1 x

No. of DisplayPort

3 x

VR support

Yes

Christmas lighting features

12 Ultimate

NVIDIA G-SYNC

Yes

OpenGL version

4.6

Graphics card version

GeForce RTX 5080

Cable length

0 cm

Factory colour

Black

Silver

Keyboard layout

German, QWERTZ

Power consumption (max.)

360 W

UKCA

yes

Number of slots

3

Illumination

yes

NVIDIA G-SYNC

yes

TV tuner integrated

no

Dual Link DVI

no

Manual

yes

HDCP

yes

Memory bandwidth (max)

960 GB/s
