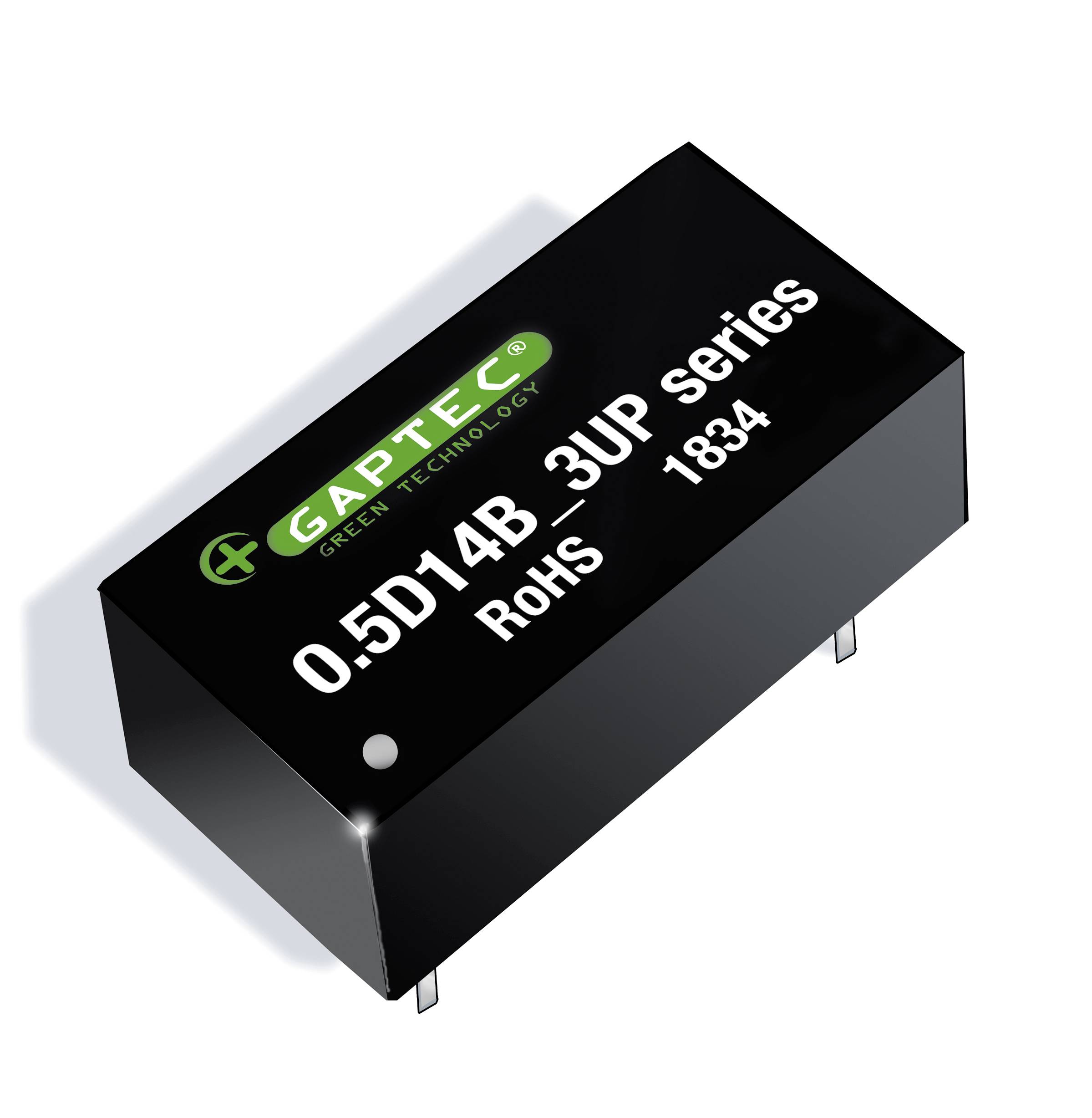

Image similar
Gaptec 0.5D14B_0505S3UP DC/DC converter 100 mA 0.5 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
0.5D14B_3UP
- Min. input voltage
4.4 V DC
- Input voltage (max.)
5.6 V DC
- Max. output current
100 mA
- Output current (max.) - rounded
100 mA
0.5 W
- Insulation voltage
3 kV
- Enclosure
DIP 14 (5-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 19.6 x 9.9 x 6.9 mm
- Height
6.9 mm
- Length
19.6 mm
- Width
9.9 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V DC
- Weight
2.1 g
- Content
1 pc(s)
- Efficiency
72 %
- Max. operating temperature (derating)
105 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3352294 Gaptec 0.5D14B_0505S3UP DC/DC converter 100 mA 0.5 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3352294 Gaptec 0.5D14B_0505S3UP DC/DC converter 100 mA 0.5 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 5V 100mA 4.4V - 5.6V input
