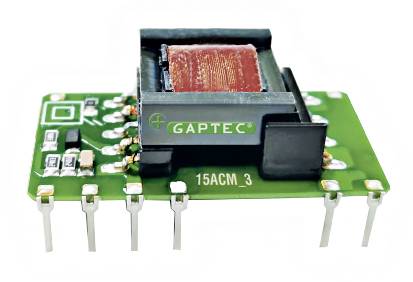

Image similar
Gaptec 15ACM_05S3 AC/DC converter 5 V DC 2.8 A 15 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Encapsulated AC-DC converter 1 Output 5V 2.8A 85 ~ 305 VAC, 100 ~ 430 VDC input
- Output 5 V DC / 2.8 A
- Power 15 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
305 V AC
430 V DC
- Max. output current
2.8 A
- Output current (max.) - rounded
2.8 A
- Min. input voltage
85 V AC
100 V DC
- Dim
(L x W x H) 44.5 x 15.0 x 24.0 mm
- Output voltage (max.)
5 V DC
15 W
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Weight
11 g
- Width
15.0 mm
- Height
24.0 mm
- Length
44.5 mm
- Type
15ACM_3
- Enclosure
SIP 16 (6-pin)
- Efficiency
77 %
Documents & Downloads
Datasheet
Datasheet 3352667 Gaptec 15ACM_05S3 AC/DC converter 5 V DC 2.8 A 15 W
User & Safety Instructions
User & Safety Instructions 3352667 Gaptec 15ACM_05S3 AC/DC converter 5 V DC 2.8 A 15 W
Description
Encapsulated AC-DC converter 1 Output 5V 2.8A 85 ~ 305 VAC, 100 ~ 430 VDC input
