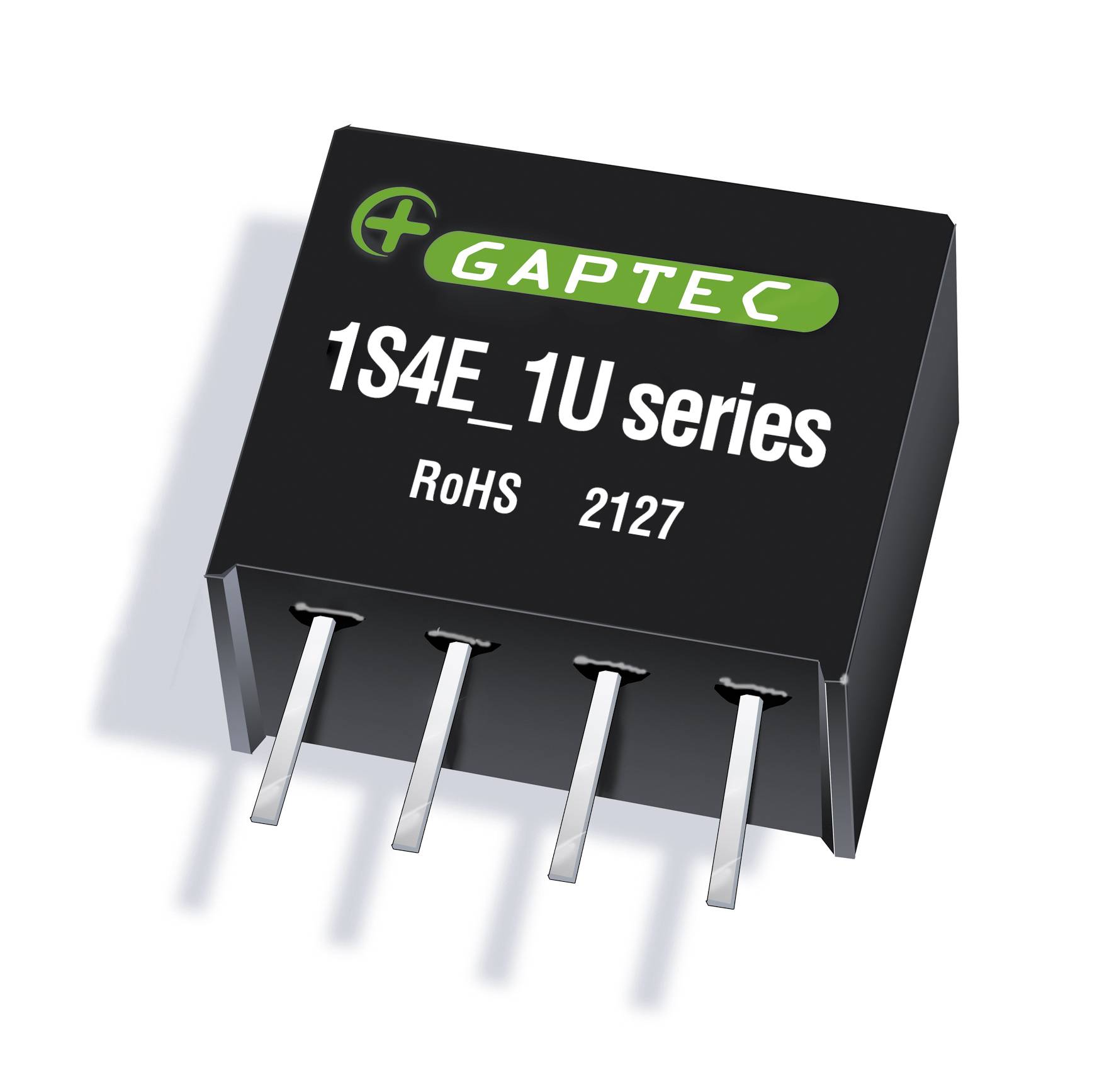

Gaptec 1S4E_2418S1U DC/DC converter 55.5 mA 1 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
1S4E_S1U
- Min. input voltage
21.6 V DC
- Input voltage (max.)
26.4 V DC
- Max. output current
55.5 mA
- Output current (max.) - rounded
55.5 mA
1 W
- Insulation voltage
1 kV
- Enclosure
DIP 7 (4-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 12.7 x 10.2 x 6.9 mm
- Height
6.9 mm
- Length
12.7 mm
- Width
10.2 mm
- RoHS-compliant
Yes
- Output voltage (max.)
18 V DC
- Weight
1.5 g
- Content
1 pc(s)
- Efficiency
80 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3353114 Gaptec 1S4E_2418S1U DC/DC converter 55.5 mA 1 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 18V 55.5mA 21.6V - 26.4V input
